MB3 Connection Diagram

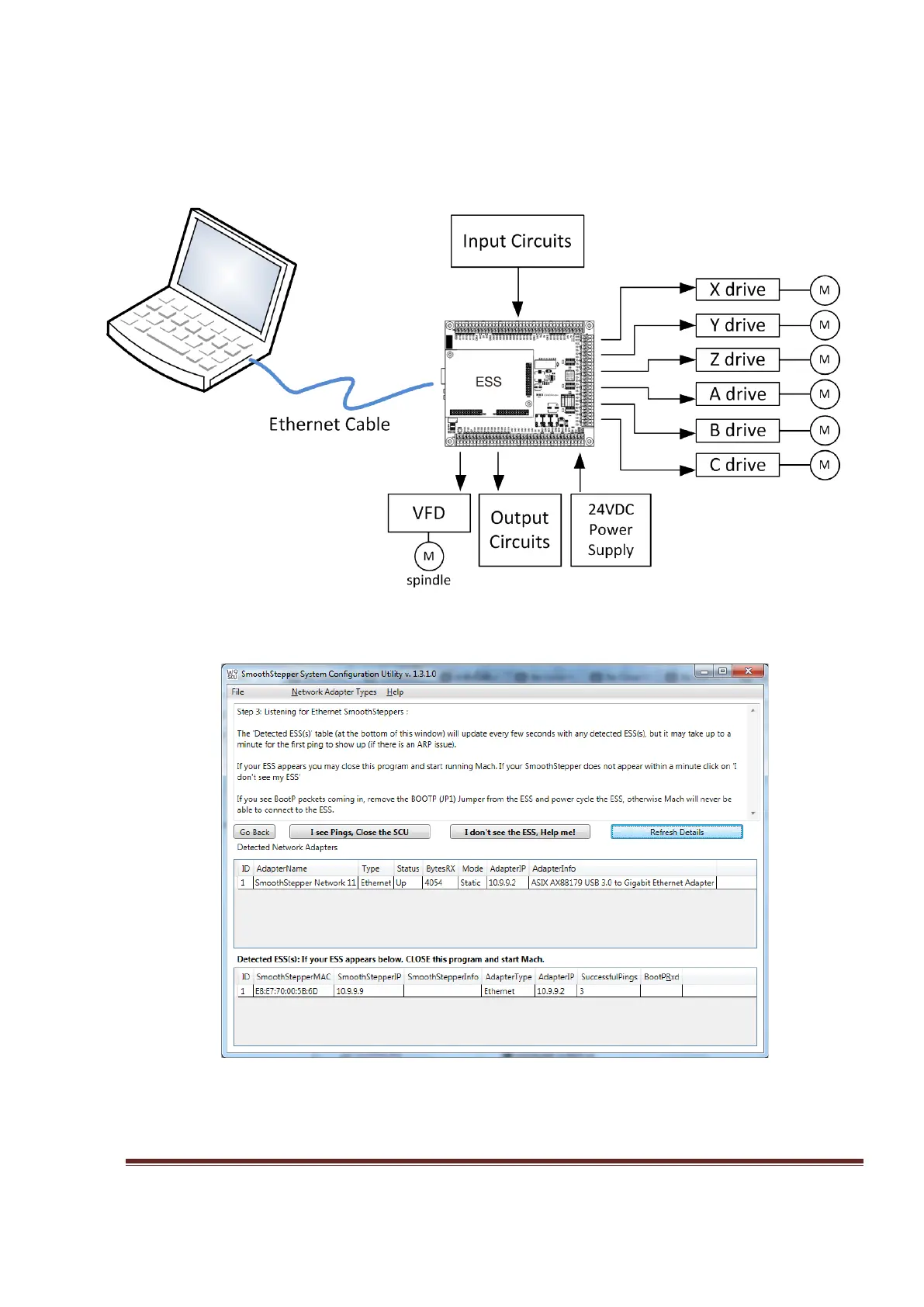

Figure 4, Connection Diagram
Figure 5, SCU utility successfully connected to the ESS.
The SCU software utility helps the user to configure Windows PC to communicate with ESS
easily. Below is the link to SCU tutorial video.
www.CNCRoom.com Page 9
