[*10]. Free Terminals
In some circumstances, the user may need a few extra terminals for their work. This
can be achieved by cutting or de-soldering one or more of the bridges at the
respective terminals. These free terminals are only meant for use with low voltage,
nothing over 24V.

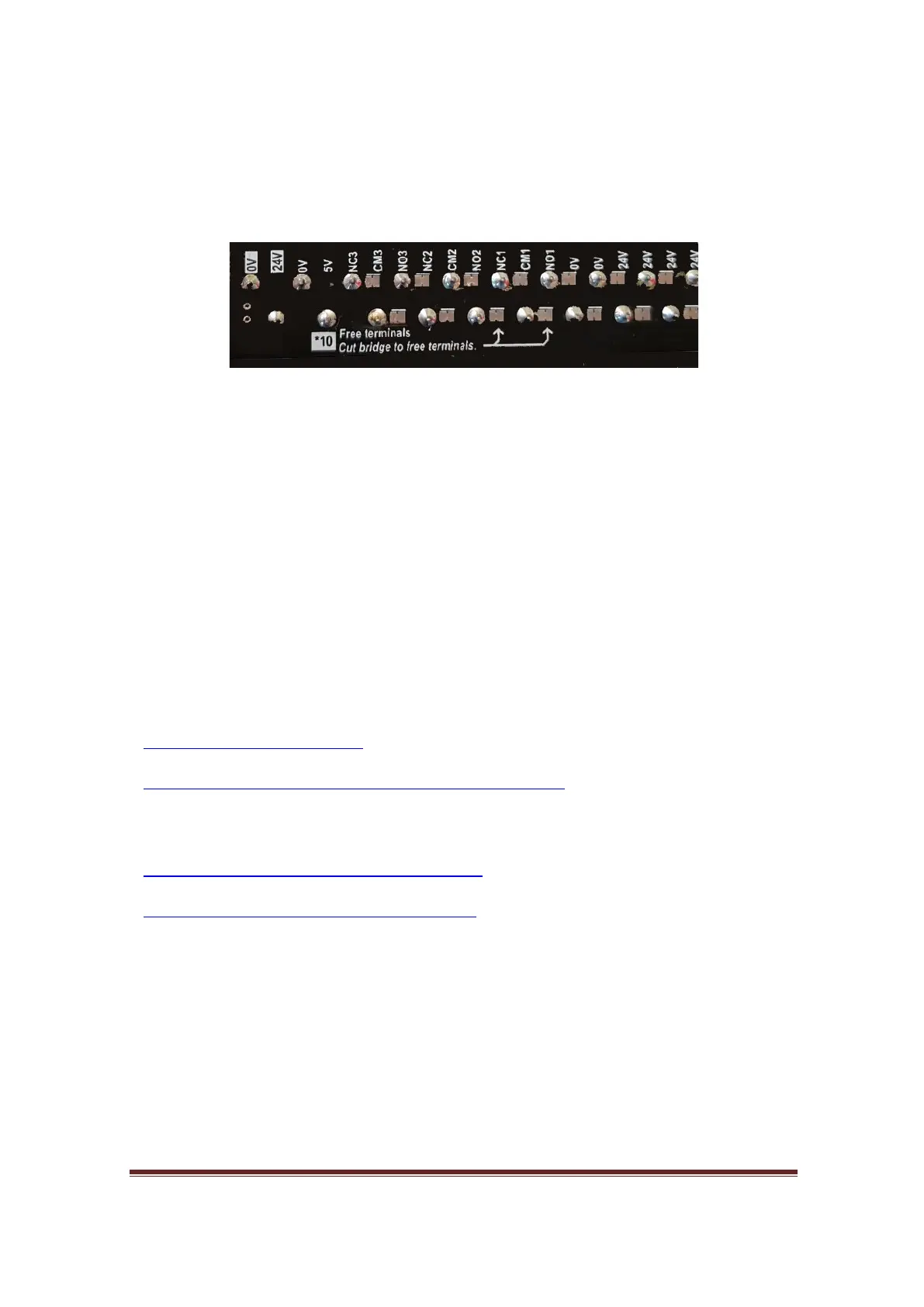

Figure 35, solder bridges at terminal pin
Software
The user can obtain up to date software, plugins and tutorials from the following links.
http://warp9td.com/index.php/sw
http://www.youtube.com/channel/UCpg3EROtW8xA_KzrFHgn4ZQ
The user also can obtain the MB3 pre configuration file from the product link below.
https://www.cncroom.com/interface-cards/mb3
https://www.cncroom.com/interface-cards/ess-mb3
Mach3 Configuration
The user can obtain the pre configuration XML file and copy it to their system.
However, there are some values that need to be set to suit individual applications.
www.CNCRoom.com Page 27
