Appendix I MB3 Specifications
Dimensions 130 x 155 mm (height x width)
Supply voltage 24V (18-28Vdc ), 500mA
Supply voltage ripple ≤ 5%
Transistor Outputs Yxxx NPN, Sink 5-24Vdc, 70mA Max
Relay contact ON1, ON2, ON3 0.5A 120Vac, 1A 24Vdc
Analog output AO 0-10V ( Error ±1.2% between 1-10V)*
Inputs type NPN/PNP
Inputs voltage level 5/24Vdc
Inputs response X1xx, X2xx 14.37khz / 69.58us / 862,200 index rpm*
Inputs response X3xx 28.5khz / 35.08us / 1,710,000 index rpm*
Ambient operating temperature 0-40°C
*Tested on Mach4

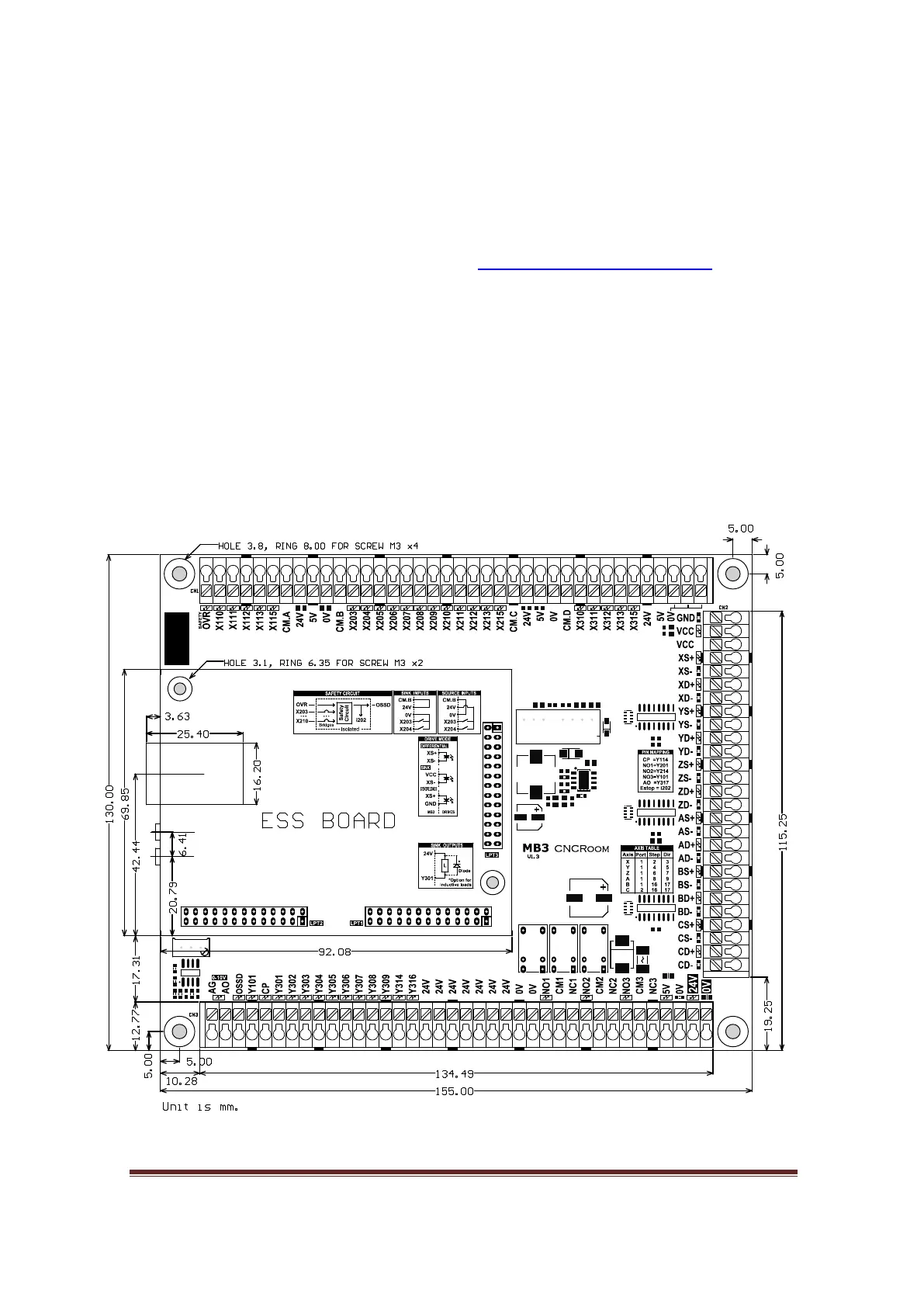

Appendix II MB3 Board Dimensions
www.CNCRoom.com Page 53
