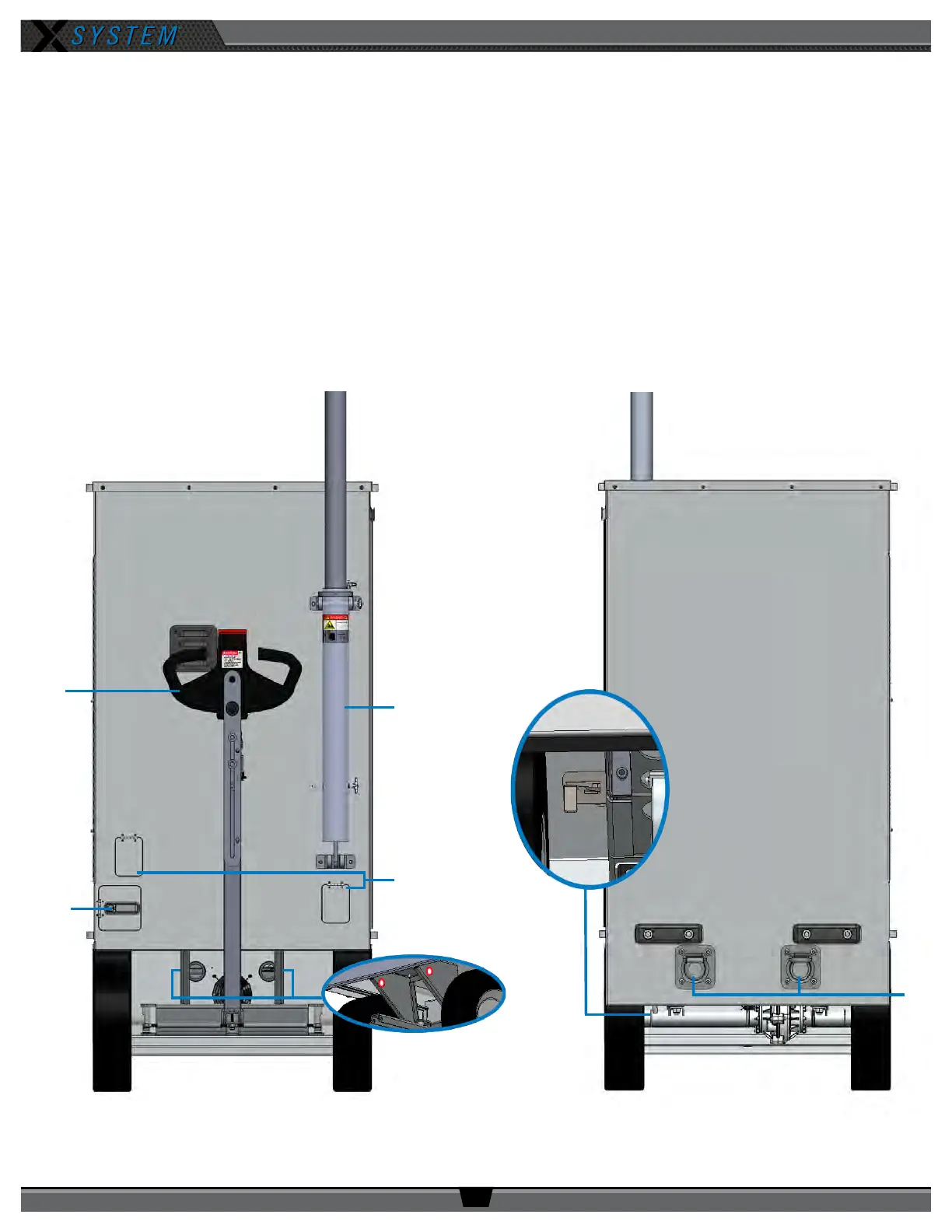

Side Views
A. Drive System Handle
B. Mast Tube - Houses the RT mast when in use (See page 64 for more information.)
C. Cable Hatch - Access point for cables through side of cart
D. Mast Storage - Houses the RT mast when not in use
E. Left Tie Down Points - When transporting the cart in a truck, secure straps to the two provided tie-down holes on
the vertical frame of the cart’s axle.
F. Brake Lever - Determines the behavior of the Drive System magnetic brake
G. Right Tie Down Points - When transporting the cart in a truck, secure straps to the two provided tie-down rings
on the cart’s right side.
A
B
C
D
E
Figure 18: Sideline Cart Left Side View
F
G
Figure 19: Sideline Cart Right Side View
