SAILOR XTR Ka system
98-175666-A Chapter 1: Introduction 1-6
Modules in the ADU (60 cm)
1. GNSS module (GPS, GLONASS, BEIDOU).
2. XTR Antenna Control Module (ACM).
3. ADU power on/off.
4. Cross elevation motor.
5. Elevation motor.
6. Ka-band transceiver.
7. Inertial Sensor Module (ISM).

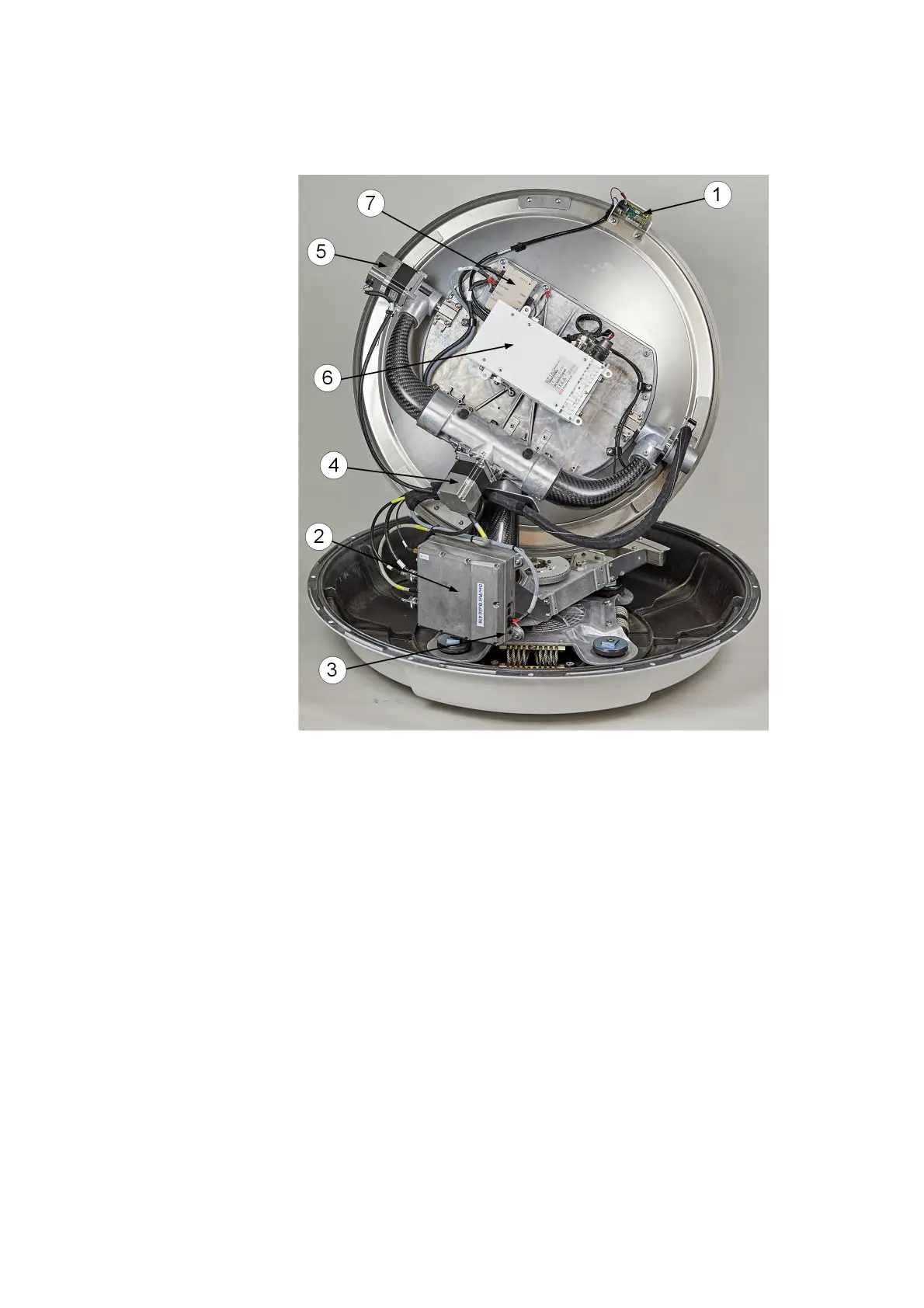

Figure 1-5: SAILOR XTR Ka (60 cm): ADU modules 1/2
