98-175666-A Chapter 4: Setup of the antenna 4-32
Manual One Touch Commissioning (OTC)
When the modem starts up for the first time it will automatically register with the BUC and
perform P1dB compression on multiple frequencies and thereafter register with the
network. During the P1dB compression the antenna will point away from the satellite and
transmit on 950 MHz to 1950 MHz in 50 MHz steps. The ACU will show BUC calibration
on the DASHBOARD and the ACU display. This may take up to 10 minutes.
If a new cable calibration is made, the BDU displays the warning BUC calibration
outdated. Then you must make a manual OTC.
To make a manual OTC for the modem, do as follows:
1. Connect a PC to the service port on the front panel of the BDU.
2. Enter the web interface (via Firefox browser) and go to SERVICE > Modem.
3. At Modem access click the link.
4. Type the user name admin (default) and the password iDirect (default).
5. In the menu Commissioning click One Touch Commissioning.
WARNING! For your safety: Active RF transmission may occur during an
OTC procedure. Software updates may also occur, yet the system is in receive-
only mode during such auto-updates.
You must use the Internet browser Firefox.

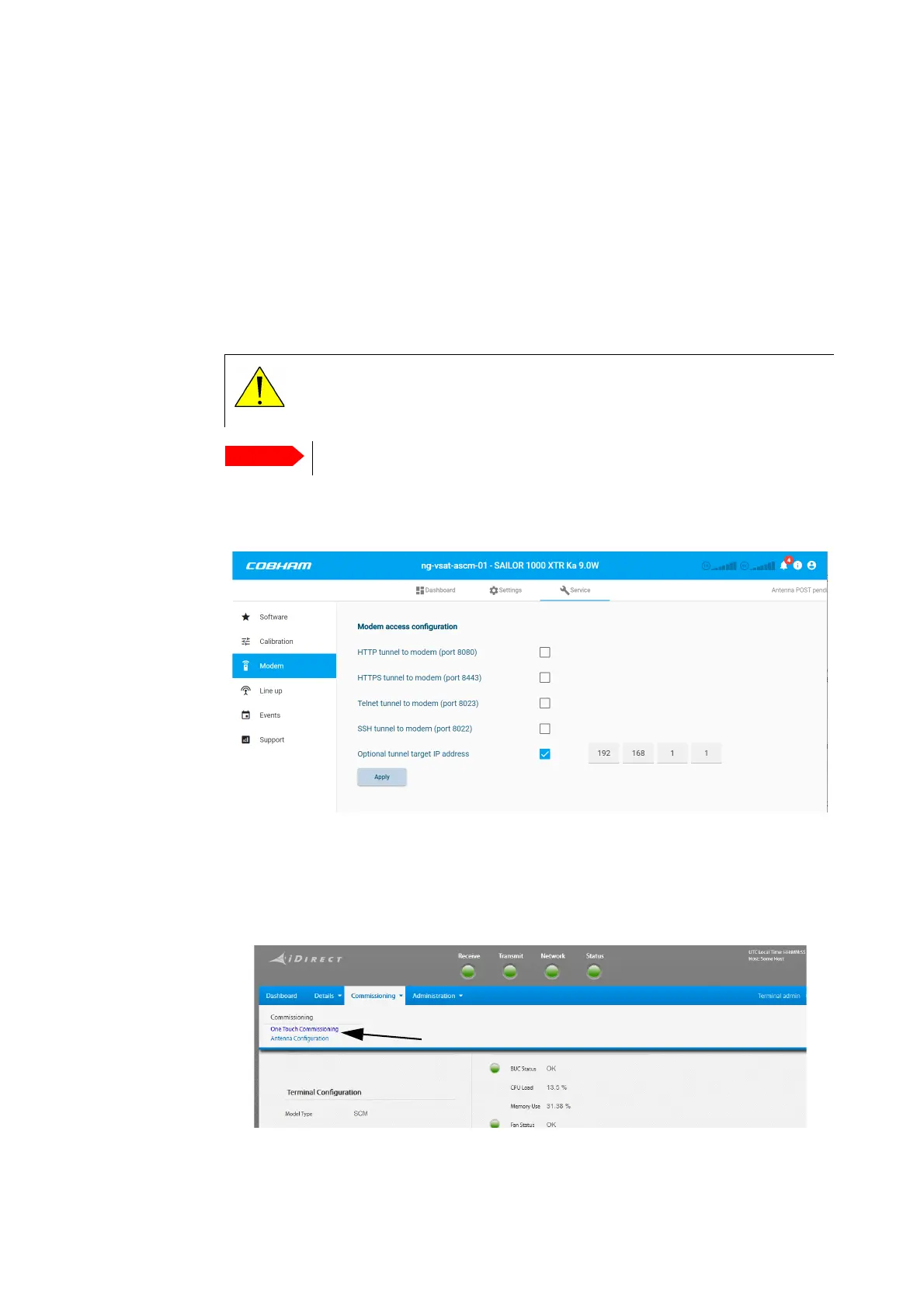

Figure 4-25: Web interface: SERVICE > Modem
Figure 4-26: Unified web interface of the Core Module
