98-175666-A v
transmitters on page 2-16 – it may cause damage to the antenna.
Compass Safe Distance:
SAILOR 1000 XTR Ka 4.5W and 9.0W antenna (ADU): min. 140 cm (IEC 60945).
SAILOR 7516A BDU (Below Deck Control Unit): min. 30 cm (IEC 60945).
SAILOR 7023A GMU (GX Modem Unit): min. 40 cm (IEC 60945).
SAILOR 600 XTR Ka (60 cm)
Microwave radiation hazards
During operation the antenna in this system radiates
Microwave Power.This radiation may be hazardous to
humans close to the antenna. During transmission, make sure
that nobody gets closer than the recommended minimum
safety distance.

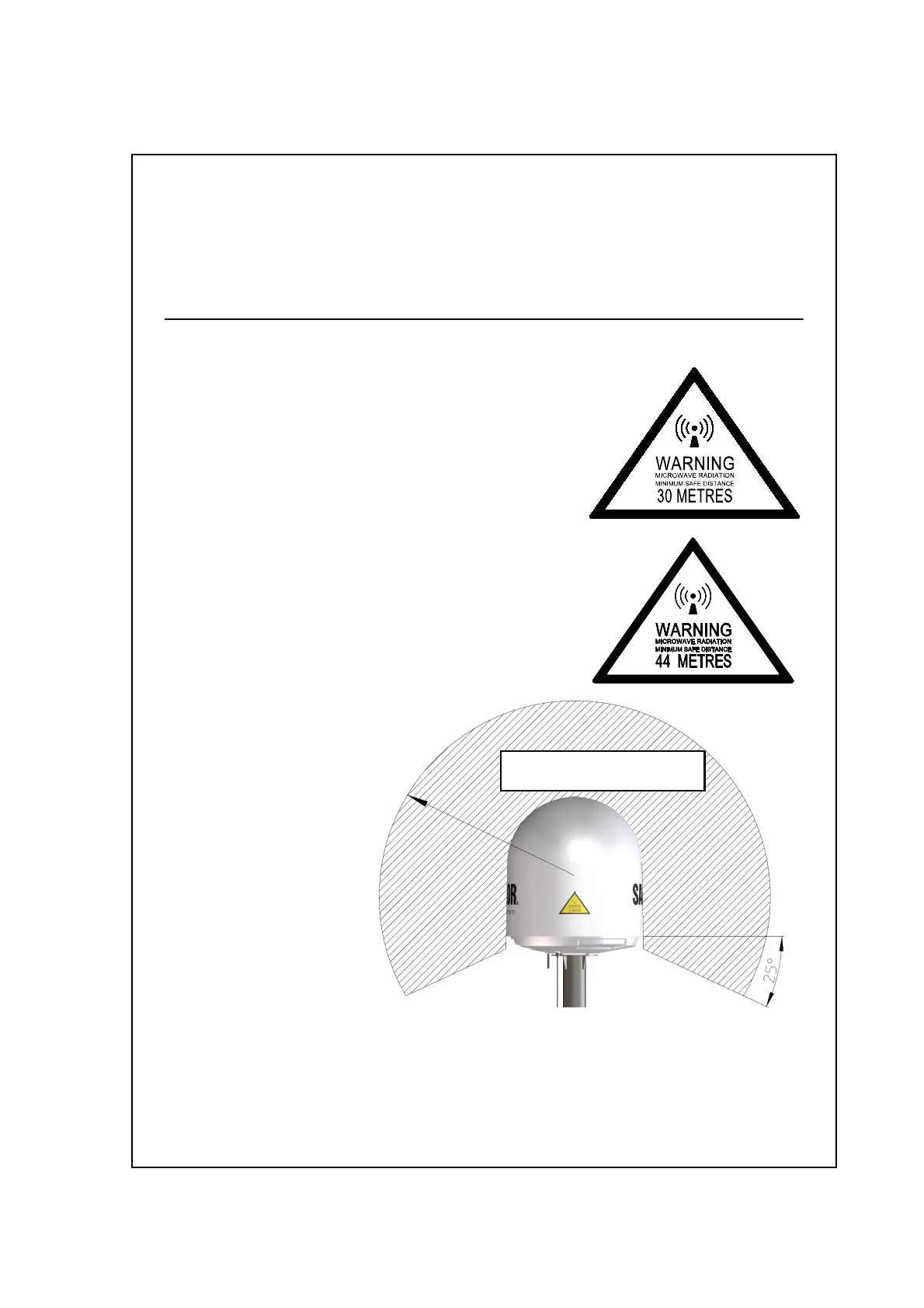

The minimum safety distance to the antenna reflector on the
focal line is 30 m for SAILOR XTR Ka 4.5W, and 44 m for
SAILOR XTR Ka 9.0W, based on a radiation level of 10 W/m
2
.
No hazard exists >28° below the antenna’s mounting plane.
Refer to the drawing below.
No-transmit zones
In order to protect
personnel no-transmit
zones can be programmed.
For further information see
Blocking zones with
azimuth and elevation on
page 3-5.
Distance to other
equipment
Do not move the antenna
closer to radars than the
minimum safe distance
specified in section
Interference from radar,
GPS, L-band and other
transmitters on page 3-13
– it may cause damage to
the Above Deck Unit.
MICROWAVE RADIATION
No personnel within safety distance
28°
