Installation of the ADU (100 cm)
98-175666-A Chapter 2: Installation 2-21
• Important: Maintain the vertical orientation of the ADU center line.
•Always use all 4 bolts when installing the ADU.
You do not need to align the ADU with the bow-to-stern line of the ship. When configuring
the SAILOR XTR Ka you make an automated azimuth calibration to obtain the correct
azimuth of the ADU.
Installation procedure
To install the ADU, do as follows:
1. Install the mast with the mast flange and have the 4 M10 bolts ready.
2. Undo all shipping buckles, take off the wooden top and remove the casing.
3. Remove the wooden platform.
4. Attach a webbed, four-part sling with a belt to all 4 lifting brackets.
5. Attach 2 tag lines of suitable length to 2 lifting brackets and man them.

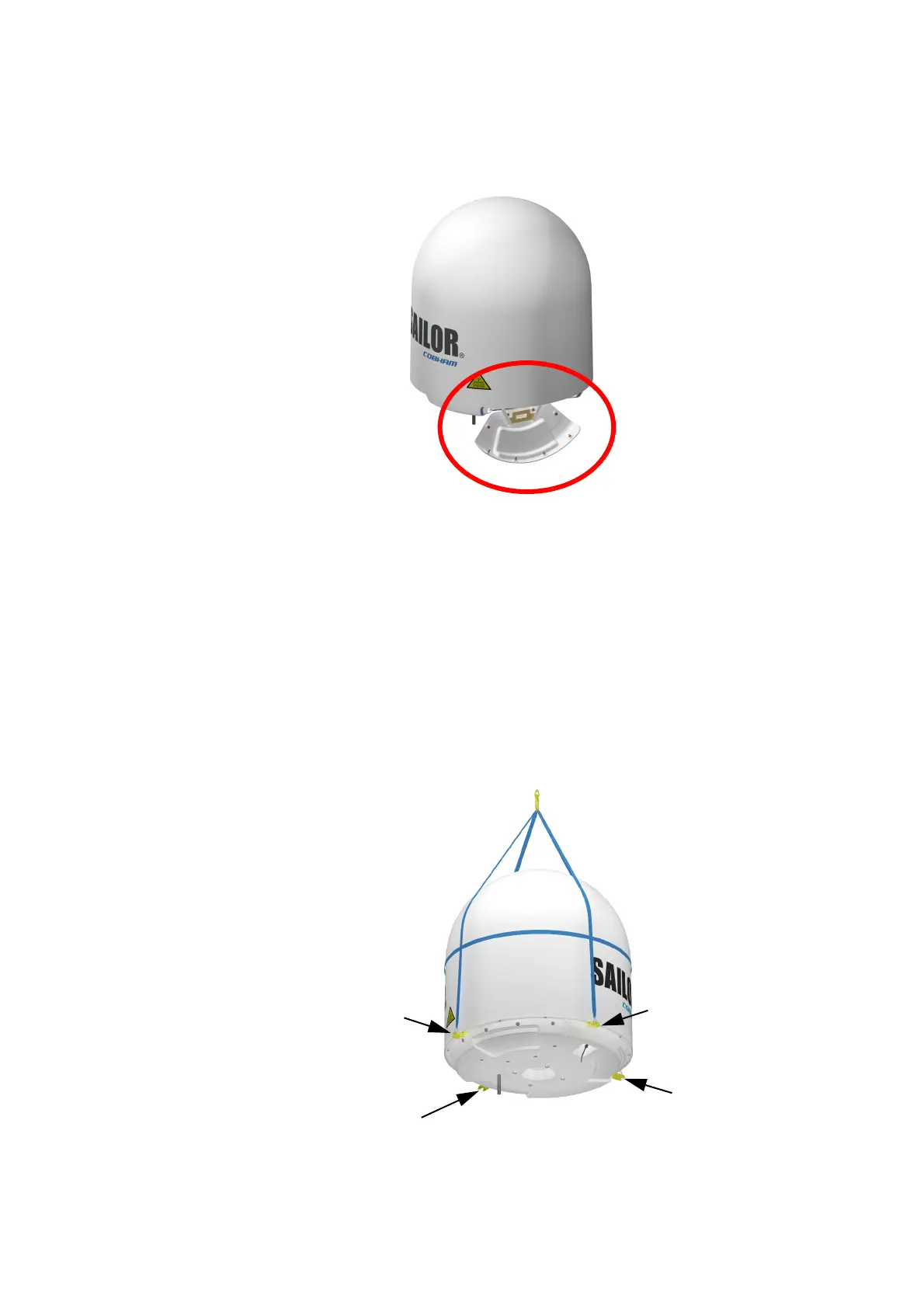

Figure 2-21: Free space for access to the service hatch
Figure 2-22: ADU installation, webbed sling attached to the 4 lifting brackets
