13 Transport Condition and Method
1. Arrange the equipment according to clause 1 ~ 5 of 2.5 Dealing for Nonuse for S80 in this
manual.
2. Disconnect the power supply and unplug all external connection wires and pipes behind the
equipment, and pack the removed wires and pipes.
3. Separate the feeding platform from the host, pay attention to the data wire harness between
the feeding platform and the host, and disconnect the data wire connection.
4. Prepare the original packaging boxes and foam boxes of the equipment.
5. Place the foam box on the bottom of the packing box first.

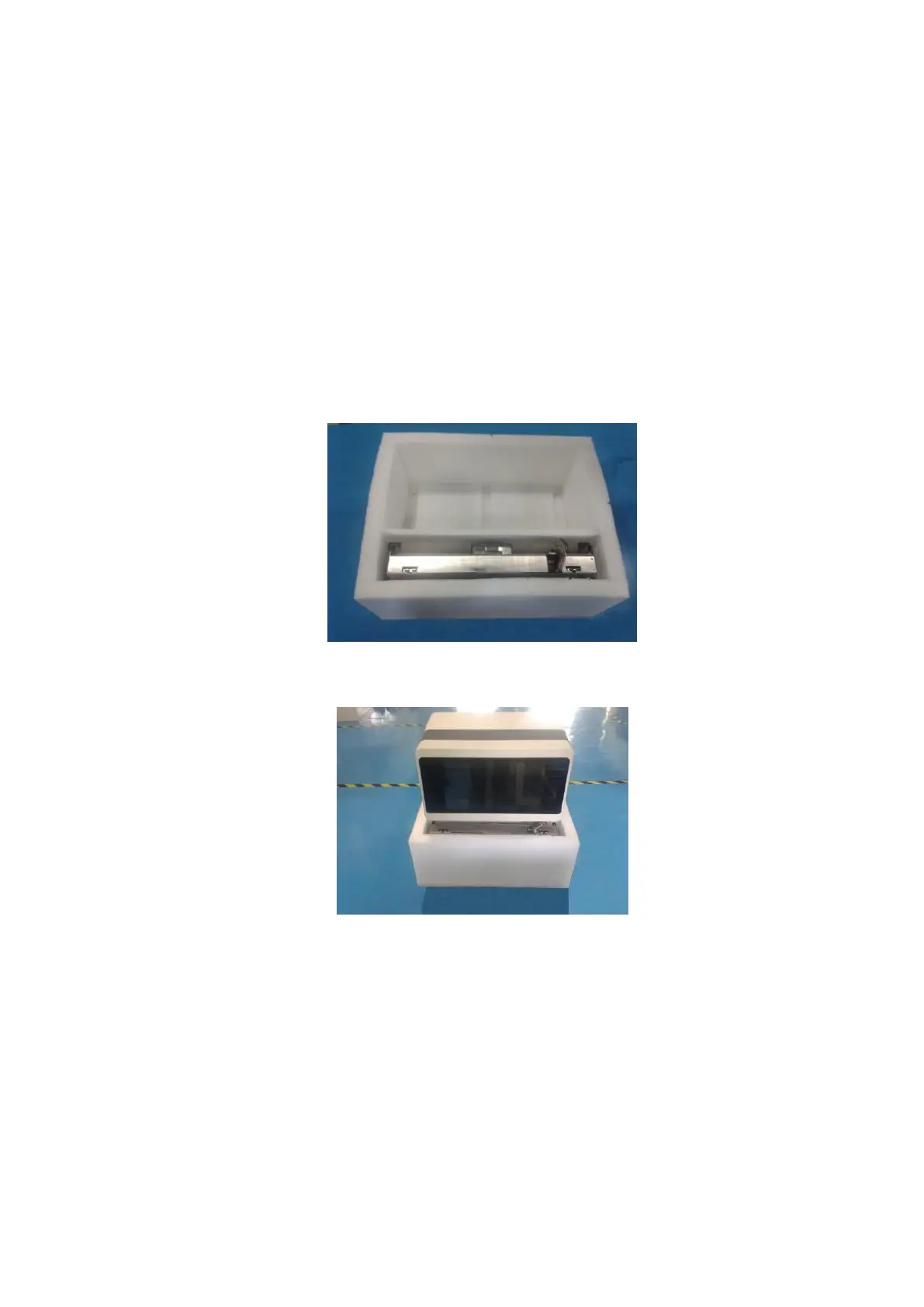

6. Put the feeding platform into the foam box. See the figure below.
Figure 13-1
7. Load the device host into the foam box. See the figure below.
Figure 13-2
8. Close the foam cover and cover the packing box. See the figure below.
