Manpack T
ransceiver 21
10
series Getting St
arted Guide
15
CODAN
2
Y
our 21
10
series Manp
ack
T
ransceiver
The 21
10
series Manpack T
ransceiver has a range of
accessories that are used in diff
erent situations.
The following
photographs are provided
to help
you identify the transceiver
and its typical accessories.

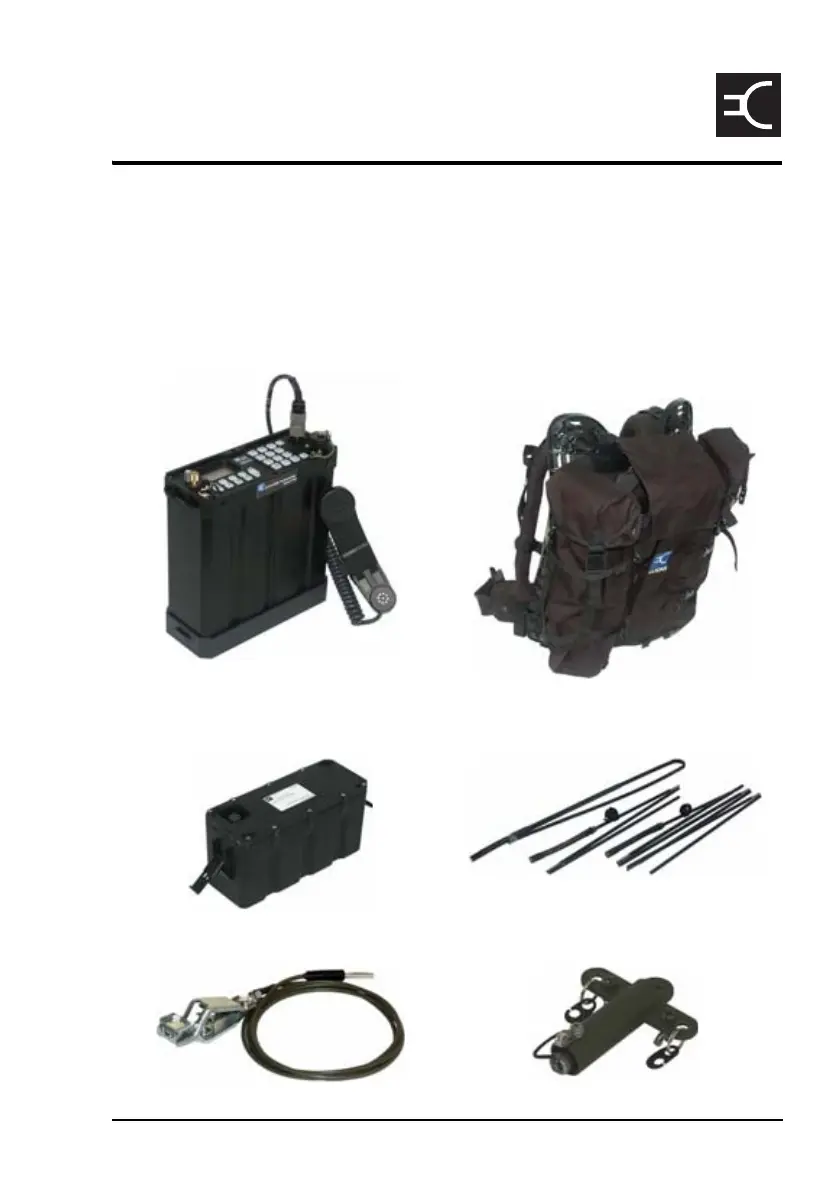

T
ransceiver with handset
Backpacks
(internal frame,
soft pack)
Battery packs
(NiMH, SLA)
Whip ant
ennas
(tape, knock-dow
n, collapsible)
Earth lead with clip and plug
Balun
24
26
Table of Contents
Default Chapter
3
Table of Contents
3
Overview of this Guide
11
Accessing the CD
12
2110 Series Manpack Transceiver Compliance
13
Introduction
14
European Radio and Telecommunications Terminal Equipment Directive
15
Electromagnetic Compatibility and Safety Notices
17
Table 1: Earth Symbol
19
FCC Compliance
20
C-Tick Approval
21
Care and Safety Information
22
Table 2: Storage Times for Battery Packs
22
2 Your 2110 Series Manpack Transceiver
25
3 Preparing the Transceiver for Use
29
Charging a Battery Pack
30
Figure 1: Typical Front Panel of a Battery Charger
31
Table 3: Typical Charging Times for Codan Battery Packs
31
Table 4: LED Indications
32
Connecting a Battery Pack to the Transceiver
37
Figure 2: Transceiver with Battery Pack Connected
37
Inserting the Transceiver into a Backpack
38
Selecting an Appropriate Tactical Antenna
39
Table 5: Selection Guide for Tactical Antennas
39
4 The Front Panel
41
Overview
41
Figure 3: the Front Panel (2110 Model Shown)
41
User Controls
42
Antennas
43
Interface Connectors
43
Hot Keys
44
Table 6: Standard Hot Keys
44
The Channel Screen
46
Figure 4: the Channel Screen in the Channel List
46
Battery Status Indicator
47
Figure 5: Battery Status Indicator
47
The Handset
49
Figure 6: the Handset
49
5 Getting Started
52
Switching on the Transceiver
52
Switching off the Transceiver
52
Setting up Basics
53
Selecting a Channel
54
Making a Basic Voice Call
55
Making a Selective Call
56
Scanning Channels
59
Switching Scanning on or off
59
Pausing Scanning
60
6 Troubleshooting
61
Table 7: General Troubleshooting
62
Appendix A-Entering and Editing Text
63
Editing a Screen
63
Entering Text
64
Changing between Alpha and Numeric Characters
65
Moving the Cursor
65
Inserting Text
66
Deleting Text
66
Saving Text Changes
66
Appendix B-Using Quick Start
67
Appendix C-Using a GPS Receiver
75
Appendix D-Transceiver Specifications
77
Table 8: 2110 Series Manpack Transceiver Specifications
77
Appendix E-Hf Radio Transmission
79
Frequency, Distance and Time of Day
80
Figure 7: the Reflective Properties of the Ionosphere
80
Antenna Selection
81
Channels and Modes
81
Networks and Scanning
82
Table 9: Examples of Channels and Modes
82
Etiquette for the Use of HF Radio
83
Table 10: the Phonetic Alphabet
84
Appendix F-Definitions
85
Standards and Icons
85
Acronyms and Abbreviations
86
Glossary
88
Units
93
Unit Multipliers
94
About this Issue
95
Appendix G-Warranties
97
Index
99
