Preparing the transceiver for use
Manpack Transceiver 2110 series Getting Started Guide 27
Connecting a battery pack to the
transceiver
The battery pack is connected to the bottom of the transceiver.
It is held in place by clips with locking key latches (see
Figure 2).

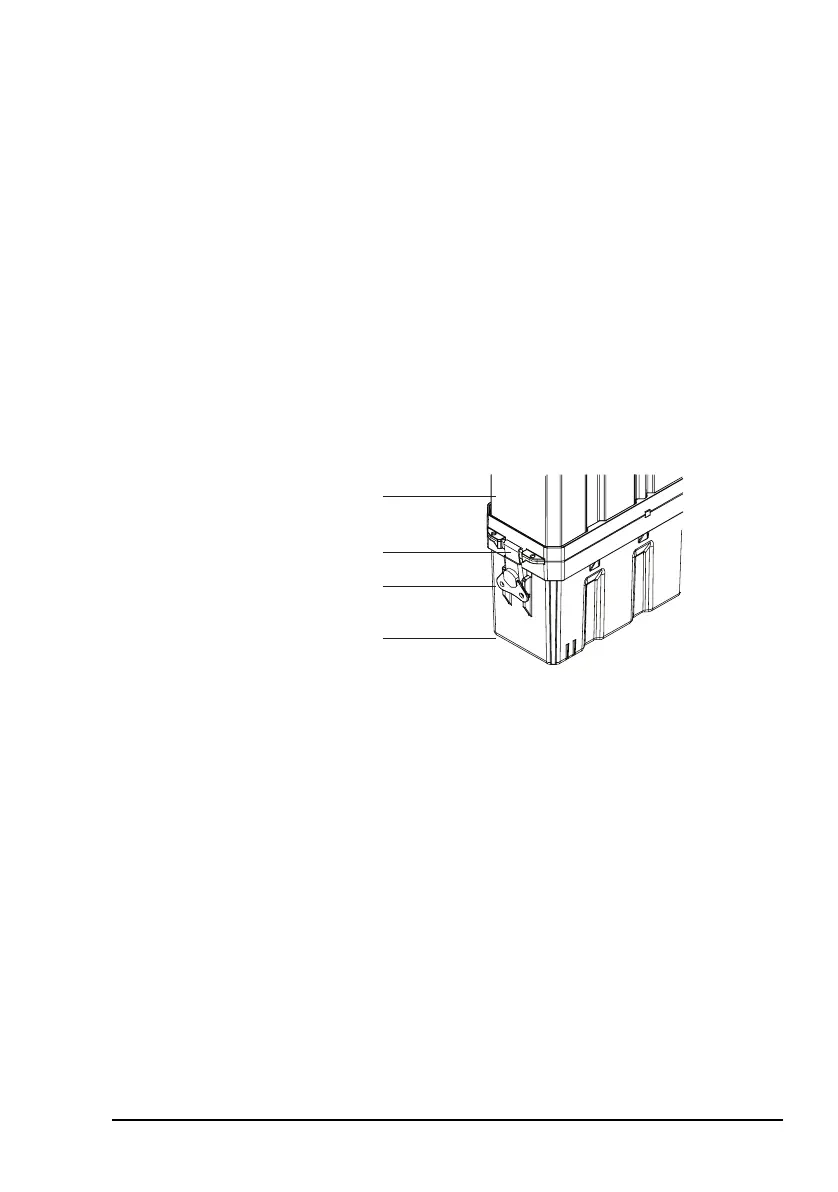

Figure 2: Transceiver with battery pack connected
NOTE
The battery connector on the base of the
transceiver is on the same side of the transceiver
as the antenna connectors on the front panel.
key
clip
transceiver
battery pack
