Manpack Transceiver 2110 series Getting Started Guide 65
CODAN
Appendix C—Using a GPS
receiver
When an internal GPS receiver is fitted, the GPS antenna is
located behind the front panel of the transceiver (see
Figure 3 on page 31). In order to obtain reliable and accurate
GPS information, you should ensure that the front panel of the
transceiver is pointed toward the sky and is not shadowed by
overhead obstructions. An external GPS receiver may be
connected via the 19-way connector (2110 only) if, for
example, it is installed in a vehicle cradle.
If you have the GPS option installed and enabled, you can
view your own position, and the distance and bearing to
remote transceivers from which you have received a position.
To access GPS information:

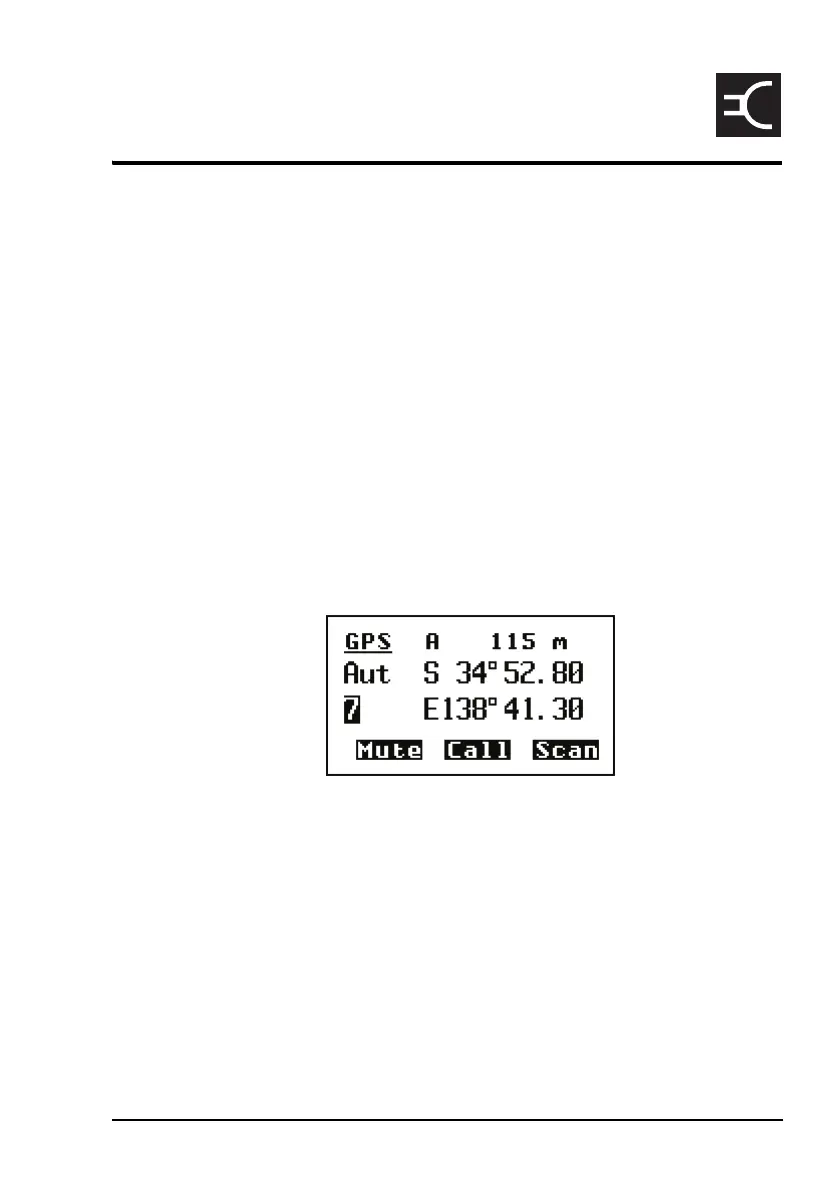

1 Press GPS to see the GPS screen.
