CR2 User’s Manual Draft_022803_AS - 2
CR2 User’s Manual Draft_022803_AS - 3

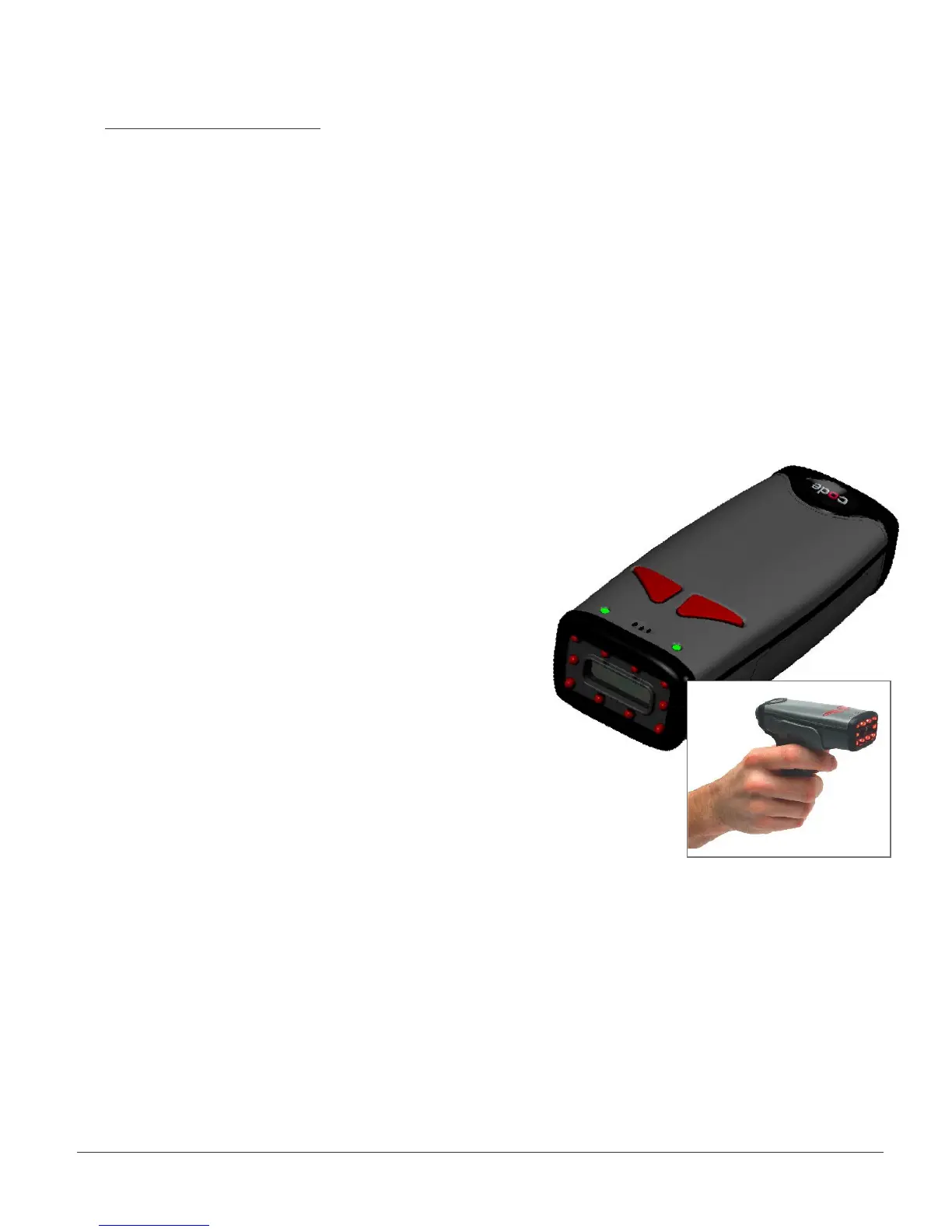

CR2 is a revolutionary new, bar code reader. Developed to be the rst universal reader,
no other single device performs as many functions. With a cost of ownership far less than
comparable systems, the CR2 incorporates a unique dual path optical system, a 1.3 million
pixel CMOS sensor, and a 400 MHz processor. This combination has created a reading
system that supports:
• High density matrix codes and larger low density linear codes
• Superior working range
• High-speed omni-directional decoding
• Cordless and cabled interfaces
• Unsurpassed data rates
• Linux OS (OEM version)
The CR2 sets a new benchmark for size and weight.
It is smaller and lighter than comparable systems
yet can withstand multiple drops to concrete. It is the
only product available in handheld, gun handle, and
presentation stand form factors with cabled, batch
and cordless versions. The cordless version utilizes
the latest Bluetooth™ class 1 radio with a 300 foot
operating range. The CR2 is rugged and lightweight
and the cordless version will operate for more than
a complete shift at the highest use rate. The CR2
performs more than 3000 reads and transmits from a
single battery charge.CR2 will automatically
discriminate between all major 2-D matrix and linear
bar code symbologies and features a timestamp
feature for logging data.
Whether you need a small, palm-held device or a traditional gun, CR2 was specically
developed so users may easily choose the device that best meets their needs. The CR2
is available in three (3) basic congurations:
• CR2 Cabled - USB or RS-232 interfaces
• CR2 Batch - Store and forward device with memory and long-life battery
• CR2 Cordless - Long life battery and Bluetooth radio
1.1 - Introduction
