Technical Manual CODEL
10

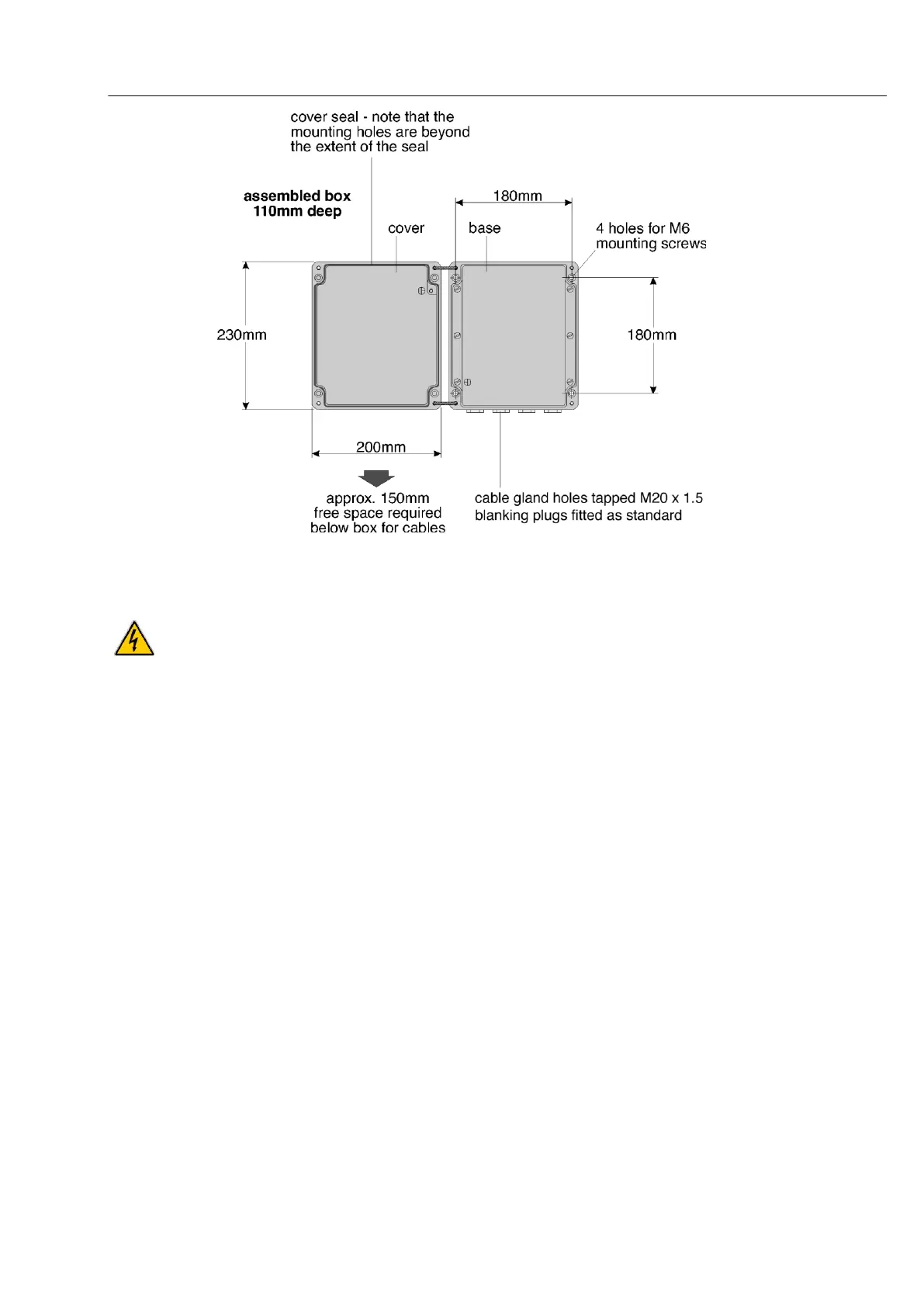

Figure 6 : PSU ā€“ arrangement
4.2.
Connections
Wiring should only be undertaken by a qualified technician.
The following electrical schematic illustrates the connections for the Tunnel Tech 700 Series system.
