5.1. Select Channel: Allows user to select a channel to be displayed. The
following are the submenus.
Select Unit
E-Cell CH1
E-Cell CH2
E-Cell CH3
Vis %
Vis_k
Vis_m
Multi-gas
Exit
5.1.1. E-Cell CH1: Displays E-Cell CH1 data (e.g. CO)
Use or to scroll through to E-Cell CH1 and press to select E-
Cell CH1. The Display returns to measurement screen displaying E-Cell
CH1 reading.
5.2. E-Cell CH2: Displays E-Cell CH2 data (e.g. NO)
Use or to scroll through to E-Cell CH2 and press to select E-
Cell CH2. The display returns to measurement screen displaying E-Cell
CH2 reading.
5.3. E-Cell CH3: Displays E-Cell CH3 data (e.g. NO2)
Use or to scroll through to E-Cell CH3 and press to select E-
Cell CH3. The display returns to measurement screen displaying E-Cell
CH3 measurement.
5.4. Vis%: Displays opacity measurement data.
Use or to scroll through to Vis% and press to select Vis%.
The display returns to measurement screen displaying Vis%
measurement.

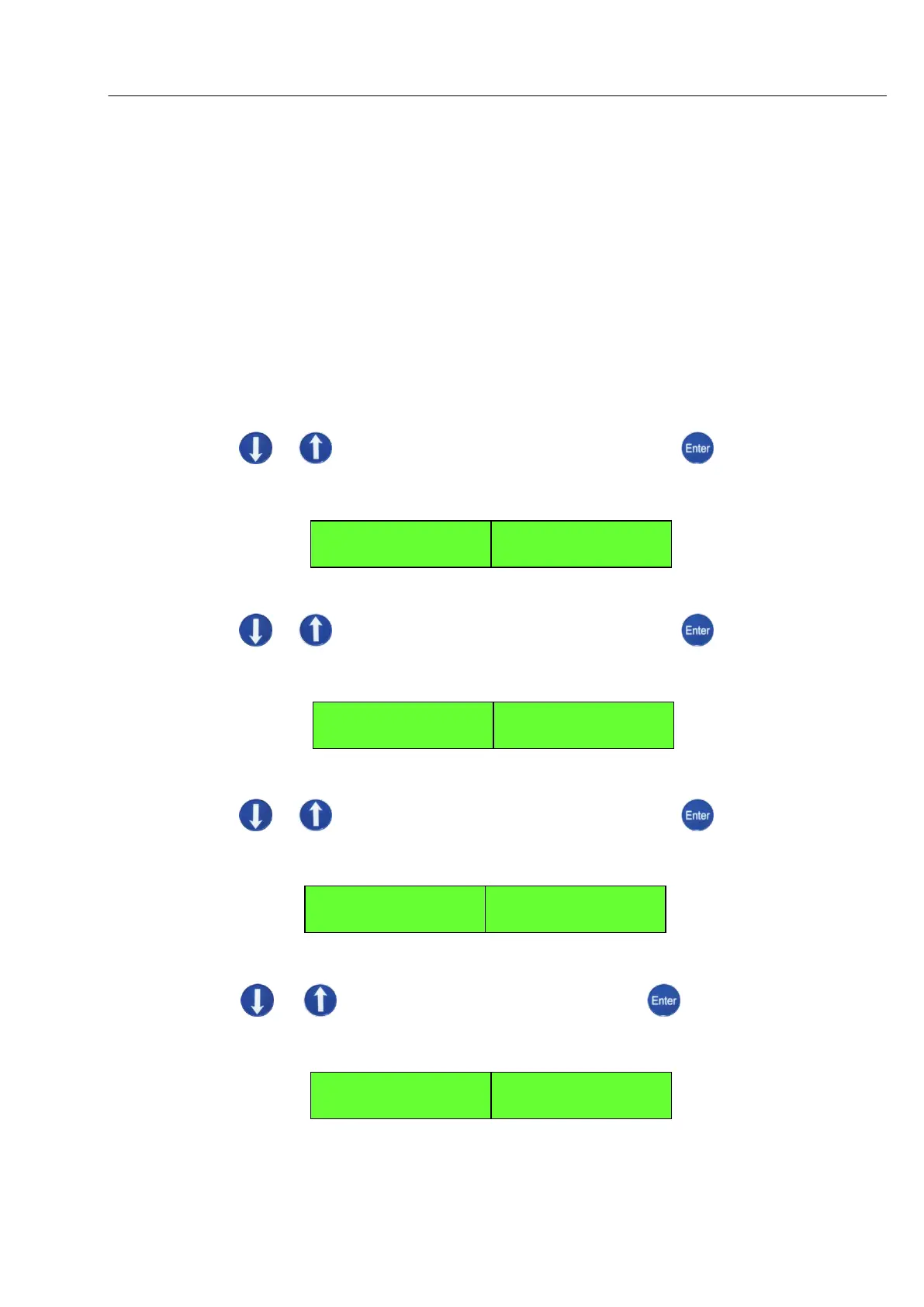

Select Channel
E-Cell CH1
1. Meas – 09:34:50
CO: 0.1 ppm
Select Channel
E-Cell CH2
1. Meas – 09:35:45
NO: 1.4 ppm
Select Channel
E-Cell CH3
1. Meas – 09:36:15
NO2: 3.1 ppb
1. Meas – 09:37:26
Vis: 0.10%
