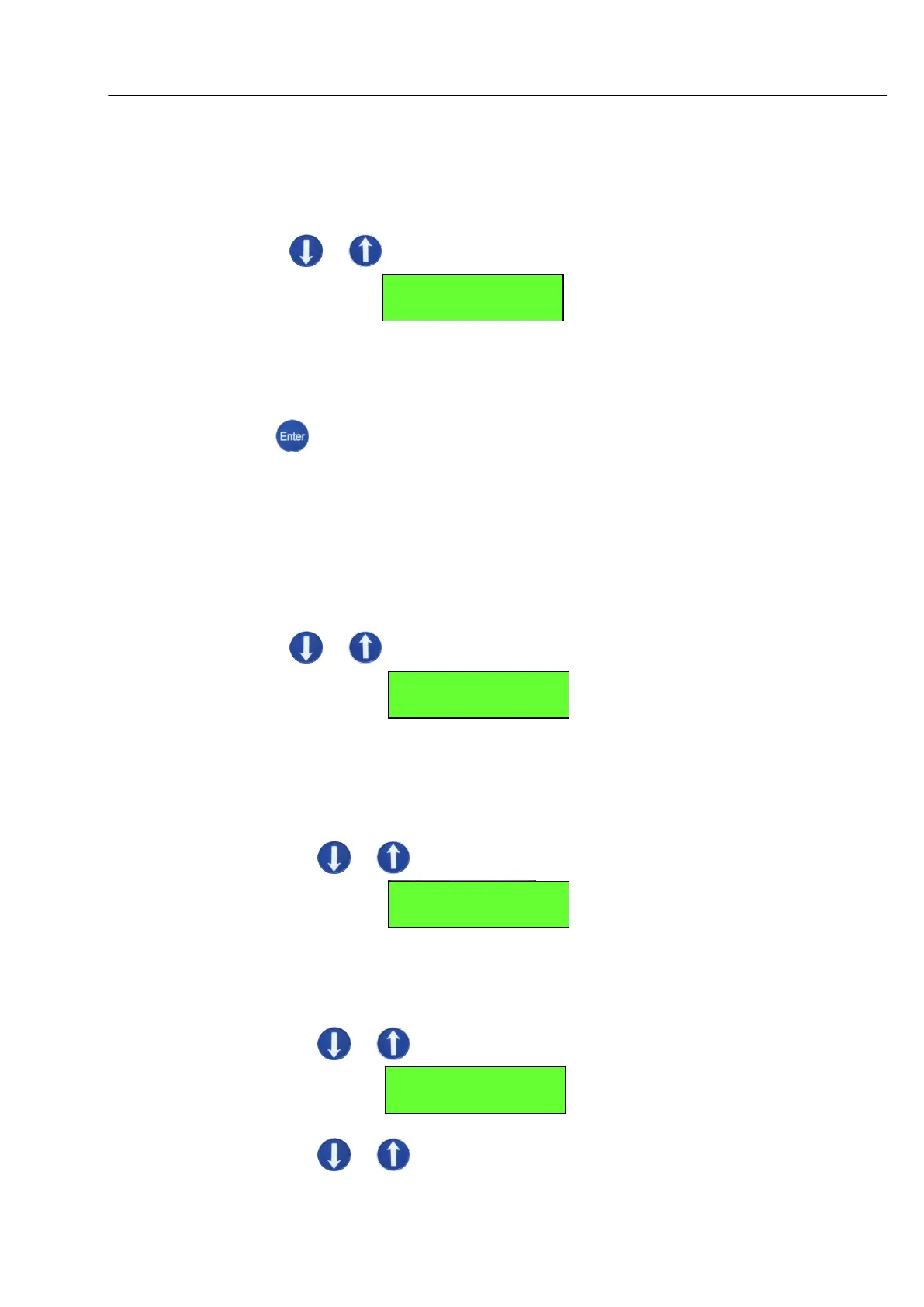

Technical Manual CODEL
41
10 is the date
02 is the month
16 is the year
6.1.5. Target Board: Displays the Circuit Board information that Software
Version on the instrument supports.
Use or to scroll through to Target Board.
Example of target board number format in screen shot “803441A” red
as
“803-441” is the circuit board number.
“A” is the board revision.
6.1.6. Press to exit from ID submenu.
6.2. Comms: These are Serial Communication and communication protocol
settings on the instrument and are read only. The following are submenus.
Comms
Comms (B, D, P, S)
Protocols
Comms Address
Use or to scroll through to Comms.
6.2.1. Comms (B, D, P, S): Displays serial communication parameters.
B - Baud Rate.
D - Data Bits
P - Parity
S - Stop Bits
Use or to scroll through to Comms.
In the above screenshot baud rate is 9600, Data bits are 8,
Parity is 0 and Stop bits are 1.
6.2.2. Protocols: Displays communication protocol used to communicate to
the instrument.
Use or to scroll through to Protocols
6.2.3. Comms Address: Is the communication address of the instrument.
Use or to scroll through Comms Address.
Target Board:
803441A
2. Parameters
2.2. COMMS
Comms (B,D,P,S):
9600,8,0,1
Protocols:
CODEL
