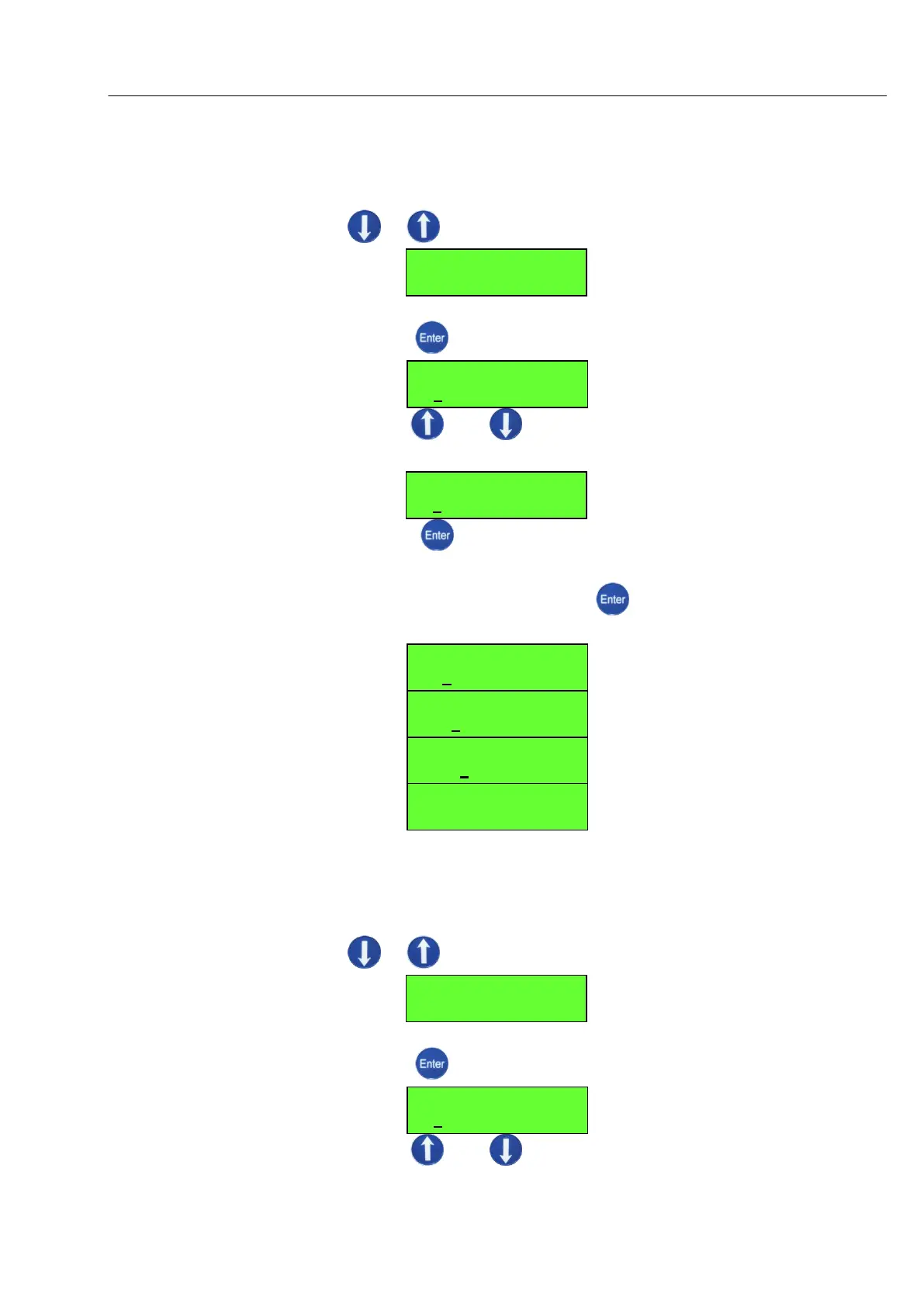

8.4.6. Zero: Allows user to set up range for Zero mA. The following are the
submenus.
 Zero
 Set Zero
 Use or to scroll through to Zero submenu.
8.4.6.1. Set Zero: Allows user to set range for Zero mA.
 Press to access and set up range for Zero mA.
 Use or to change the zero range in
hexadecimal.
 Press to move cursor to next most significant
digit. Repeat above procedure to increment and
decrement and finally press to set Zero range and
exit.
8.4.7. 4mA DAC: Allows user to set up range for 4mA DAC. The following are
the submenus.
 4mA DAC
 Set 4mA DAC
 Use or to scroll through to 4mA DAC submenu.
8.4.7.1. Set Zero: Allows user to set range for 4mA DAC.
 Press to access and set up range for 4mA DAC.
 Use or to change the zero range in
hexadecimal.
Zero:
0x0000
Set Zero:
0x0000
Set Zero:
0x0000
Set Zero:
0x0000
Set Zero:
0x0000
Set Zero:
0x0000
Set Zero:
0x0000
4mA DAC
0x0000
Set 4mA DAC
0x0000
