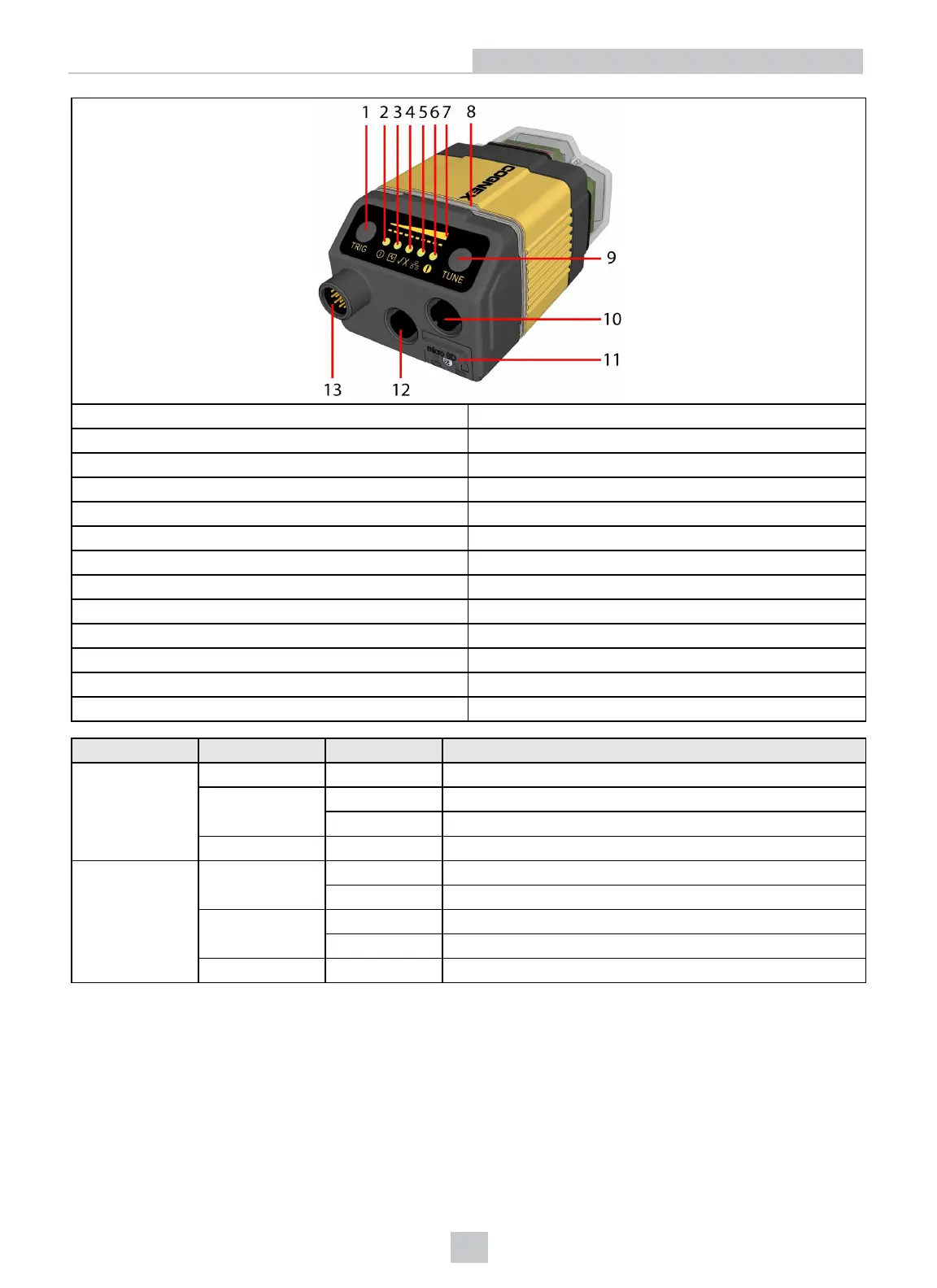

1 Trigger button
2 Power
3 Train status
4 Good/bad read
5 Network
6 Error
7 Peak meter
8 Indicator light ring
9 Tuning button
10 Ethernet
11 SD card slot
12 External light control
13 Power, I/O and RS232
Type Signal Color Meaning
Status
Power GREEN Power ON
Train status
GREEN Trained
YELLOW Untrained
Error RED Error - check device log
Action
Good/bad read
GREEN Good read
RED Bad read
Communication
YELLOW Link up
blink Activity
Peak meter - Decode yield, train progress/quality
14
Setting Up Your DataMan 360
