Cognex DataMan 362X - Reading Distance and Field of View (Dataman 360 Readers with a 25 MM Lens)

Distances in mm DM360
DM362 DM363
250 43 68 73
500 87 139 148
1000 175 281 298
Reading Distance and Field of View (DataMan 360 Readers with a 25 mm
Lens)

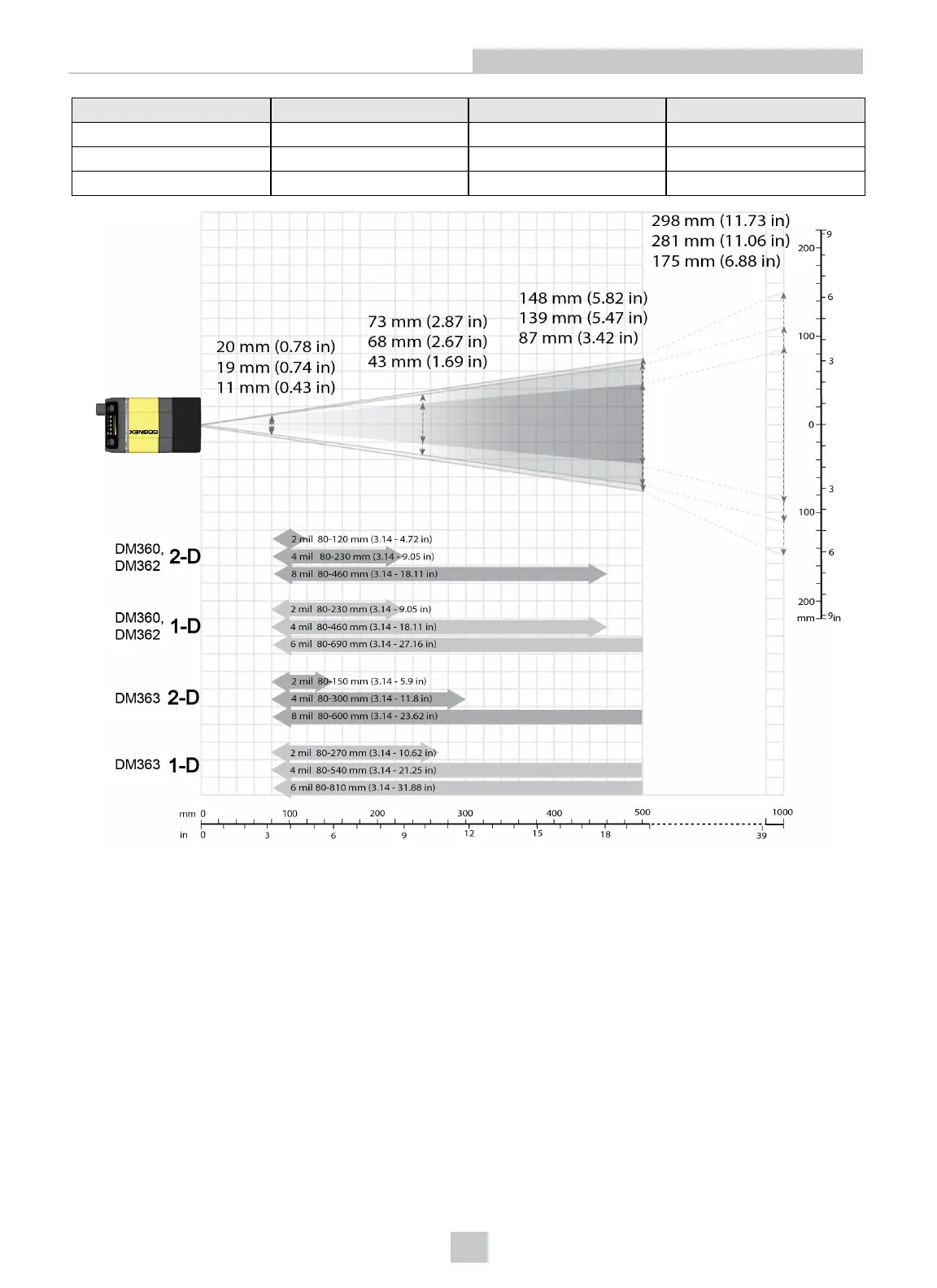

The following map shows the FoV of the DataMan 360 series readers with a 25 mm lens (with or without a liquid lens).
The FoV values are shown as follows:
l outer: DM362, DM363
l inner: DM360
The reading distances for the DM360 and DM362 readers are the same. DM363 features a higher resolution and more
pixels in about the same sensor size.
The following table shows the FoV widths in mm at various distances.
38
Setting Up Your DataMan 360
