Connections, Optics, and Lighting
This section contains descriptions about the external light control, I/O Cables, high-speed outputs, high-speed output
wiring, Ethernet M12 to RJ45 cable, and acquisition trigger.
External Light Control (CCB-M12XFLY-05)
A 4-pin cable is provided for the external light control. The External Light cable is used to connect to an external lighting
device, providing power and strobe control.

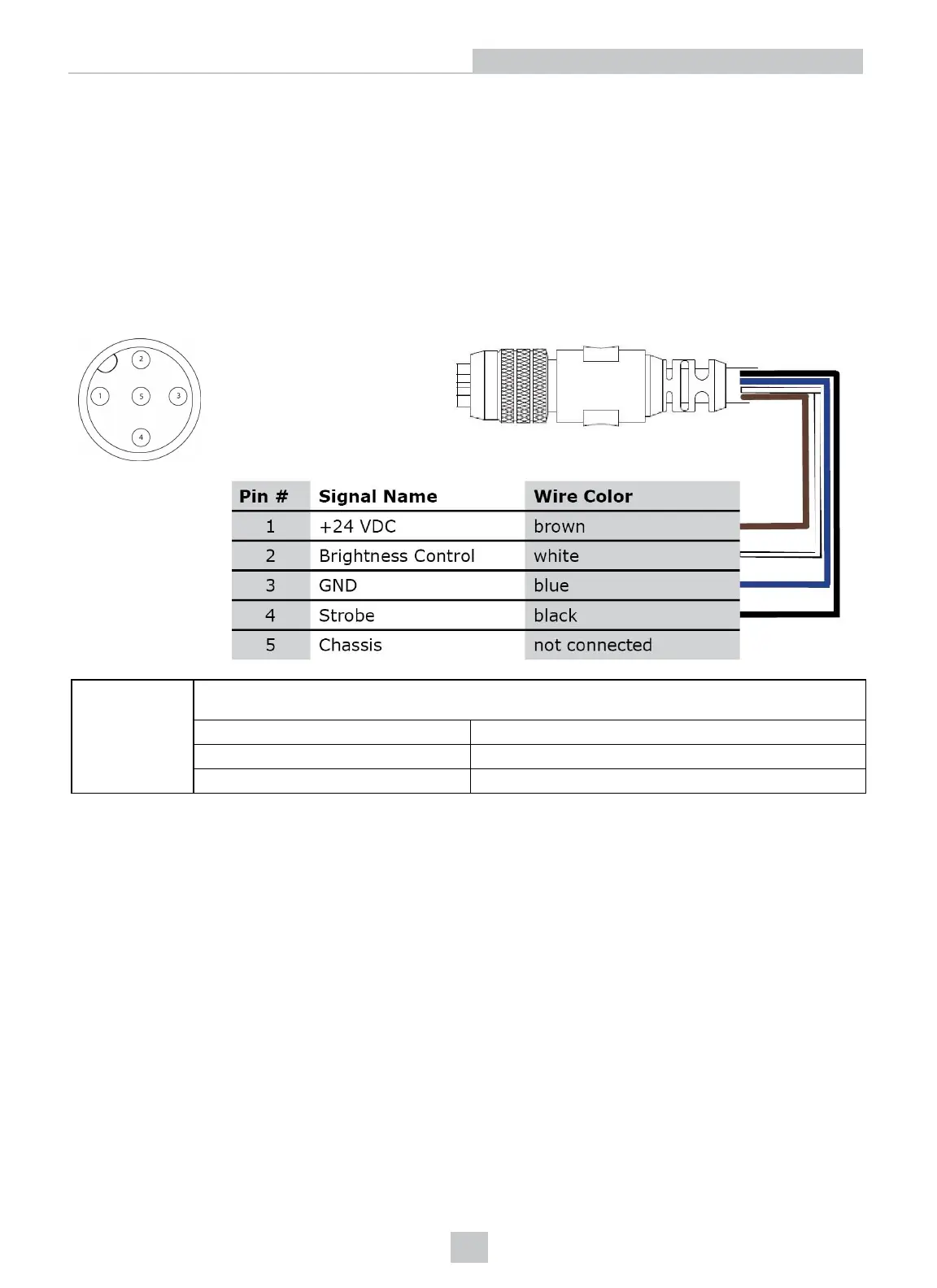

The drawing on the left shows the socket on the device.
Output Voltage
24V+/-5% (20V – 27V)
Voltage may drop depending on the length of the cable.
Max avg Current 1A
Peak Operating Current
1.5A up to 100µs, avg to not exceed 1A
MaxInrush Current 5A not exceeding 0.4As
