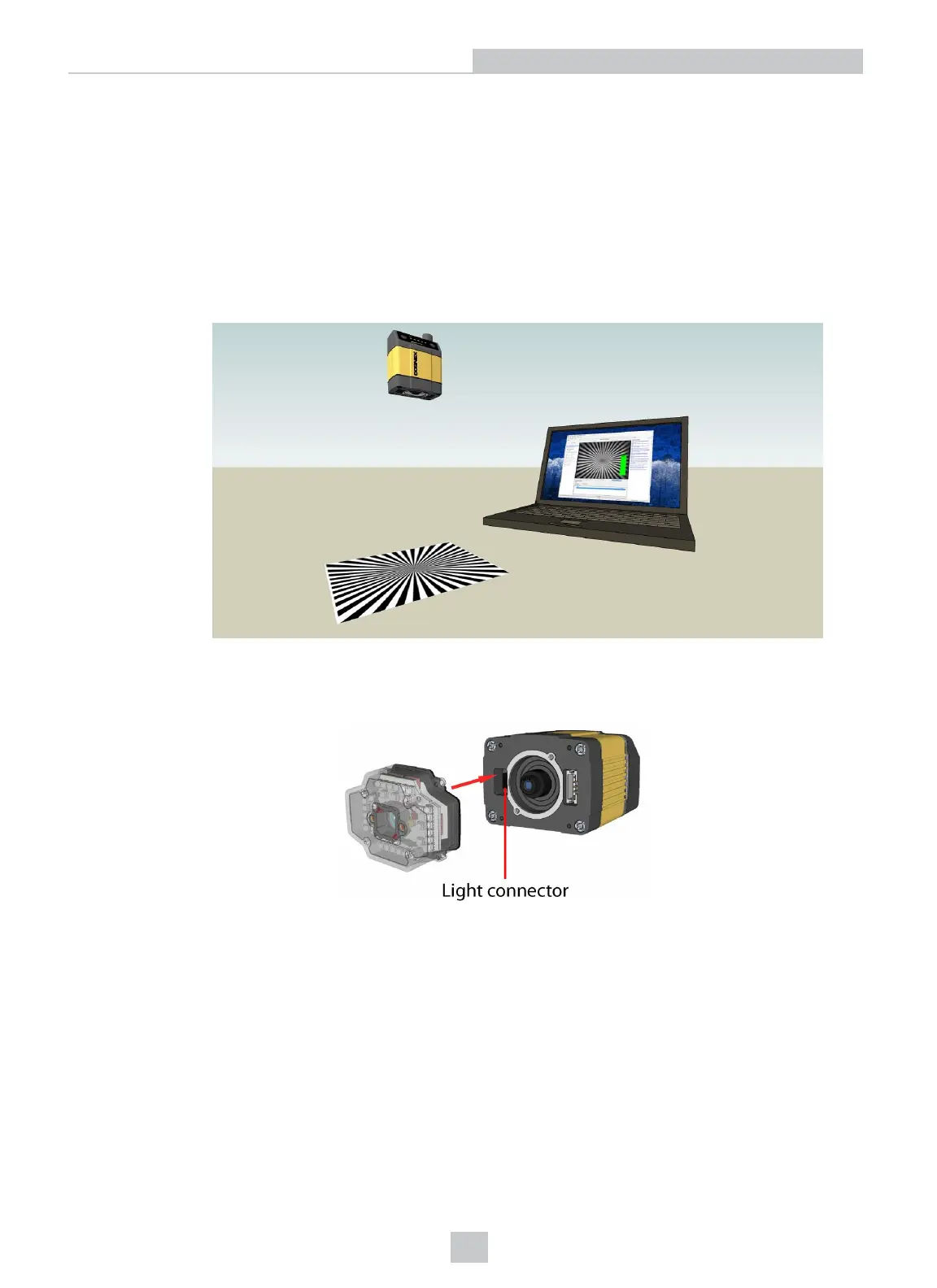

4. Place the reader at the desired working distance from focus target.
a. Connect the reader to the DataMan Setup Tool.
b. Adjust your camera settings to make sure you have a brightened and high contrast image. On the
Optimize Image page, check the Focus Feedback option from the drop-down menu of the Live button.
c. Use the DataMan Focus Target template, available through the Windows Start menu or the DataMan
Setup Tool Help menu, to align the edge of the reader body to the line marked with the target distance
used in your application.
d. Adjust focus for maximum sharpness. Enhance image quality in the DataMan Setup Tool for better
guidance.
5. Tighten the lens.
After fixing the lens, verify focus position again, using the steps above.
6. Attach the front cover.
16
Setting Up Your DataMan 360
