10
DEC 2021
INSTALL GUIDE
1
INSTALLATION
COGNEX DataMan 374
REV 00

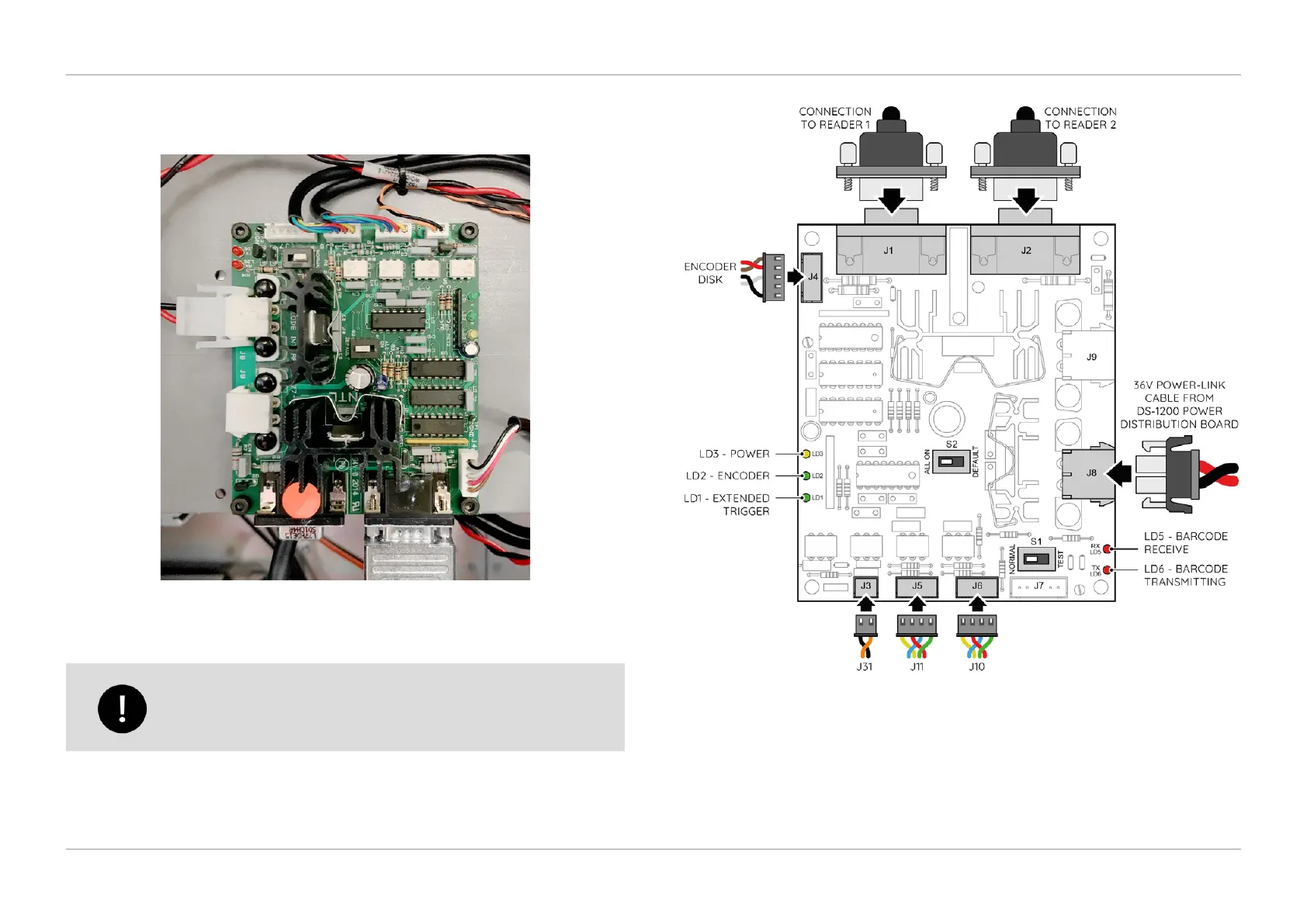

Figure 1.19 shows the reader connected to the Barcode Interface Board (A0133330) for
reading from a Feeder unit.
QTL-RND-OPS-00000321-A-00
Figure 1.19 – Barcode Interface Board connection for a Feeder unit
Barcode Interface Board Rev. C is required as a minimum for both
a Collate and Feeder unit.
Connect the Cognex Reader as required to ‘J1’ connection point for Reader 1, or ‘J2’
connection point for Reader 2 on the Barcode Interface Board as shown in Figure 1.20.
QTL-RND-OPS-00000322-A-00
Figure 1.20 – Connecting to the Barcode Interface Board
