Cognex DataMan 374 - Cable Looping

7
DEC 2021
INSTALL GUIDE
1
INSTALLATION
COGNEX DataMan 374
REV 00
QTL-RND-OPS-00000311-A-00

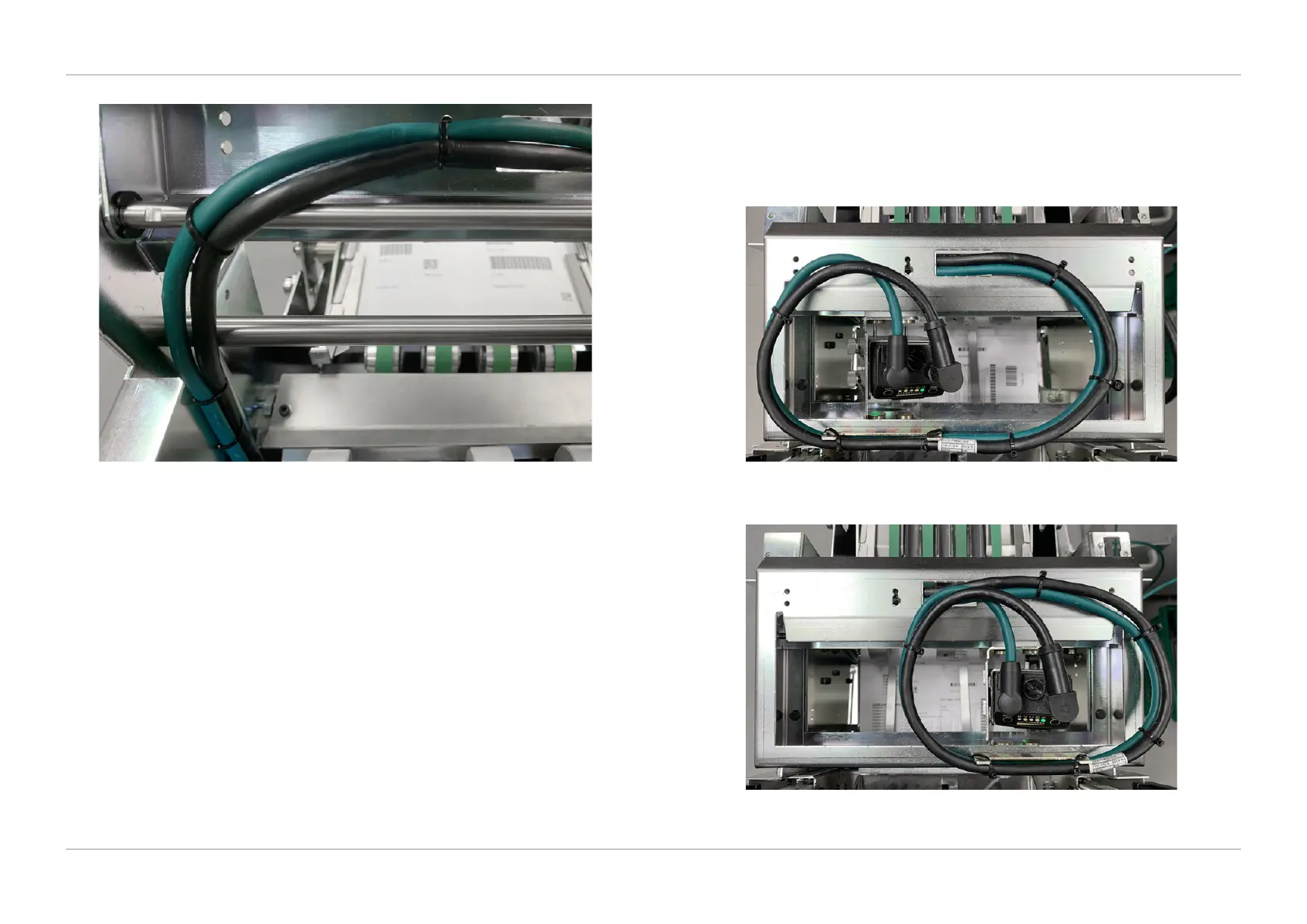

Figure 1.11 – Reader cable routing
1.2.2 CABLE LOOPING
Cable looping ensures the correct cable length required for both horizontal and vertical
mounted readers when in their maximum left or right positions as shown in Figure 1.12
and Figure 1.13, Figure1.14, and Figure 1.15.
QTL-RND-OPS-00000312-A-00
Figure 1.12 – Horizontal mounted reader in maximum left position
QTL-RND-OPS-00000313-A-00
Figure 1.13 – Horizontal mounted reader in maximum right position
