Cognex DataMan 374 - Cognex Dataman 374 Features and Indicators

26
DEC 2021
INSTALL GUIDE
3KEY FEATURESCOGNEX DataMan 374
REV 00
3.1 COGNEX DATAMAN 374 FEATURES AND INDICATORS

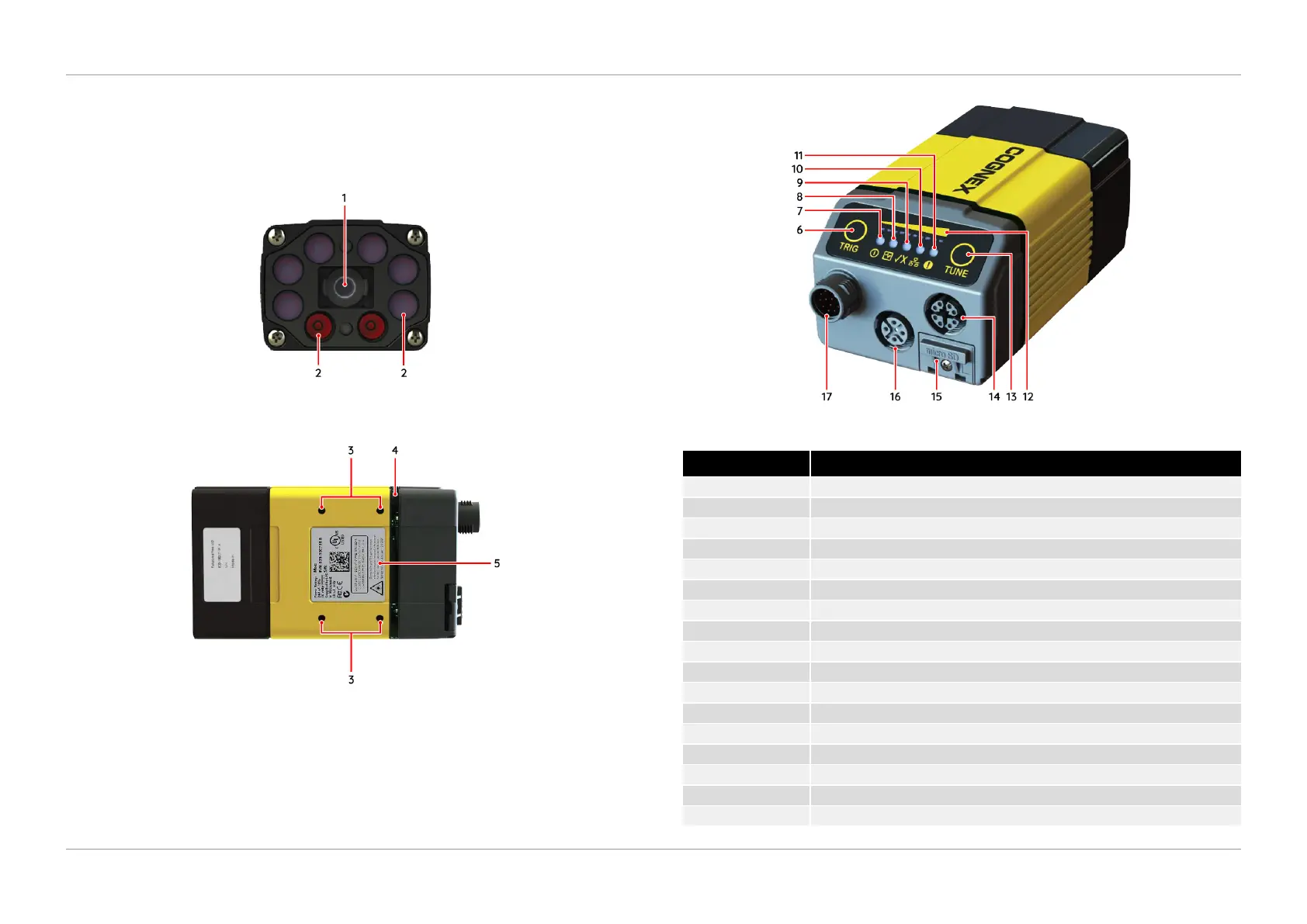

The following Figure 3.1, Figure 3.2, and Figure 3.3 show features and indicators of the
Cognex DataMan 374.
QTL-RND-GEN-00000168-A-00
Figure 3.1 – Cognex DataMan 374 features and indicators
QTL-RND-GEN-00000169-A-00
Figure 3.2 – Cognex DataMan 374 features and indicators
QTL-RND-GEN-00000170-A-00
Figure 3.3 – Cognex DataMan 374 features and indicators
Item Description
1 Lens
2 Illumination LED clusters
3 Mounting holes (M3 x 5mm)
4 Indicator light ring
5 Laser safety label
6 Trigger button
7 Power
8 Train status
9 Good/bad read
10 Network
11 Error
12 Peak meter
13 Tuning button
14 Ethernet
15 SD card slot
16 External light control
17 Power I/O and RS-232
