6
DEC 2021
INSTALL GUIDE
1
INSTALLATION
COGNEX DataMan 374
REV 00
1.2 INSTALLATION FOR COLLATE & OMR FOLDER READING INTERFACE
Mount the reader as required following the procedures detailed in section 1.1 Mounting
the Cognex Reader.
When installing, begin from the Reader back to the board to
ensure any excess cable can be tied back into the reader section.

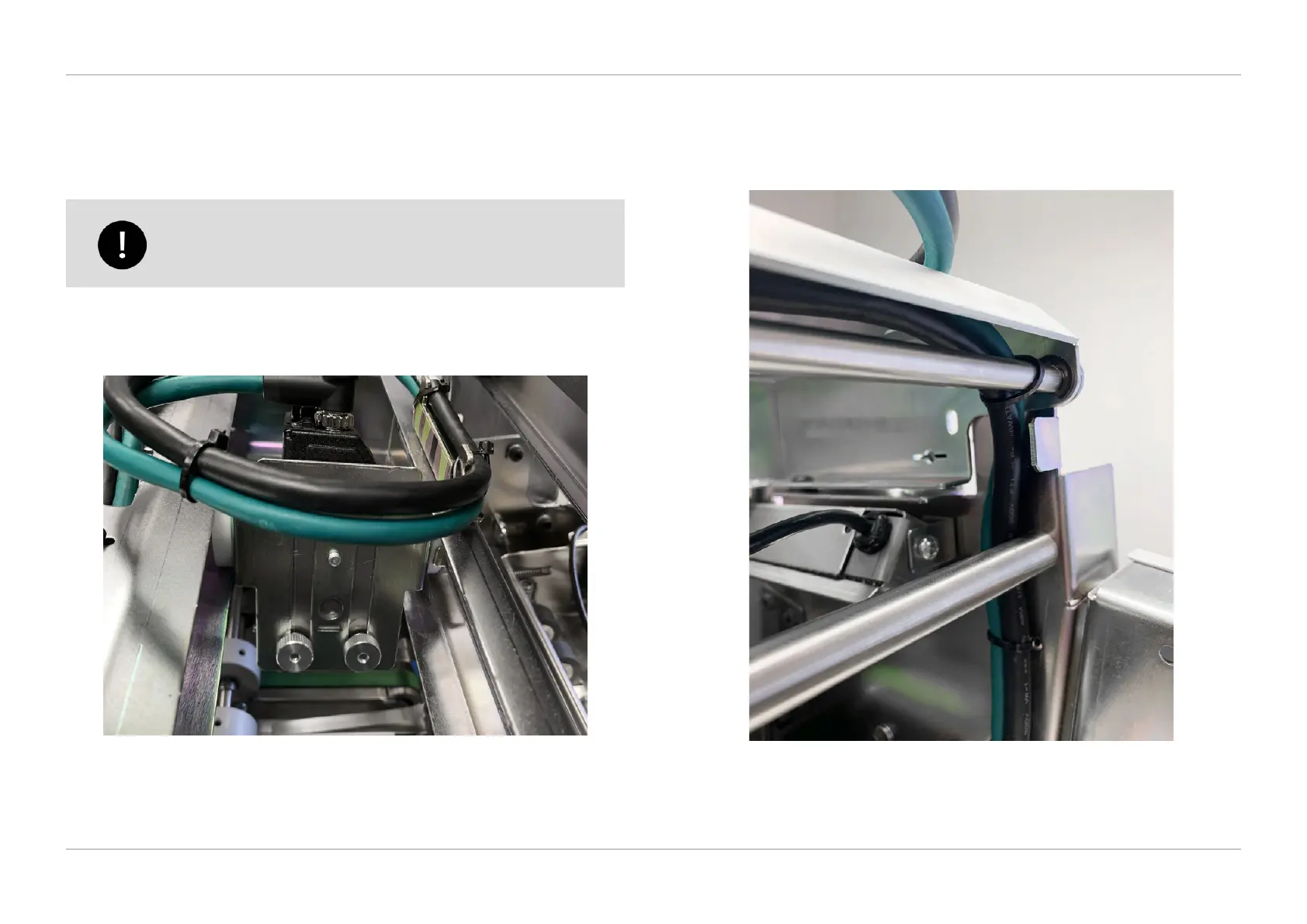

Figure 1.9 shows the Reader mounting bracket located in its xed position for top-read
and bottom-read.
QTL-RND-OPS-00000309-A-00
Figure 1.9 – Reader mounting bracket located in xed position
1.2.1 CABLE ROUTING
Route the reader cables accordingly using cable ties where necessary following
Figure 1.10, and Figure 1.11.
QTL-RND-OPS-00000310-A-00
Figure 1.10 – Reader cable routing
To Next Page
