INSTALL GUIDE
1
INSTALLATION
COGNEX DataMan 374
REV 00
QTL-RND-OPS-00000317-A-00

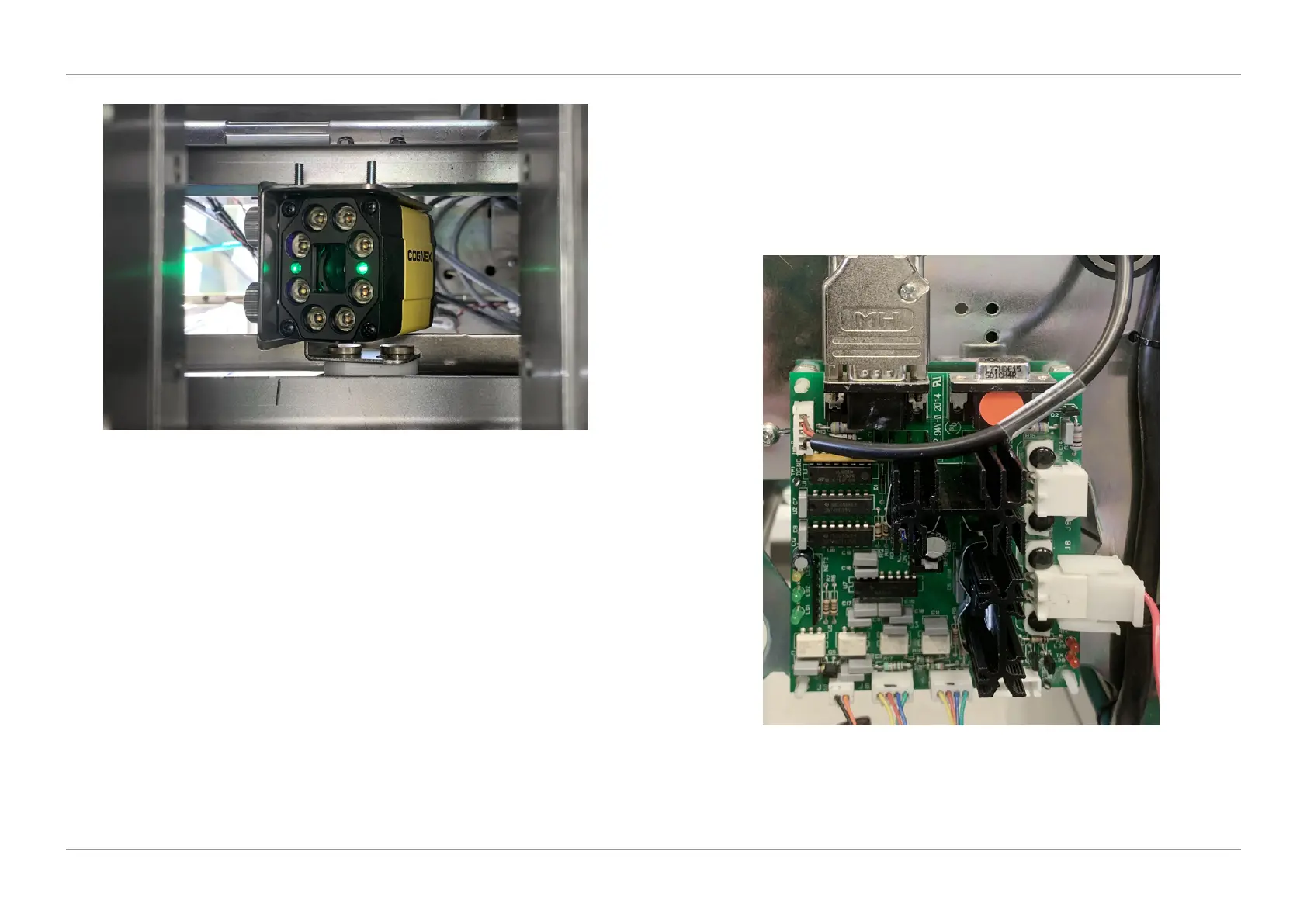

Figure 1.17 – Bottom-read vertically mounted reader
1.4 CONNECTING TO THE BARCODE INTERFACE BOARD
The procedure for connecting the reader to the Barcode Interface Board for both a
Collate and OMR Folder Reading Interface and Insert Feeder Interface are made in the
same manner.
Figure 1.18 shows the reader connected to the Barcode Interface Board (A0133330) for
a Collate unit.
QTL-RND-OPS-00000320-A-00
Figure 1.18 – Barcode Interface Board connection for a Collate unit
To Next Page
