Cognex DataMan 374 - Mounting the Cognex Reader

2
DEC 2021
INSTALL GUIDE
1INSTALLATIONCOGNEX DataMan 374
REV 00
1.1 MOUNTING THE COGNEX READER
There are two Cognex Reader kit versions available (top-read, and bottom-read)
as follows:
▪ A0128487 - BCR/2D COGNEX RDR TOP
▪ A0128486 - BCR/2D COGNEX RDR BOTTOM
Both top-read shown in Figure 1.1, and bottom-read shown in Figure 1.2 may be
mounted in either horizontal or vertical orientation.
QTL-RND-OPS-00000301-A-00

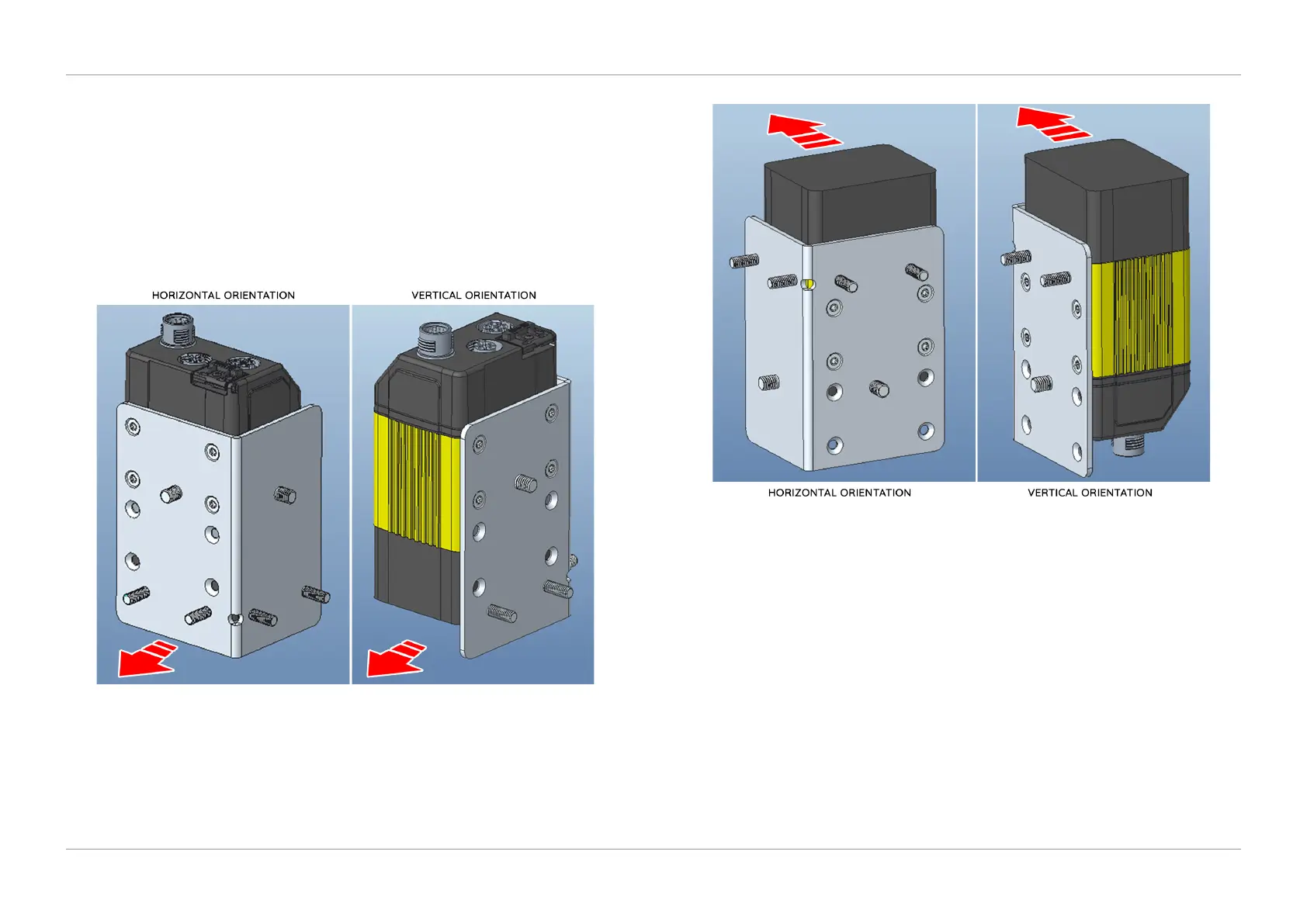

Figure 1.1 – Top-read mounted in horizontal and vertical orientation
NOTE:
Arrow represents code read direction.
QTL-RND-OPS-00000302-A-00
Figure 1.2 – Bottom-read mounted in horizontal and vertical orientation
NOTE:
Arrow represents code read direction.
