Cognex DataMan 8700 - Page 24

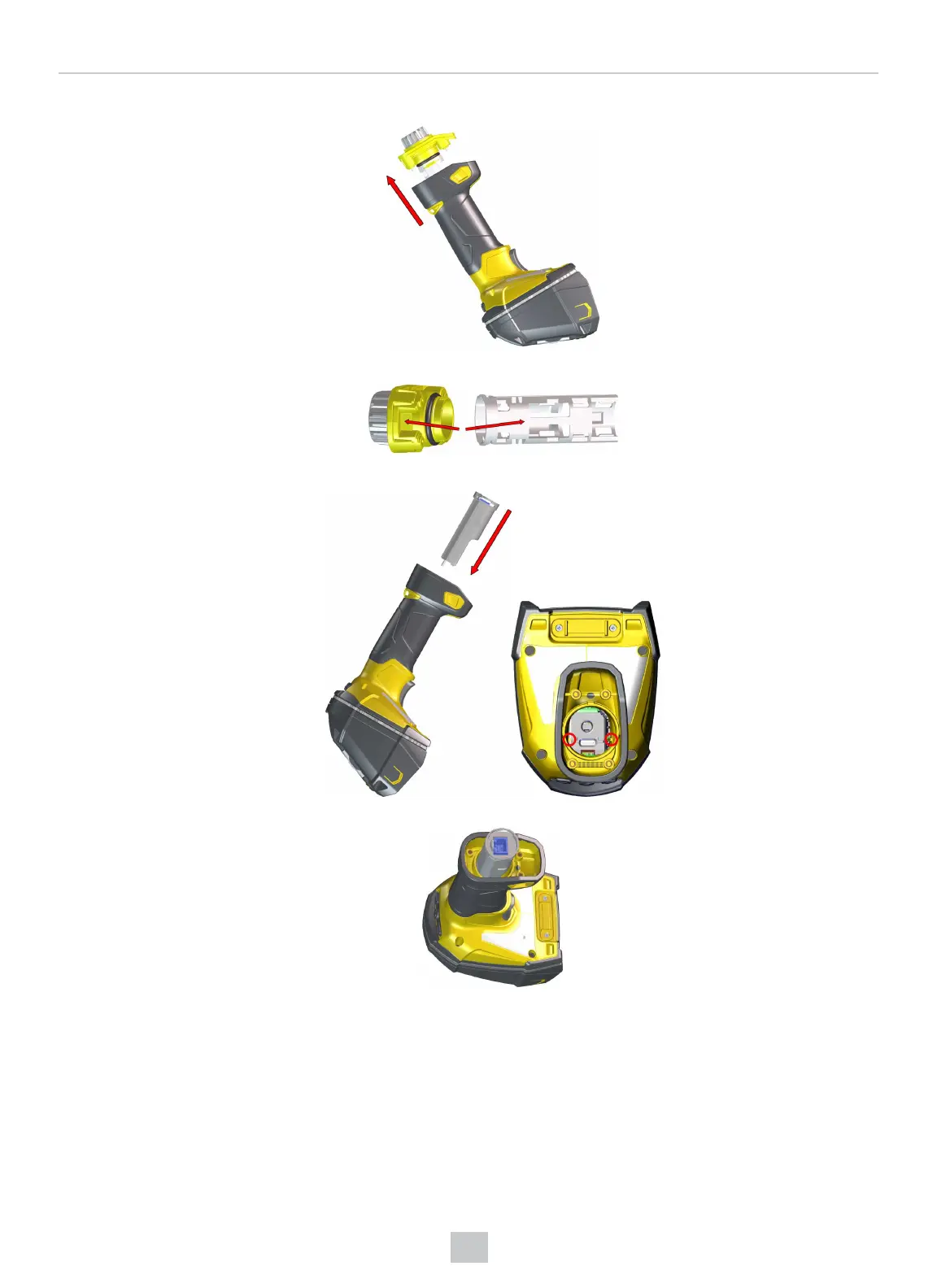

3. Pull out the end cap assembly with the internal communication slide-in.
4. Separate the internal slide-in from the end cap assembly.
5. Line up the new communication slide-in with the rails on the internal sides of the reader.
6. Insert Internal communication slide-in.
24
Connection Options
