ComAp InteliATS NT STD User Manual

InteliATS
NT
STD, SW version 2.0, ©ComAp – June 2010 35
IA-NT- STD-2.0-Reference Guide.pdf
ts
nputs/Outputs overview table see chapter Technical Data.

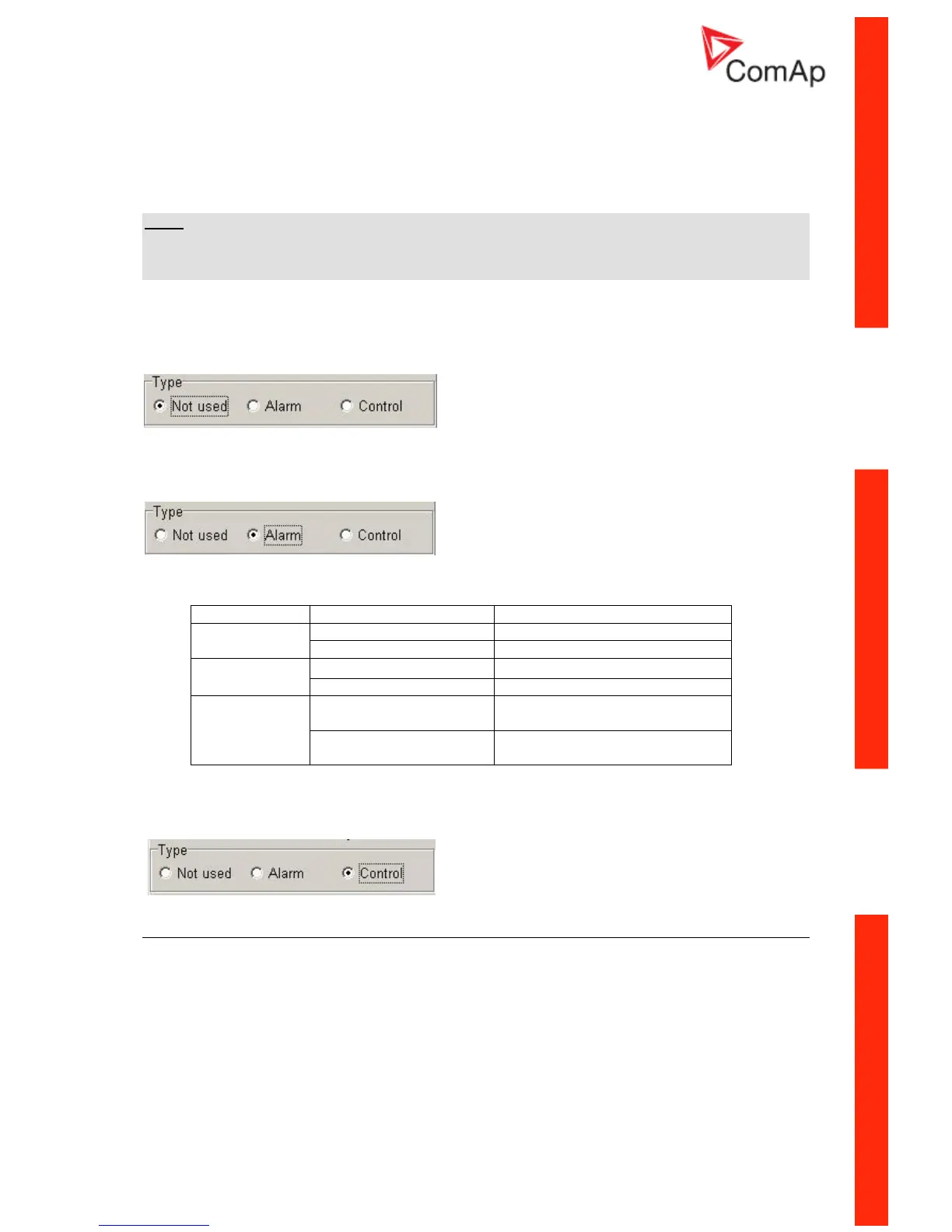

Inputs and Outpu
For I
NOTE:
Any Binary input or output can be configured to any IA-NT controller terminal or changed to different
function by LiteEdit software. There is fix 1 sec delay when any binary input is configured as
protection.
Not Used
Binary input has no function. Use this configuration when Binary input is not connected.
Alarm
If the input is closed (or opened) sel d alarm is activated. ecte
Bina nfigu ms
string
ry Alarm co ration ite
Name 14 characters ASCII
NC Normally closed Contact type
NO ally opened Norm
Warning Alarm type
Trip
All the time Valid if checkbox “Engine running
only” is not checked
Alarm active
Engine running only Valid if checkbox “Engine running
only” is checked
Control
Use this setting to configure the desired function from the list below.
Binary inputs IA-NT - default
BI1 GCB Feedback
BI2 MCB Feedback
BI3 GenReadyToLoad
BI4 MainsFailBlock*
*InteliATS STD HW version 1.3 provides 3 binary inputs, higher versions provide 4 binary inputs
