InteliLite Global Guide
19
4.2 Controller installation

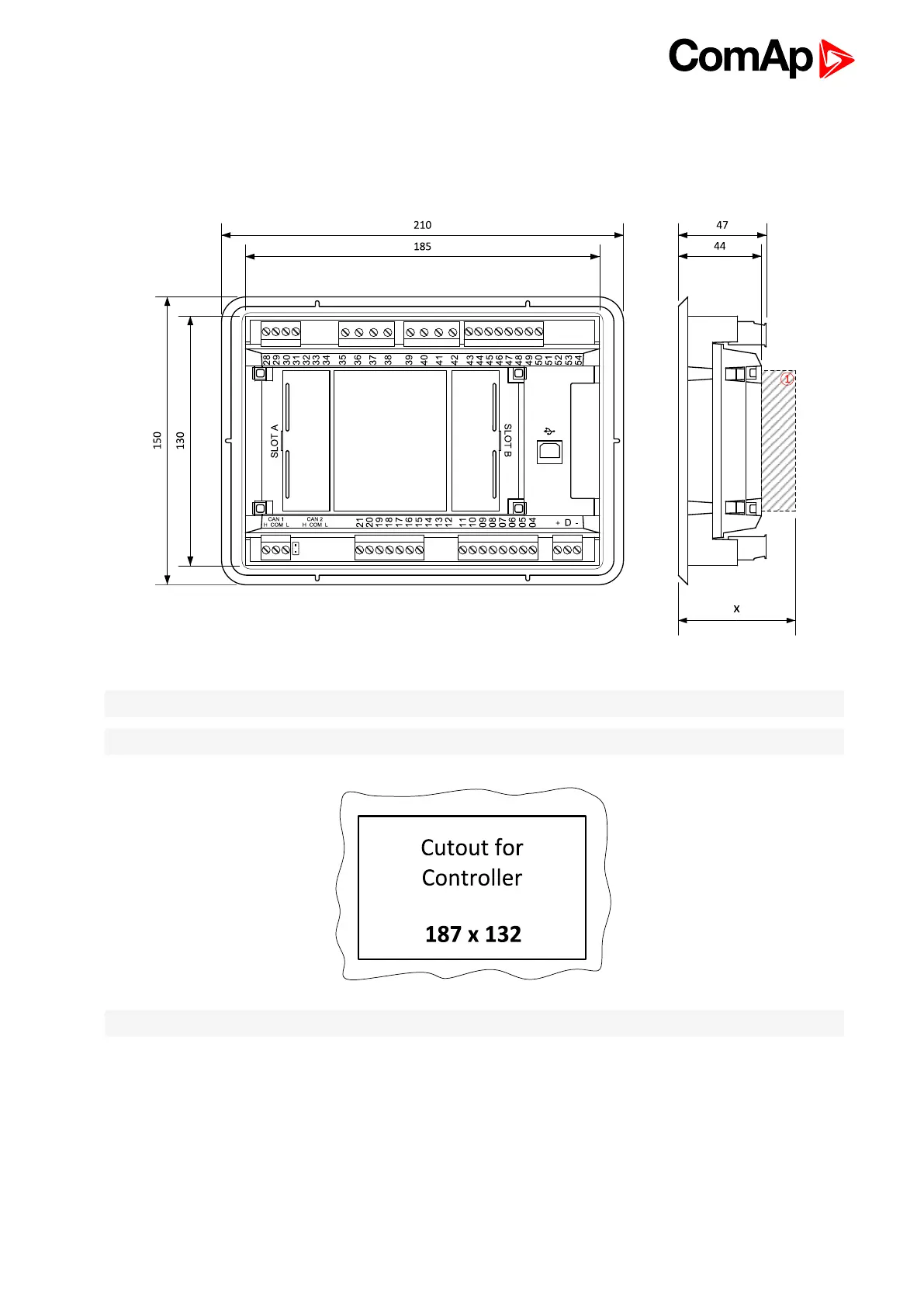

4.2.1 Dimensions
â‘ Plug-in module
Note: Dimension x depends on plug-in module
Note: Dimensions are in millimeters.
Note: Cutout is in millimeters.
4.2.2 Mounting
The controller is to be mounted onto the switchboard door. Requested cutout size is 187 x 132 mm. Use the
screw holders delivered with the controller to fix the controller into the door as described on pictures below.
Recommended torque for holders is 0,15 Nm.
Panel door mounting Overview of parameter x
