5.3 Operator Guide
5.3.1 Front panel elements 52
5.3.2 Display screens and pages structure 54
5.3.3 Browsing alarms 65
5.3.4 Password 66
5.3.5 Information screen 70
5.3.6 Language selection 71
5.3.7 Display contrast adjustment 73
5.3.1 Front panel elements

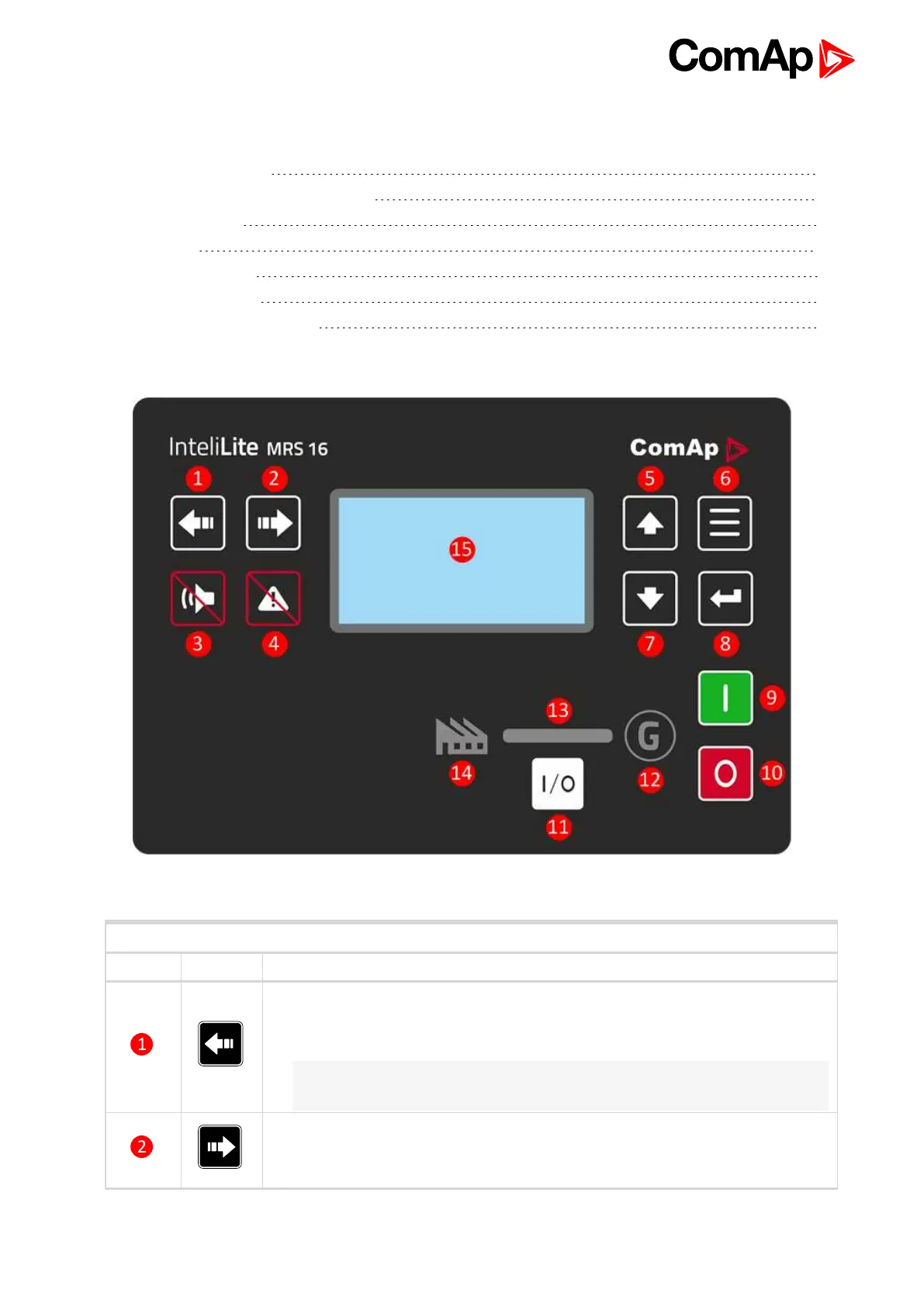

Image 5.12 Operator interface of MRS16
Control buttons
Position Picture Description
LEFT button. Use this button to move left or to change the mode. The button can
change the mode only if the main screen with the indicator of currently selected
mode is displayed.
Note: This button will not change the mode if the controller mode is forced by
one of binary inputs listed in the Reference Guide – “Operating modes” chapter.
RIGHT button. Use this button to move right or to change the mode. The button can
change the mode only if the main screen with the indicator of currently selected
mode is displayed.
