InteliLite Global Guide
113

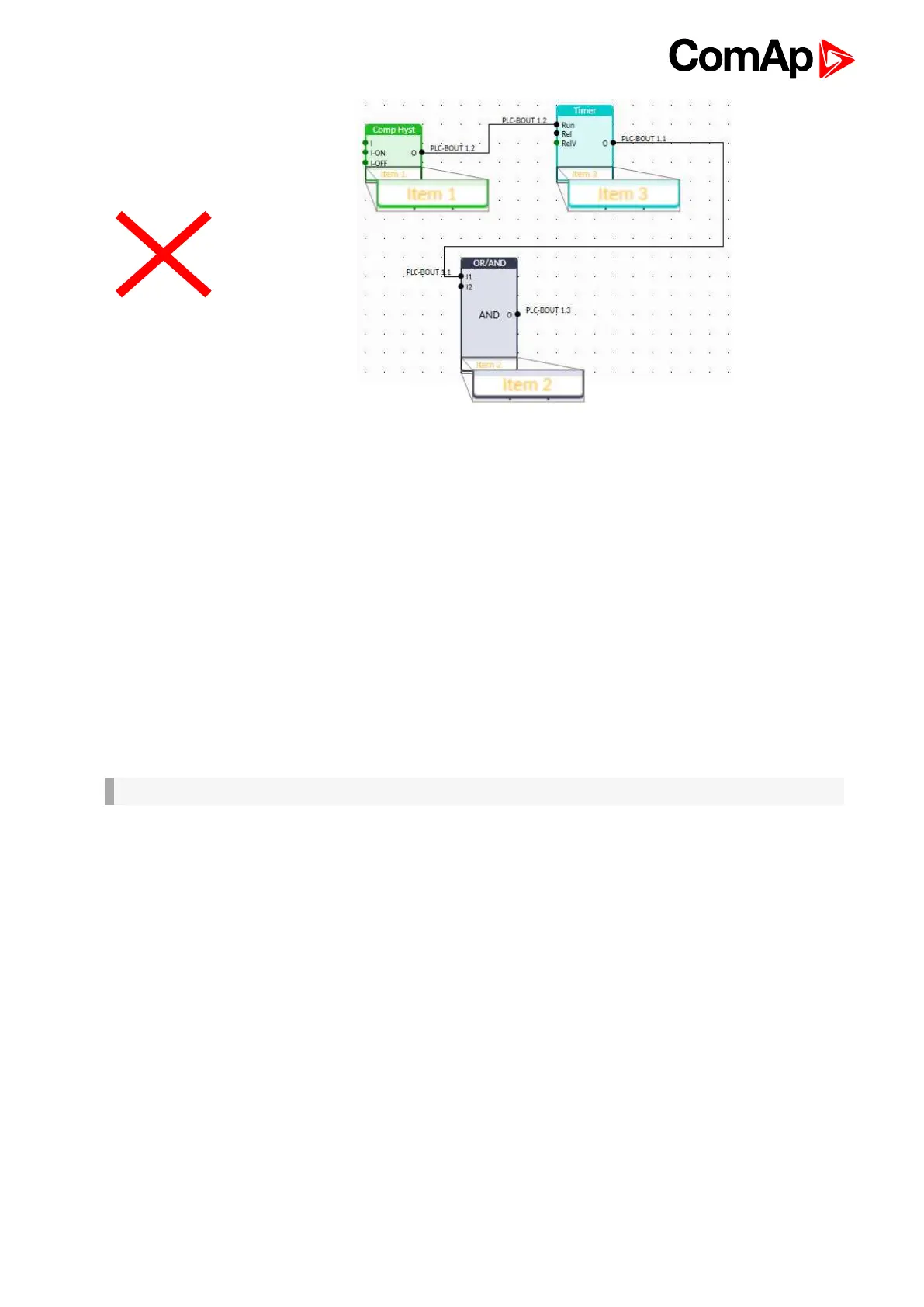

Other functions
Consistency check
Use this function to check if all inputs and outputs of PLC block are connected.
Delete whole content of sheet
Use this function to delete the whole content of sheet (including blocks, wires, inputs, outputs, etc...).
Hints
Use this function to enable or disable quick hints for blocks (controller help is not affected by this function).
PLC monitor
PLC monitor is a powerful tool for monitoring your PLC. Just click on PLC monitor button on main LiteEdit2015
page to see you PLC. Active inputs and outputs have blue color. Also wires with active signals have blue color.
IMPORTANT: It is not possible to edit PLC in PLC monitor tool.
5.4.21 Geo-fencing
Geo-fencing function is kind of protection that evaluates whether the actual GPS location is within predefined
area and based on the evaluation takes an action (sends sms, stops engine, make history record etc.). Function
is enabled by setpoint Geo-Fencing (page 285) or by logical binary input GEO-FENCING ENABLED (PAGE 456).
Using LiteEdit2015, it is possible to set two concentric geo-circles within which the unit is allowed to be located.
Each geo-circle is defined as circular geographic area with centre (common for both geo-circles) named Home
Position adjusted via setpoints Home Latitude (page 283) and Home Longitude (page 283) and radius named
Fence Radius adjusted via setpoints .Fence Radius 1 (page 284) and Fence Radius 2 (page 284).
Protections can be different for both circles. Protection are adjusted via setpoints Fence 1 Protection (page 286)
and Fence 2 Protection (page 287).
It is also possible to see the current position of the controller in WebSupervisor map view.
5.4.22 Tier 4 Final
Tier 4 Final support generally provides monitoring and control of after-treatment system installed on generators
engine. The requirements are defined as:
