8.3.1 Plug-In modules
Communication modules 602
Extension modules 613
IMPORTANT: 2nd generation of InteliLite controllers does not support new modules and 3rd
generation does not support all old modules.
The available communication plug-in modules for the 3rd generation are:
CM-RS232-485 - communication module for connection via RS232 or RS485 line
CM-4G-GPS - communication module for connection via 4G
CM-GPRS - communication module for connection via GPRS
CM-Ethernet - communication module for internet connection via Ethernet
The available extension plug-in modules for the 3rd generation are:
EM-BIO8-EFCP - extension module with 8 binary inputs/outputs and with earth fault current protection
Note: Controller has 2 plug-in module slots.
Communication modules
CM-RS232-485 602
CM-Ethernet 603
CM-GPRS 605
CM-4G-GPS 609
CM-RS232-485
CM-RS232-485 is optional plug-in card to enable InteliLite the RS232 and RS485 communication. This is
required for computer or MODBUS connection. The CM-RS232-485 is a dual port module with RS232 and
RS485 interfaces at independent COM channels. The RS232 is connected to COM1 and RS485 to COM2.

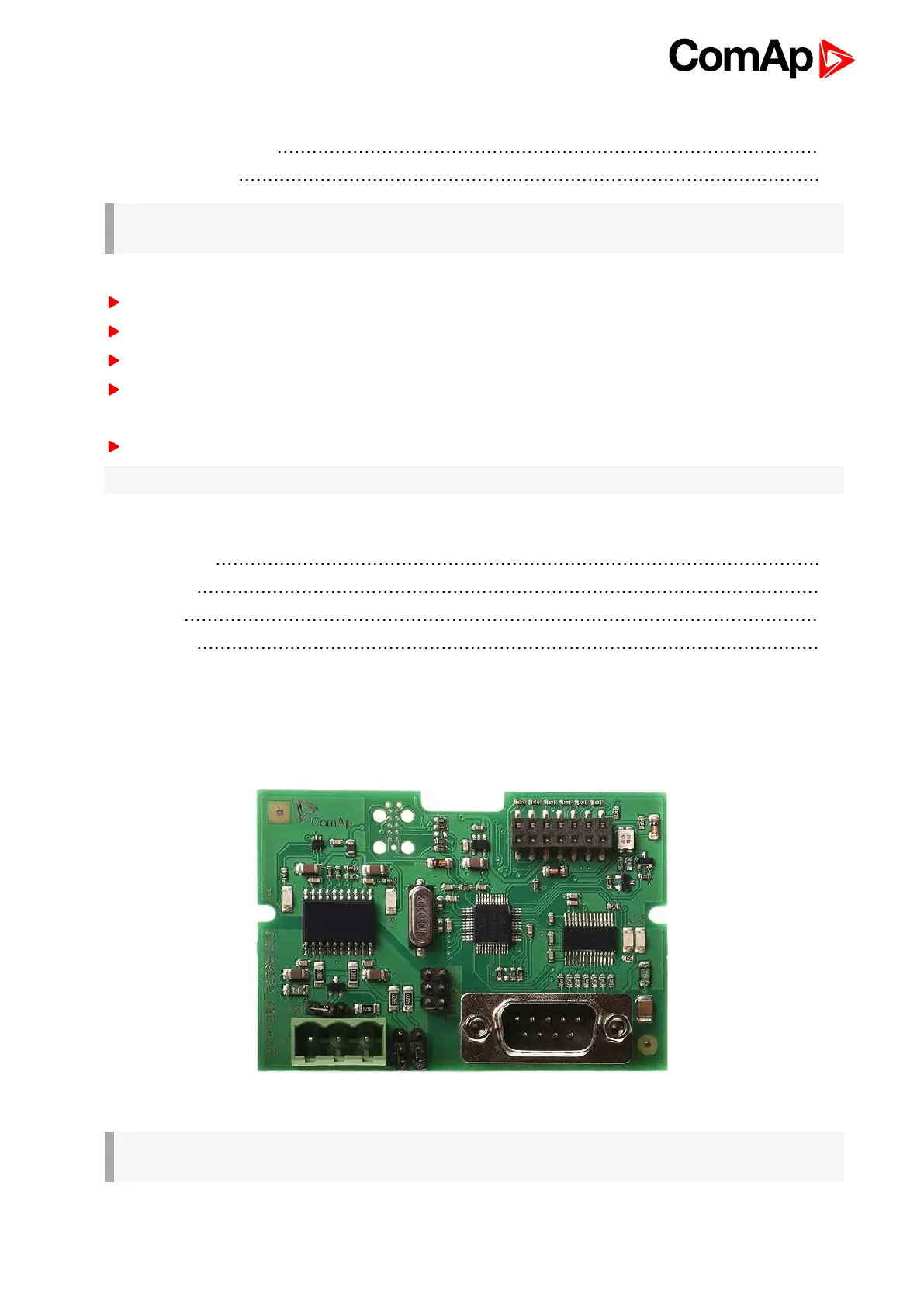

Image 9.14 CM-RS232-485 interface
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
