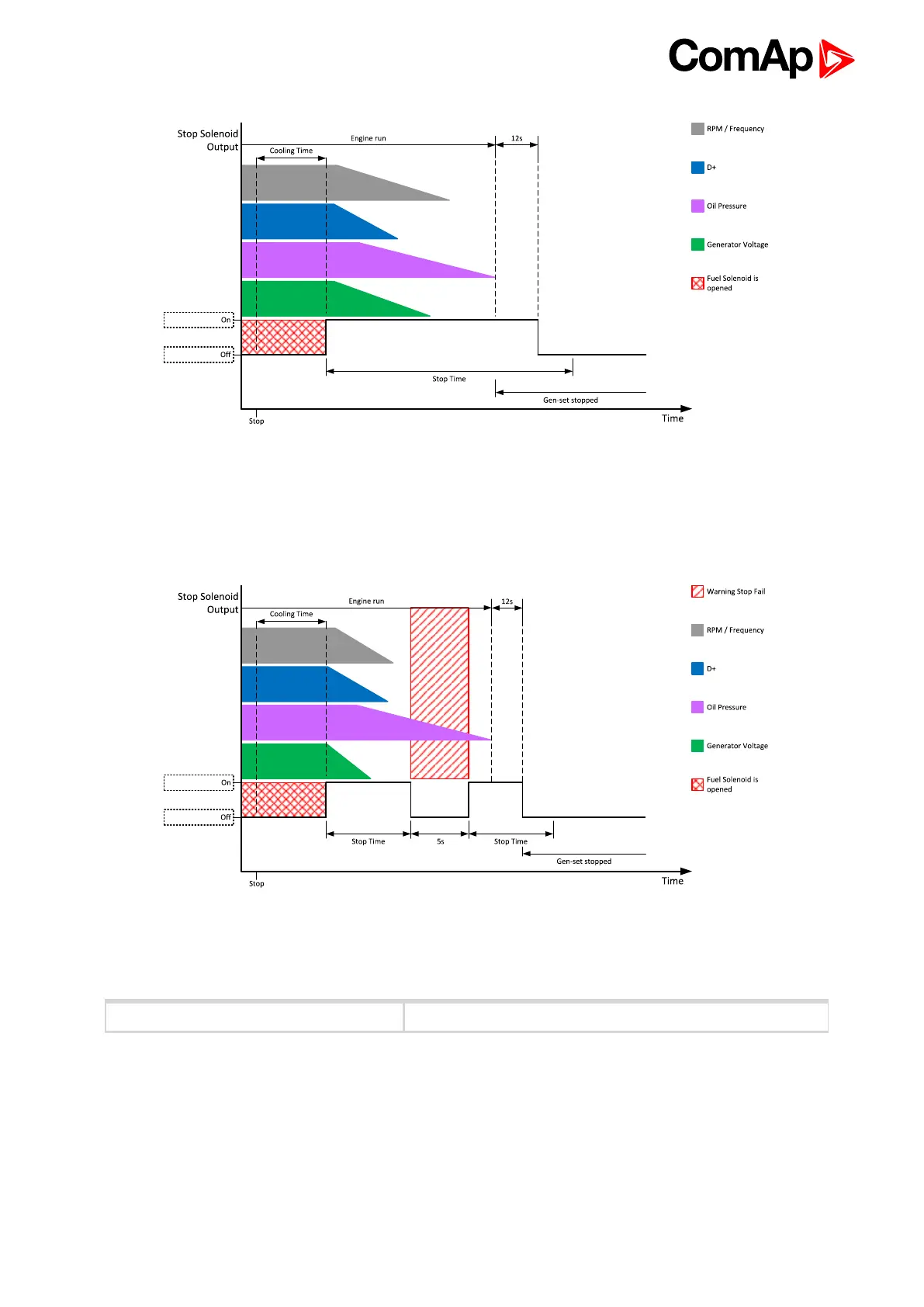

Image 5.31 Engine stops in Stop Time (page 174)
When the total time of stopping will exceed setpoint Stop Time (page 174) than the Wrn Stop Fail (page 576)
and binary outputs are activated. The controller will continuously try to stop the engine.
Image 5.32 Engine stops after first Stop Time (page 174)
Electric state machine
BrksOff GCB opened
5.4.19 Sensor curves
Background of the sensor calibration
To correct measuring error of each analog input (pressure, temperature, level, etc.) calibrating constants should
be set. Calibration is made by adding the value of setpoint Analog Input 1 Calibration (page 288), or Analog Input
