operating mode with communication with controller - green LED is blinking in period 500ms/500ms
operating mode without communication with controller - red LED is blinking in period 500ms/500ms
test mode - green LED is blinking in period 250ms/250ms
Firmware upgrade
Download the newest FWof module from ComAp website (in form of PSI file or installation package)
Instal package to computer or open PSI to instal it into LiteEdit2015
Plug the module into the controller and power the controller on.
Open a connection with controller via LiteEdit2015
Go the menu Tools -> Firmware upgrade, select the Plug-in modules tab and select the appropriate firmware
you want to program into the module (in LiteEdit2015).
Press the OK button to start upgrade of firmware.
The firmware update process may be performed via any kind of connection including connection via the same
module in which the firmware is to be updated. The connection is reestablished again automatically when the
update process is finished.
CM-GPRS
CM-GPRS plug-in module is a GSM/GPRS modem which can works in two modes of operation based on the
settings in the setpoint Mode (page 314).

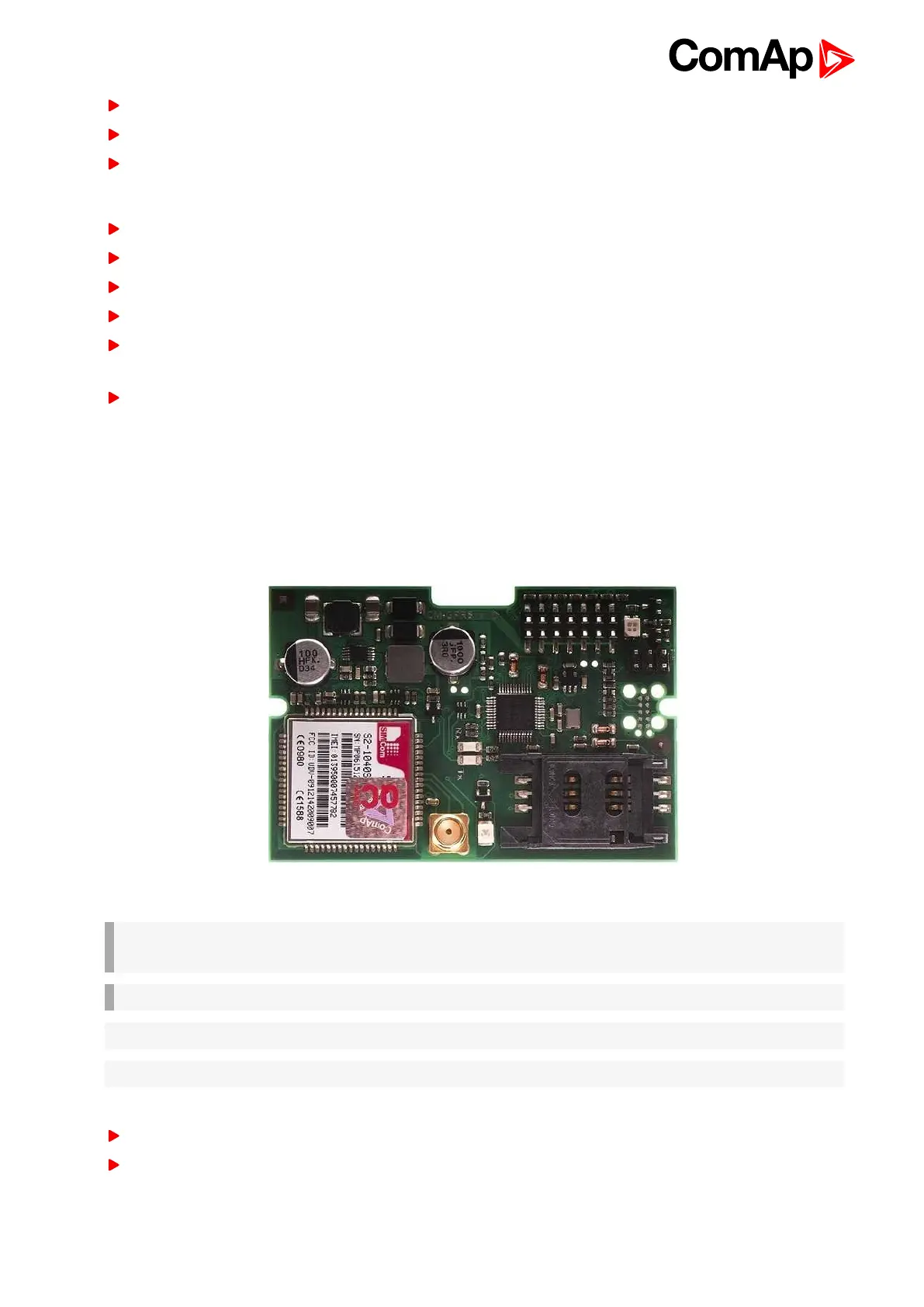

Image 9.19 CM-GPRS module
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
IMPORTANT: CM-4G-GPS and CM-GPRS modules cant be used in one controller in the same time.
Note: GPRS and CSD services must be provided by your GSM/GPRS operator for successful operation.
Note: The GPRS and CSD connection should not be used for the firmware update process.
CM-GPRS module works with:
WebSupervisor – internet-based remote monitoring solution
AirGate – powerful connection technology to make internet access as simple as possible
