InteliLite Global Guide
604
controller into a building management (MODBUS TCP and SNMP protocols). This card also enables to monitor
and control the gen-set over web browser from any location with internet access using appropriate security
measures.

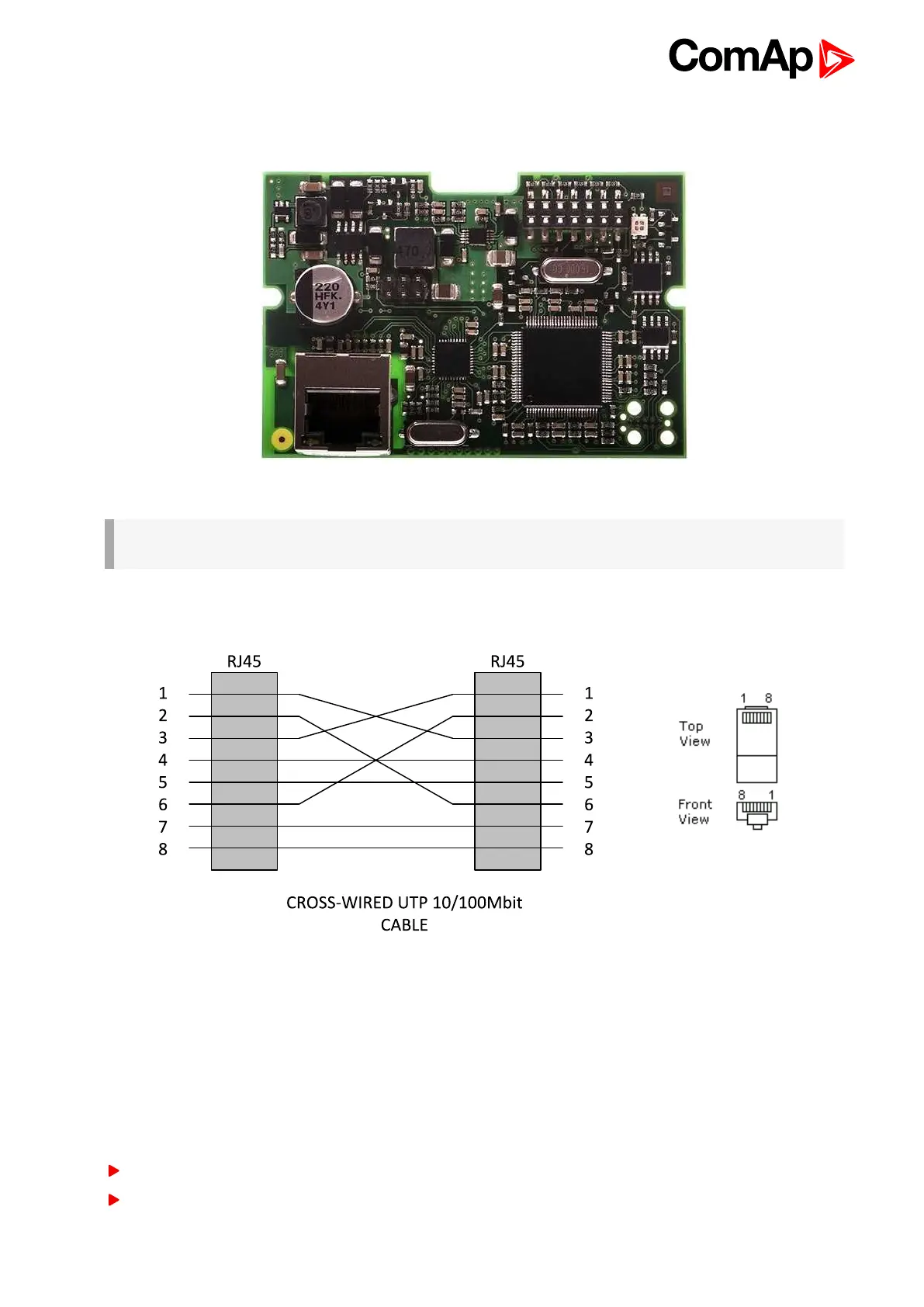

Image 9.17 CM-Ethernet interface
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
Use an Ethernet UTP cable with a RJ45 connector for linking the module with your Ethernet network. The
module can also be connected directly to a PC using cross-wired UTP cable.
Image 9.18 Cross-wired cable
Module setup
All settings related to the module are to be adjusted via the controller setpoints. The respective setpoints are
located in the setpoint Group: CM-Ethernet (page 326).
All actual operational values like actual IP address etc. are available in controller values in a specific group as
well.
On module is also indication LED. Following states are indicated via this LED:
bootloader mode with communication with controller - green LED is blinking in period 50ms/50ms
bootloader mode without communication with controller - red LED is blinking in period 50ms/50ms
