InteliLite Global Guide
205
Setpoint group General Analog Inputs Related FW 1.2.1
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 11410 Related applications AMF, MRS
Config level Standard
Setpoint visibility
Visible only if the logical binary output ANALOG SWITCH 1 (PAGE 476) is
configured
Description
Threshold level for switching the binary output ANALOG SWITCH 1 (PAGE 476) off. The value is measured
from AIN SWITCH 01 (PAGE 536) analog input.

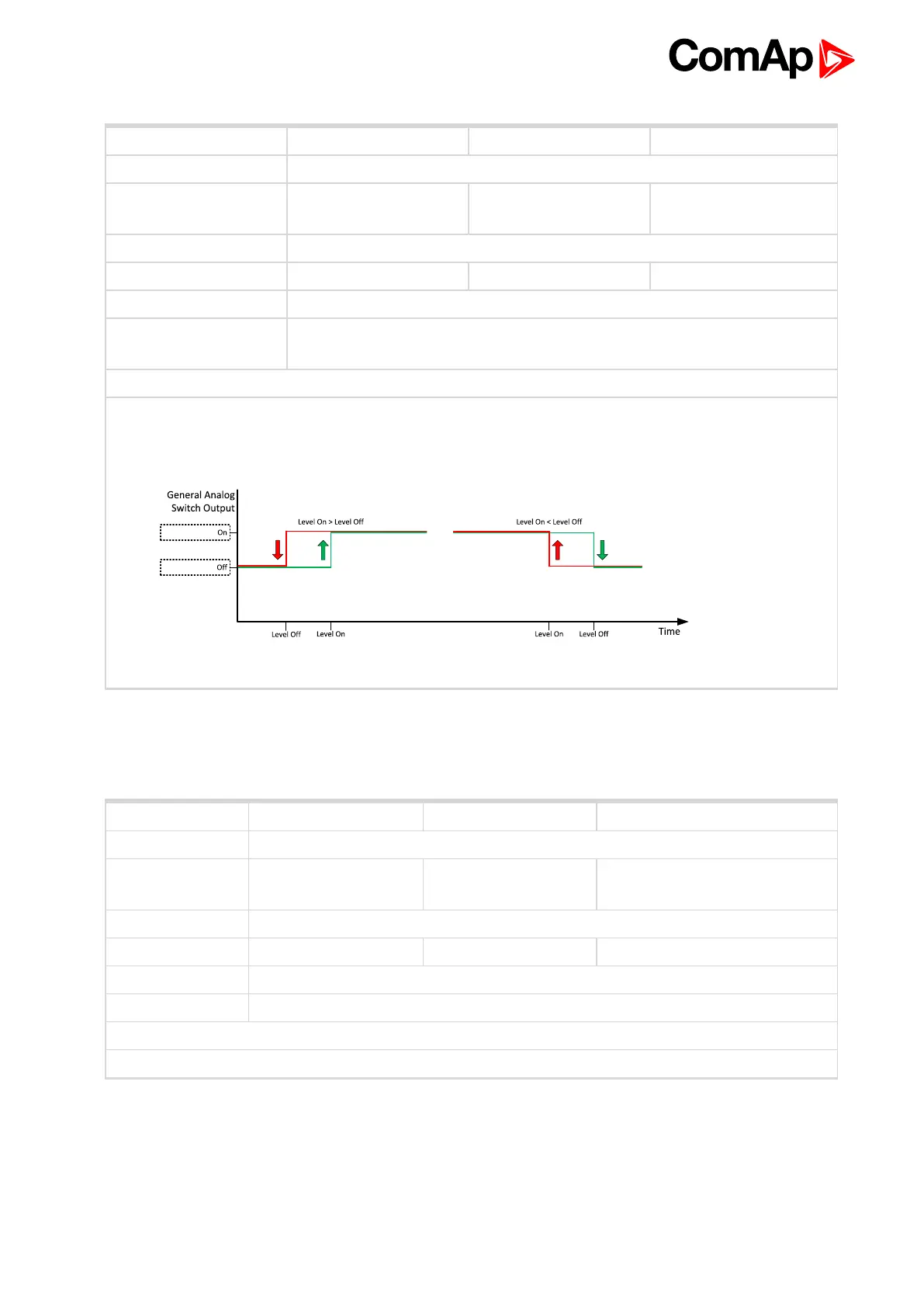

Image 8.21 General analog input 1 switch
Analog Switch 1 Off
6 back to List of setpoints
General Analog Input 2
Setpoint group General Analog Inputs Related FW 1.2.1
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 9262 Related applications AMF, MRS
Config level Standard
Setpoint visibility Always
Description
Warning or history threshold level for AIN PROT 02 (PAGE 517).
Analog Protection 2 Wrn
6 back to List of setpoints
