Setpoint group General Analog Inputs Related FW 1.2.1
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 14988 Related applications AMF, MRS
Config level Standard
Setpoint visibility
Visible only if the logical binary output ANALOG SWITCH 4 (PAGE 478) is
configured
Description
Threshold level for switching the binary output AIN SWITCH 14 (PAGE 540) off. The value is measured from
AIN SWITCH 04 (PAGE 537) analog input.

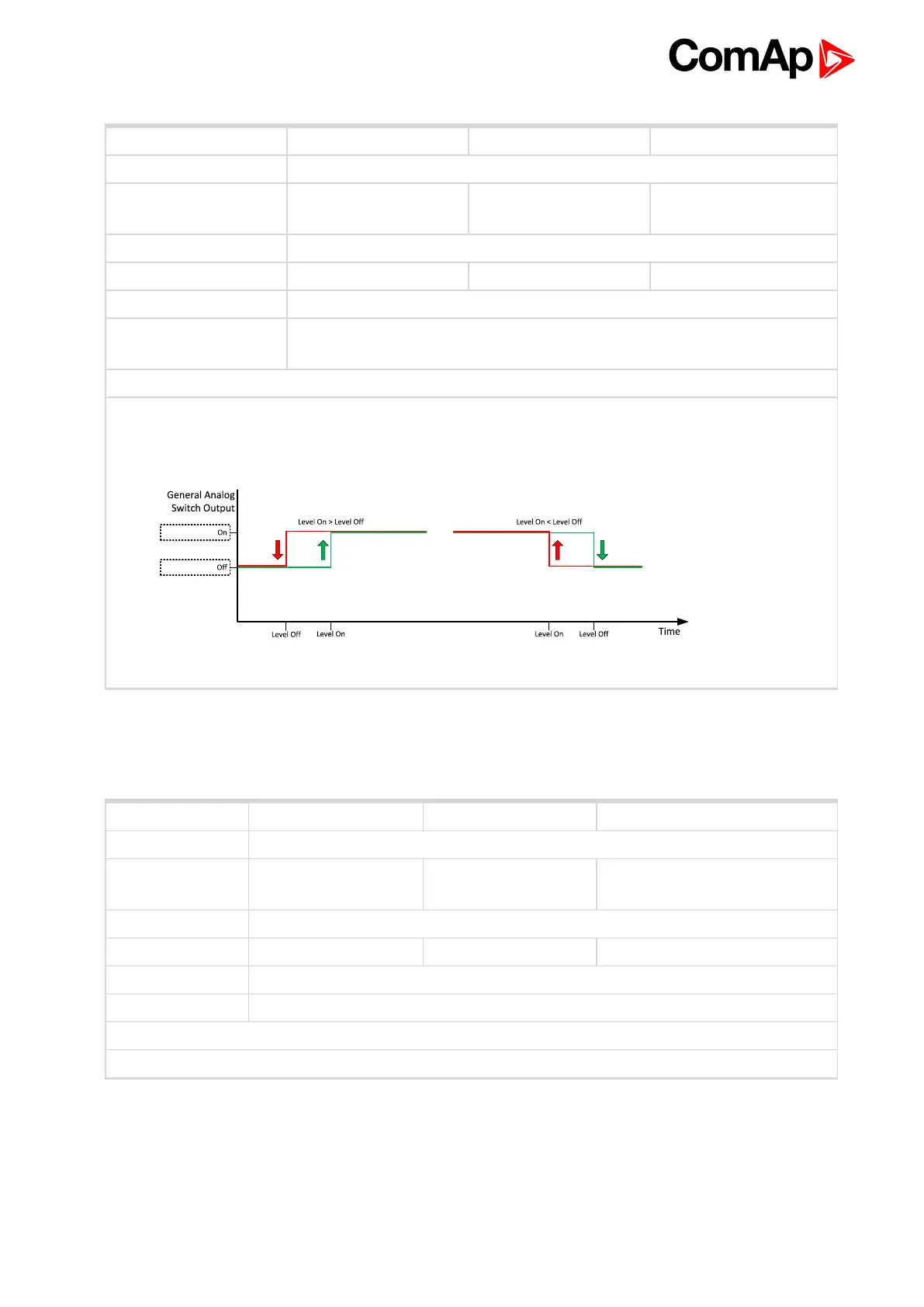

Image 8.47 General analog input 4 switch
Analog Switch 14 Off
6 back to List of setpoints
General Analog Input 15
Setpoint group General Analog Inputs Related FW 1.2.1
Range [units] the range is defined by analog sensor curve
Default value
the value is defined by
analog sensor curve
Alternative config NO
Step the step is defined by analog sensor curve
Comm object 9301 Related applications AMF, MRS
Config level Standard
Setpoint visibility Always
Description
Warning or history threshold level for AIN PROT 15 (PAGE 530).
Analog Protection 15 Wrn
6 back to List of setpoints
