InteliLite Global Guide
29

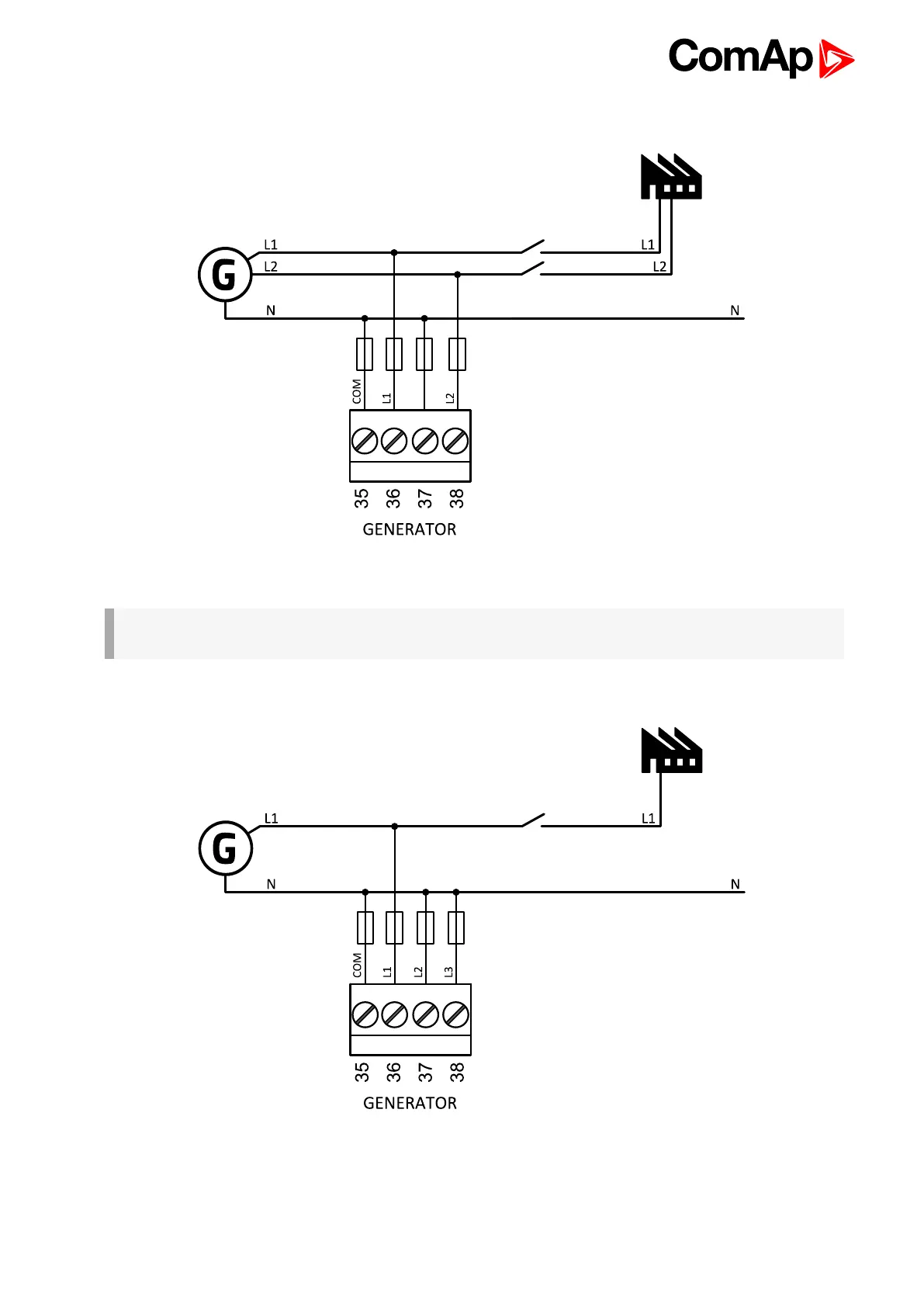

ConnectionType: Split Phase
Image 4.7 Split phase application
IMPORTANT: The second phase of split phase connection is connected to the terminal, where is
normaly connected the third phase.
ConnectionType: Mono Phase
Image 4.8 Mono phase application
