InteliLite Global Guide
341
Setpoint group PLC Related FW 1.2.1
Range [units] Depends on resolution of value [-]
Default value
Depends on resolution of
value [-]
Alternative config NO
Step Depends on resolution of value [-]
Comm object 10441 Related applications AMF, MRS
Config level Standard
Setpoint visibility Only if relevant setpoint is used in PLC
Description
Adjustable value for input in PLC logic.
Configuration of setpoint:
Configuration is made via configuration PC tool LiteEdit2015

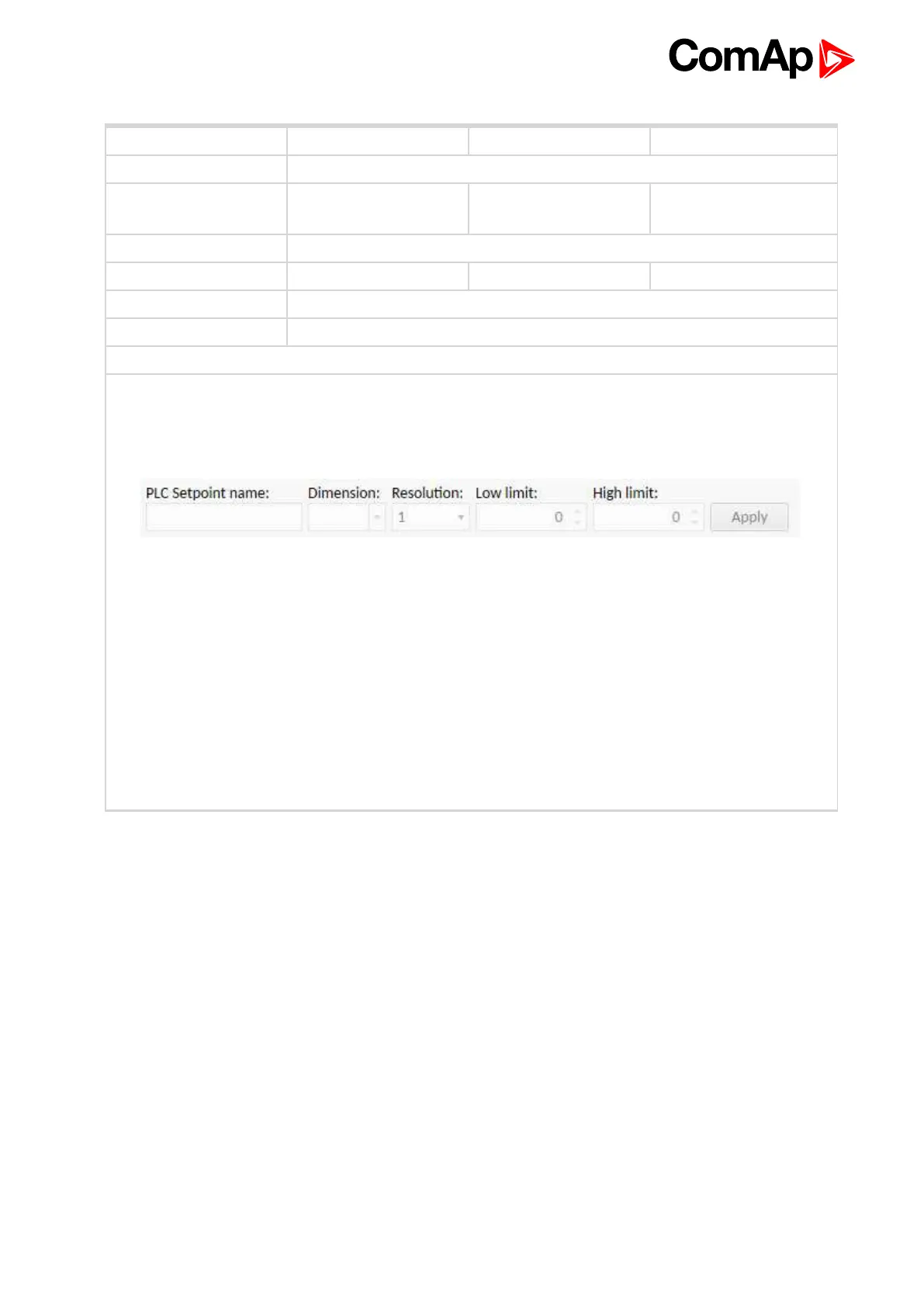

Image 8.65 Screen of configuration from LiteEdit2015
PLC Setpoint name Name of the setpoint (0..32 characters)
Dimension Dimension of value of the setpoint.
Resolution
Resolution of the value of the setpoint. Resolution adjust number of decimal places
in low and high limit.
Low limit
The lowest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
High limit
The highest value of setpoint. Digit place of this value can be decrease or increase
by resolution of setpoint.
PLC Setpoint 2
6 back to List of setpoints
