InteliLite Global Guide
37
The CAN bus has to be terminated by 120 Ohm resistors at both ends use a cable with following
parameters:
Cable type Shielded twisted pair
Impedance 120 Ω
Propagation velocity ≥ 75% (delay ≤ 4,4 ns/m)
Wire crosscut ≥ 0,25 mm
2
Attenuation (@1MHz) ≤ 2dB/100 m
Note: Communication circuits shall be connected to communication circuits of Listed equipment.

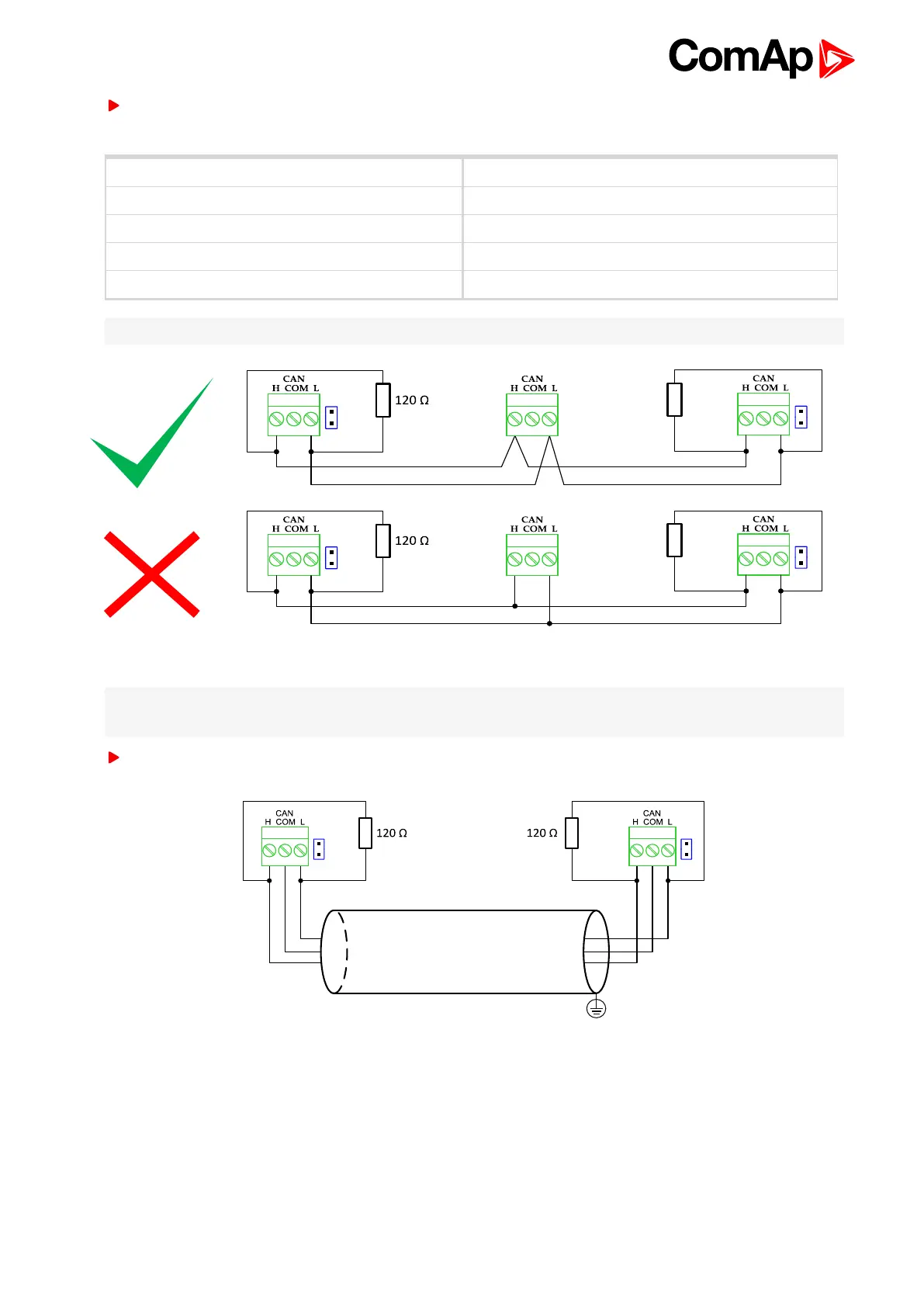

Image 4.14 CAN bus topology
Note: A termination resistor at the CAN is already implemented on the PCB. For connecting, close the jumper
near the appropriate CAN terminal.
For shorter distances (connection within one building)
Image 4.15 CAN bus wiring for shorter distances
