Note: Make sure that your SIM supports the packet data network type you want to use. - i.e. if you want to use
the module in LTE (4G) network you have to confirm with the operator that the particular SIM card supports 4G
network.
Contact your mobile operator for getting packet data APN (APN = Access Point Name), username and
password.
Example: APN Name = "internet", UserName = [blank], Password = [blank].
Make sure SIM card does not require PIN code. Use any mobile phone to switch the SIM PIN security off.
Place the SIM card into slot on CM-4G-GPS card
Connect the antenna to Cellular module antenna connector.
If you want to use the built-in GPS receiver connect also an active GPS antenna to the GPS antenna
connector.
Switch off the controller.
Insert CM-4G-GPS module into controller
Power up the controller.
Select the mode of CM-4G-GPS module by adjusting setpoint Mode.
Enter correct APN Name, APN User Name and APN User Password in controller’s setpoint group CM-4G-
GPS which is accessible by PAGE button from any measurement screen on controller. Setpoints can be set
on controller’s front panel keyboard or by LiteEdit2015.
Switch the controller off and on.
Wait for approx 2 - 4 minutes for first connection of the system to AirGate. AirGate will generate
automatically the AirGate ID value. Then navigate to measurement screens where you will find signal
strength bar and AirGate ID identifier.

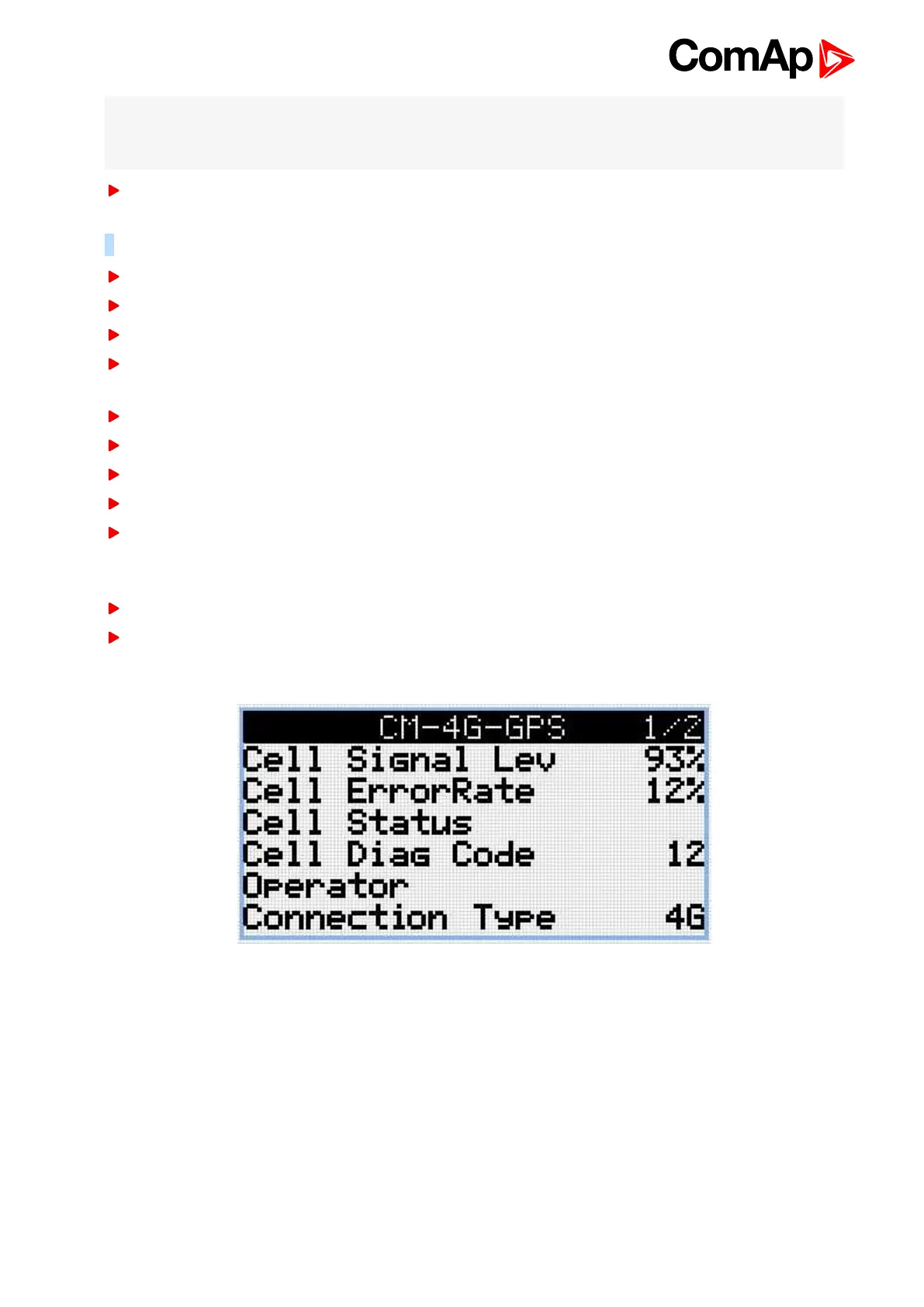

Image 9.23 Main screen of CM-4G-GPS module
