InteliLite Global Guide
623
IMPORTANT: Impulse input is not supported in controller.
Supported sensors
Sensors
User curves NI100 [°F] (fix) 0-5V
PT100 [°C] (fix) NI1000 [°F] (fix) 0-10V
PT1000 [°C] (fix) 0-250ohm 4-20mA passive
NI100 [°C] (fix) 0-2400ohm 4-20mA active
NI1000 [°C] (fix) 0-10k ohm 0-20mA passive
PT100 [°F] (fix) +-1V +-20mA active
PT1000 [°F] (fix) 0-2.4V
CAN address
DIP switch determinates CAN address for analog inputs.
Note: In case of setting the CAN address to zero, the appropriate group of signals is deactivated.

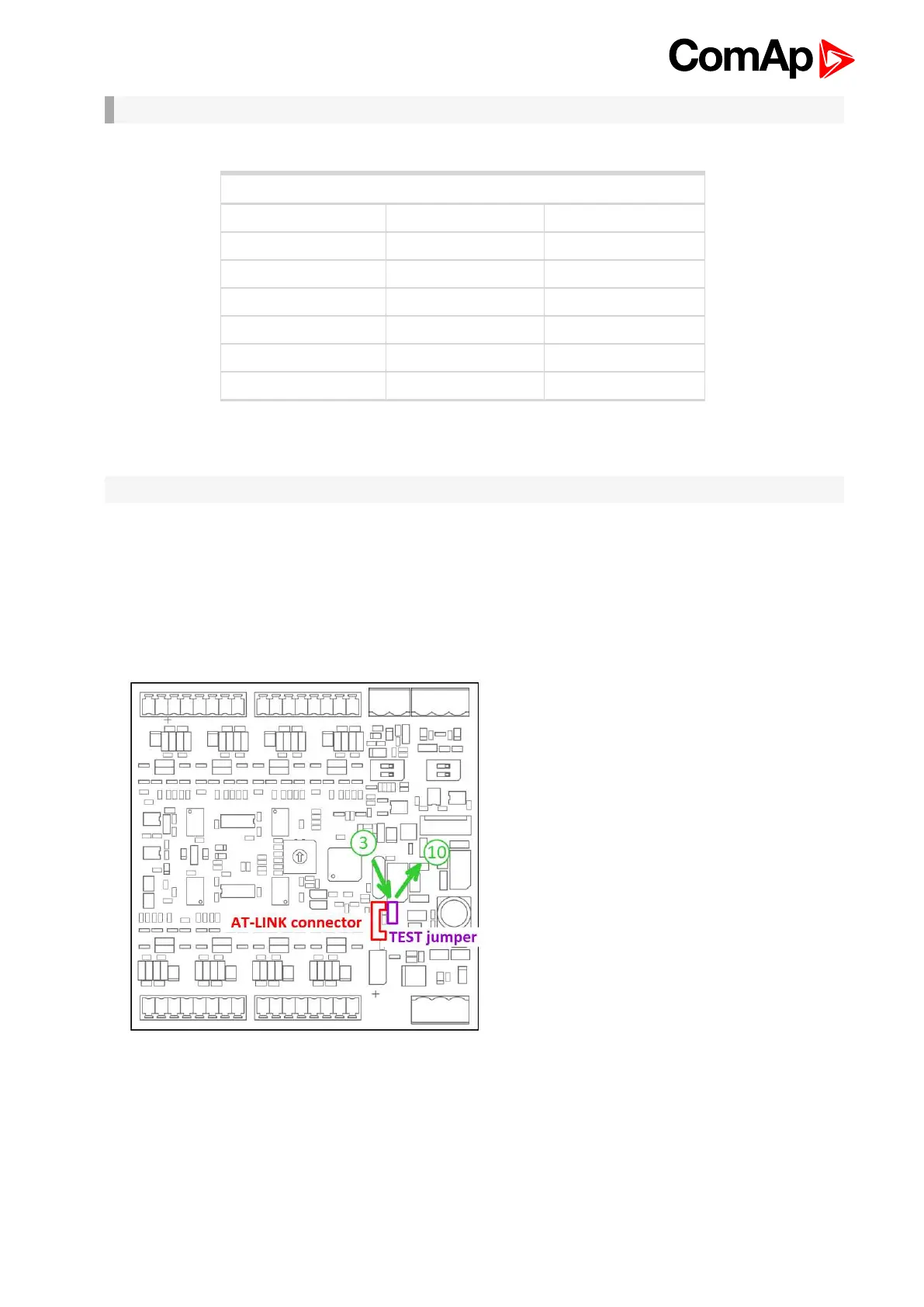

Programming firmware
Firmware upgrade process:
1. Disconnect all terminals from the unit.
2. Separate the top cover of module
3. Put the TEST jumper on a pins
4. Connect the unit with PC via RS232-null modem cable and AT-Link conv
5. Connect power supply of the module (status LED lights continuously)
6. Launch FlashPgr.exe PC software (version 4.2 or higher)
7. In FlashPrg program choose card Inteli AIN8 and load FW for the module
8. Set the proper COM port (connected with the unit) and press Start button
9. Wait till process is done (If the process doesn’t start – after 60 second the “Timeout” will be evaluated. In this
case please check:
