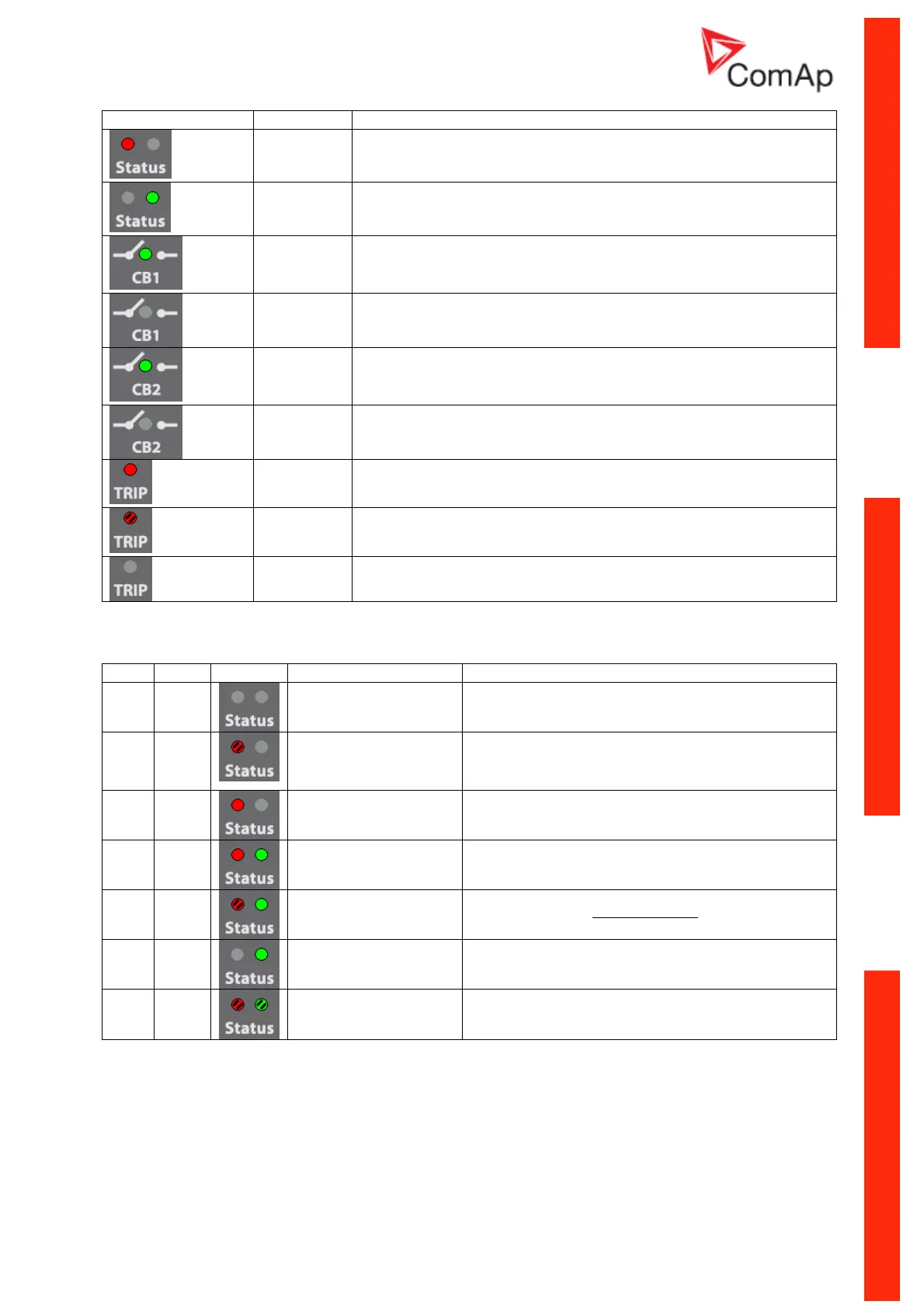

LED state Meaning
(red)
-
Status of the InteliPro unit - used in combination with green LED, see the table below
(green)
-
Status of the InteliPro unit - used in combination with red LED, see the table below
(green)
ON
CB1 feedback - activated - state "I"
OFF
CB1 feedback - deactivated - state "0"
(green)
ON
CB2 feedback - activated - state "I"
OFF
CB2 feedback - deactivated - state "0"
(red)
ON
Indicates TRIP state, measured values are in fault conditions (out of limits)
(red)
blinking
Indicates TRIP state, measured values are in fault-free conditions (within limits)
OFF
The unit is not in TRIP state
Status LED signalization:
red green state Display reading Meaning
OFF OFF
No power supply or PowerFail occured
blink OFF
"Program Corrupted" or
"System Error" or "System
Error + Wrong config
format"
Transient SW failure → Contact technical support with
information abut the display message
ON OFF
Normal reading Wrong checksum of parameters → Check the complete settings
of your unit and change any one of the parameters. If the state
persists, contact technical support
ON ON
Normal reading Wrong checksum of "R" parameters → Contact technical support
blink ON
Normal reading Watchdog reset was performed → Save the archive, contact
technical support and attach the archive
OFF ON
Normal reading Normal operation of the unit
blink blink
Not initialized Unit HW failure → Request repair of the unit
