Binary inputs
Use min. 1 mm
2
cables for wiring of binary inputs.
NOTE:
The name and function or alarm type for each binary input have to be assigned during the
configuration.

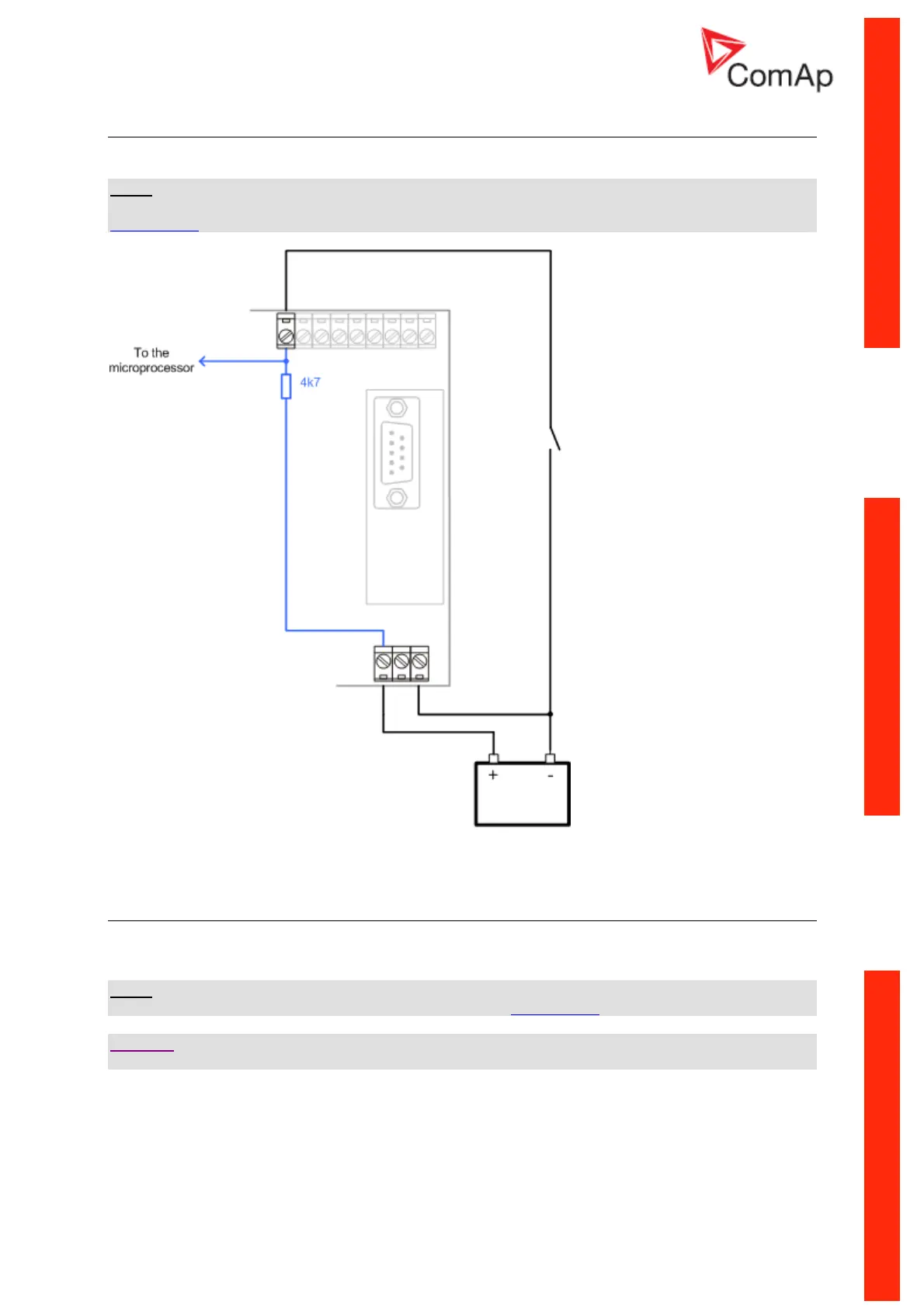

WIRING OF BINARY INPUTS
Binary outputs
Use min. 1 mm
2
cables for wiring of binary outputs. Use external relays as indicated on the schematic
below for all outputs except those where low-current loads are connected (signalization etc..).
NOTE:
The function of each output has to be assigned during the configuration.
CAUTION!
Use suppression diodes on all relays and other inductive loads!
