InteliPro, SW version 1.0, ©ComAp – May 2011
InteliPro Communication Brochure
3-7

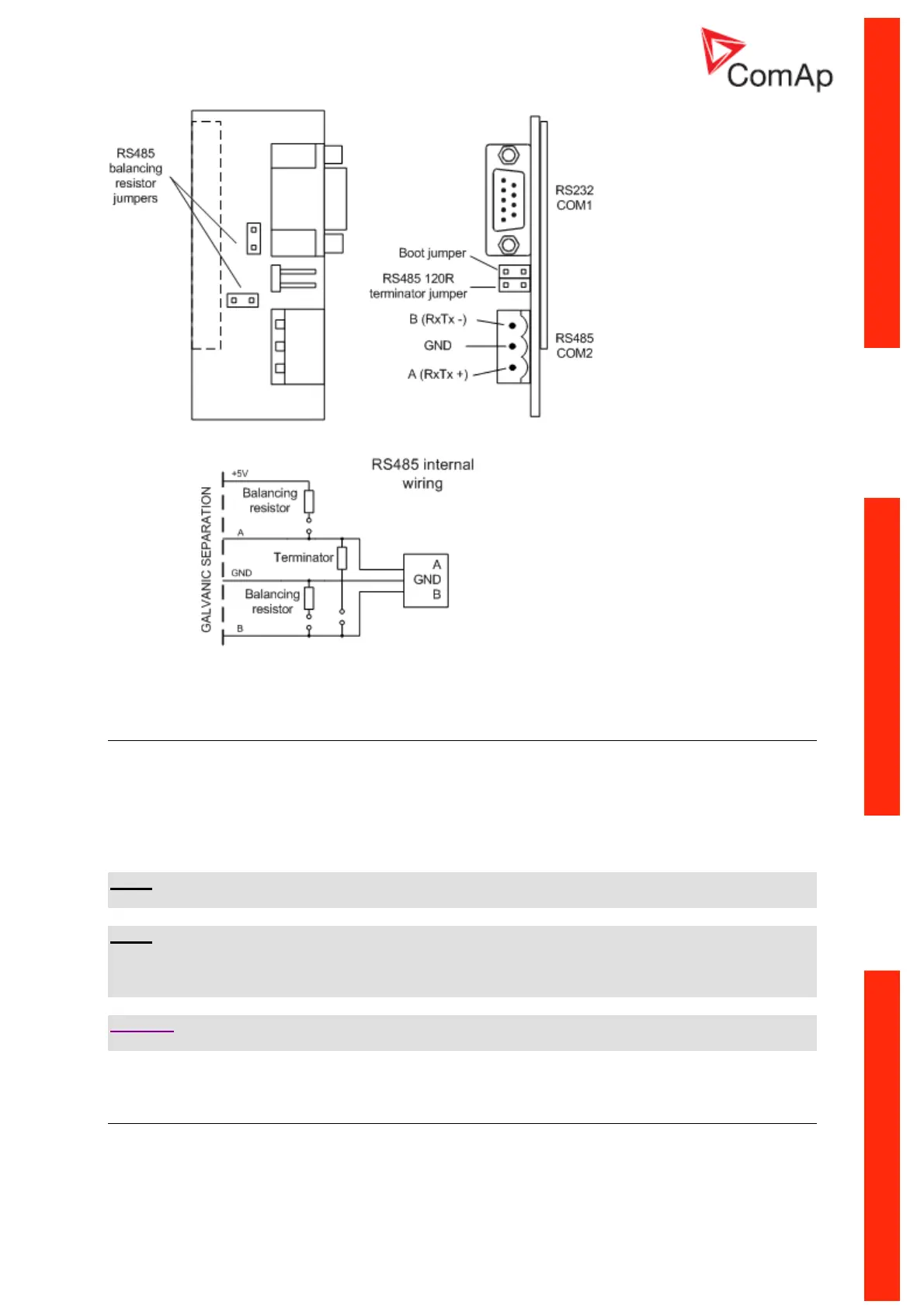

IL-NT-RS232-485 MODULE
IL-NT-S-USB
This module contains USB slave port connected internally to the COM1 of the controller and is
designed as an easy removable service module.
This module requires a FTDI USB Serial converter driver installed in the PC. The driver creates a
virtual serial port (COM) in the PC, which must be used in LiteEdit as communication port when a
connection is beeing opened.
NOTE:
The FTDI driver is installed together with LiteEdit.
NOTE:
When the USB cable from the controller is plugged-in first time into different USB ports on the PC
including USB hubs, it can be recognized as new hardware and the drivers are installed again with
different number of the virtual serial port.
CAUTION!
Use shielded USB cable only!
IB-Lite
IB-Lite is a plug-in module with Ethernet 10/100 Mbit interface in RJ45 connector. The module is
internally connected to both COM1 and COM2 serial channels and provides an interface for
