InteliPro Installation and Operation Guide
1-5

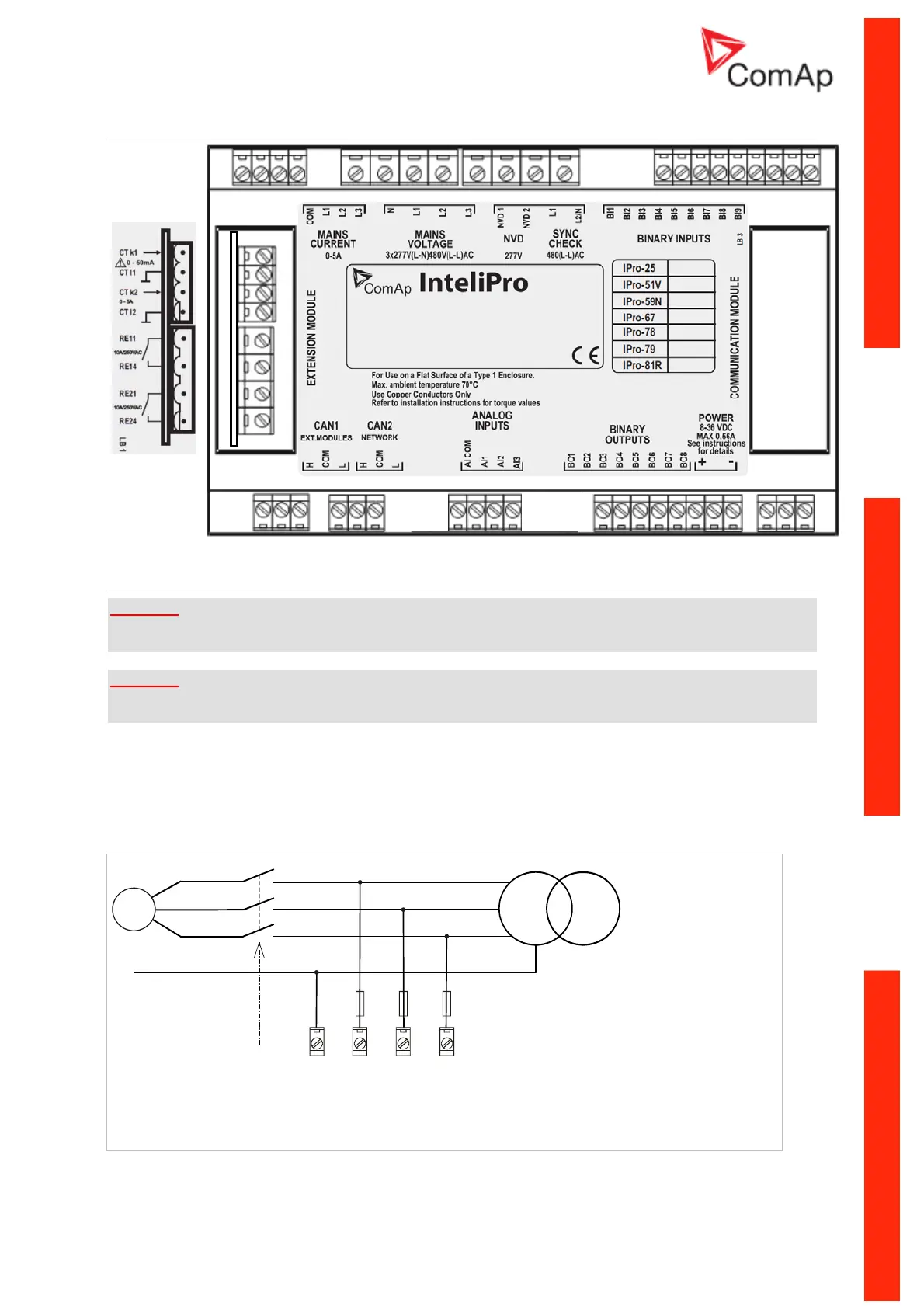

Terminal diagram
Voltage and current inputs
WARNING!
Risk of personal injury due to electric shock when manipulating with voltage terminals under voltage!
Be sure the terminals are not under voltage before touching it.
WARNING!
Do not open secondary circuit of current transformers when primary circuit is closed!!! Open the
primary circuit first!
Use 1.5 mm
2
cables for voltage connection and 2.5 mm
2
for current transformers connection.
Adjust nominal voltage, nominal current, CT ratio and PT ratio by appropriate setpoints in the Basic
Settings group. Learn about how to view and change setpoints in the User interface chapter.
VOLTAGE MEASUREMENT WIRING
MAINS
VOLTAGE
L3L2L1N
L1
L2
L3
N
G
<Comm Trp> /
<Trip 1> /
<Trip 2>
