InteliPro Communication Brochure
3-6
Communication modules
Communication module enables connection of a remote computer or other remote device such as
PLC to InteliPro. The module is to be plugged-in into the slot in the rear side of InteliPro. The slot is
accessible after slot cover is removed.
SLOT FOR COMMUNICATION MODULES
NOTE:
The modules are compatible with ComAp IL-NT and IC-NT controllers.
IL-NT-232
This module contains a RS232 port with all modem signals connected internally to the COM1 of the
controller. DB9M connector is used on the RS232 side.

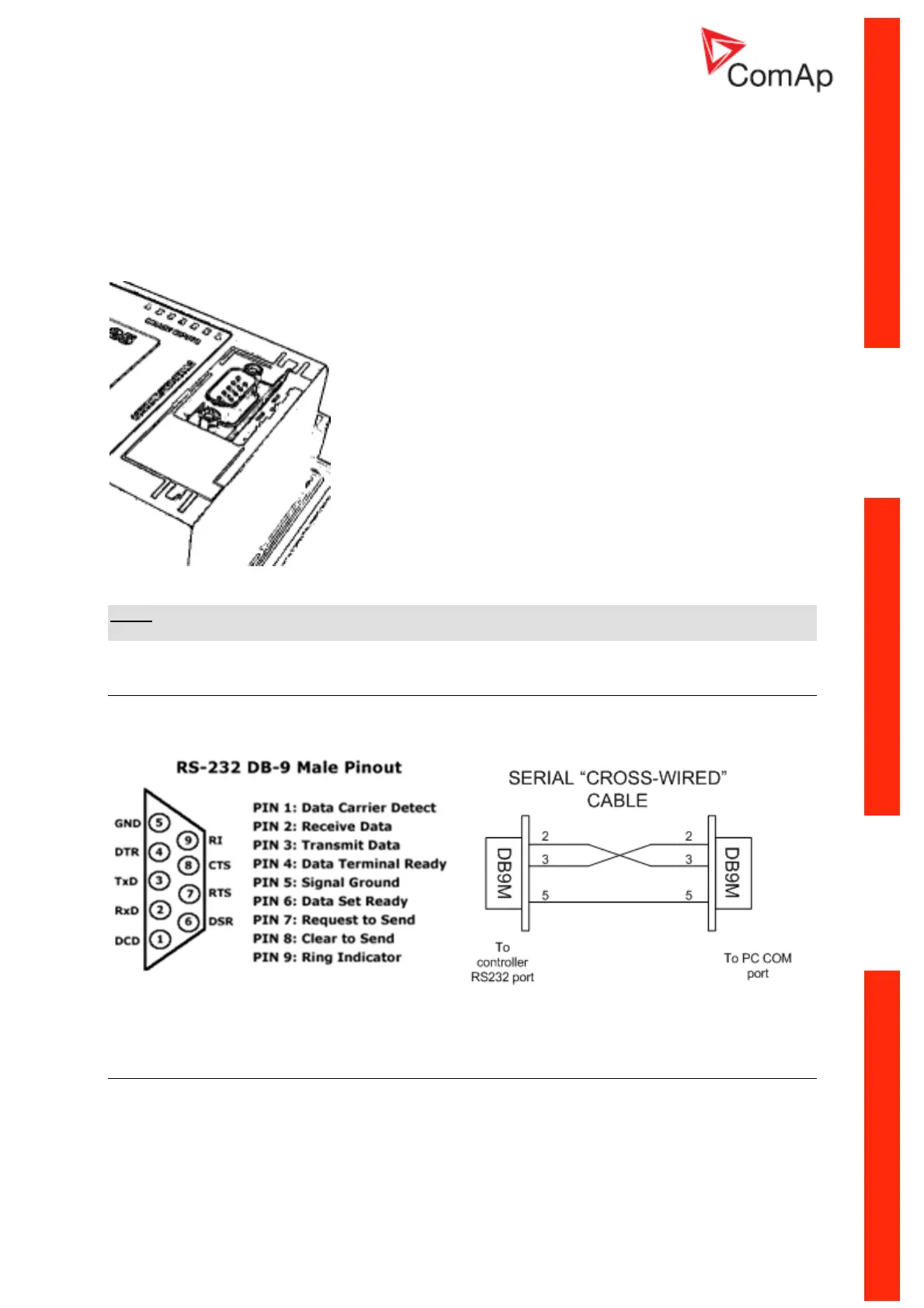

RS232 PINOUT AND CABLE WIRING
IL-NT-RS232-485
The IL-NT-232-485 is a dual port module with RS232 and RS485 interfaces at independent COM
channels. The RS232 is connected to COM1 and RS485 to COM2.
