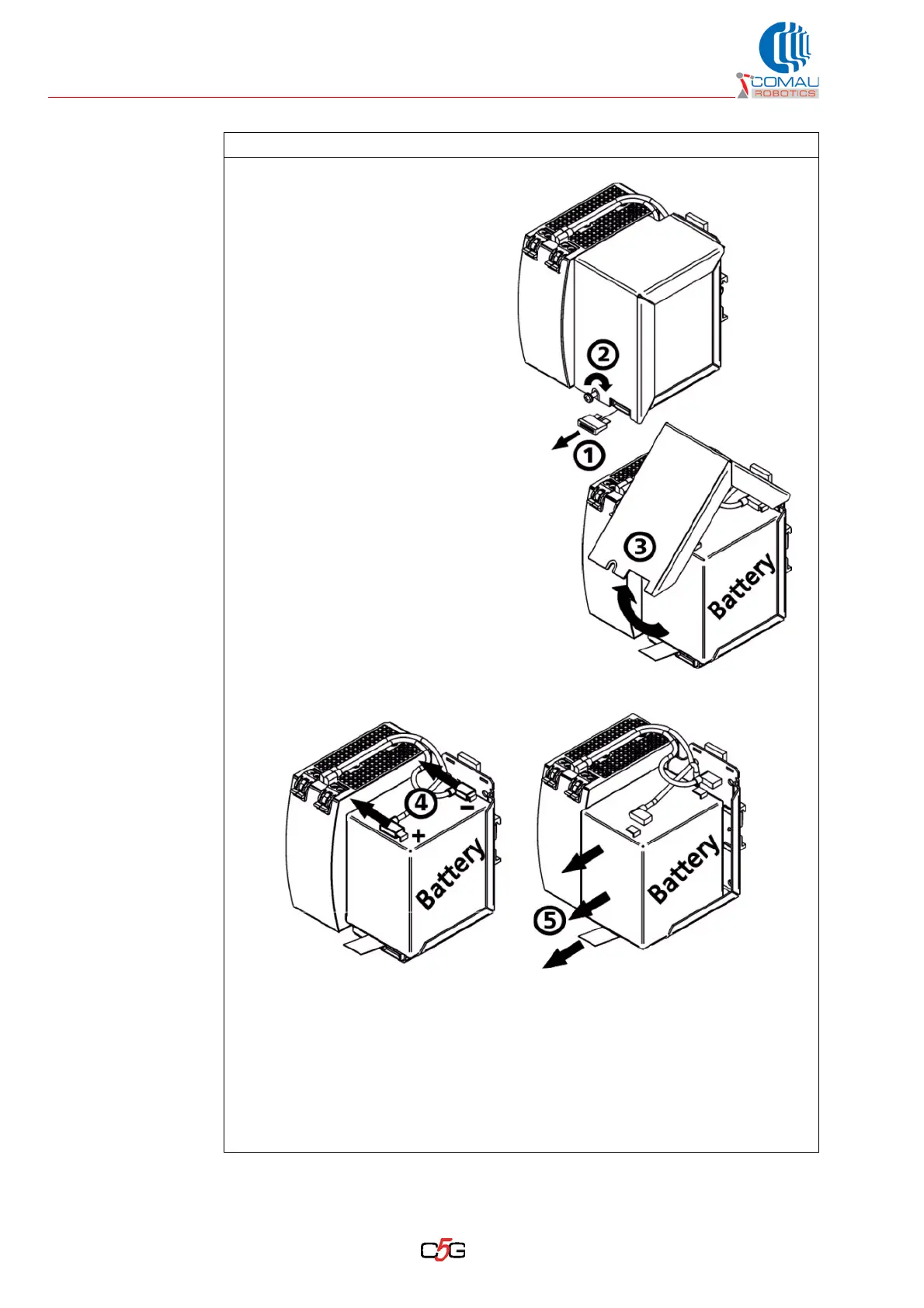

c. Remove the fuse before acting
on the module C5G-UPS (1).
d. Loosen the cover fastening
screw by 4-5 turns (2). If it is not
removed completely, it will be
easier to mount it back.
e. Lift and remove the battery
cover (3).
f. Disconnect (4) the cables from
the battery terminals.
g. Remove the battery by pulling
the tag (5).
h. Fit in the new battery and carry out the steps above in reverse order.
i. Connect the cable according to the polarity.
j. Fasten the cover and fit the slot in the screw pressing slightly.
k. Tighten the screw without overdoing.
l. Fit in the fuse.
Operating procedure (Continued)
