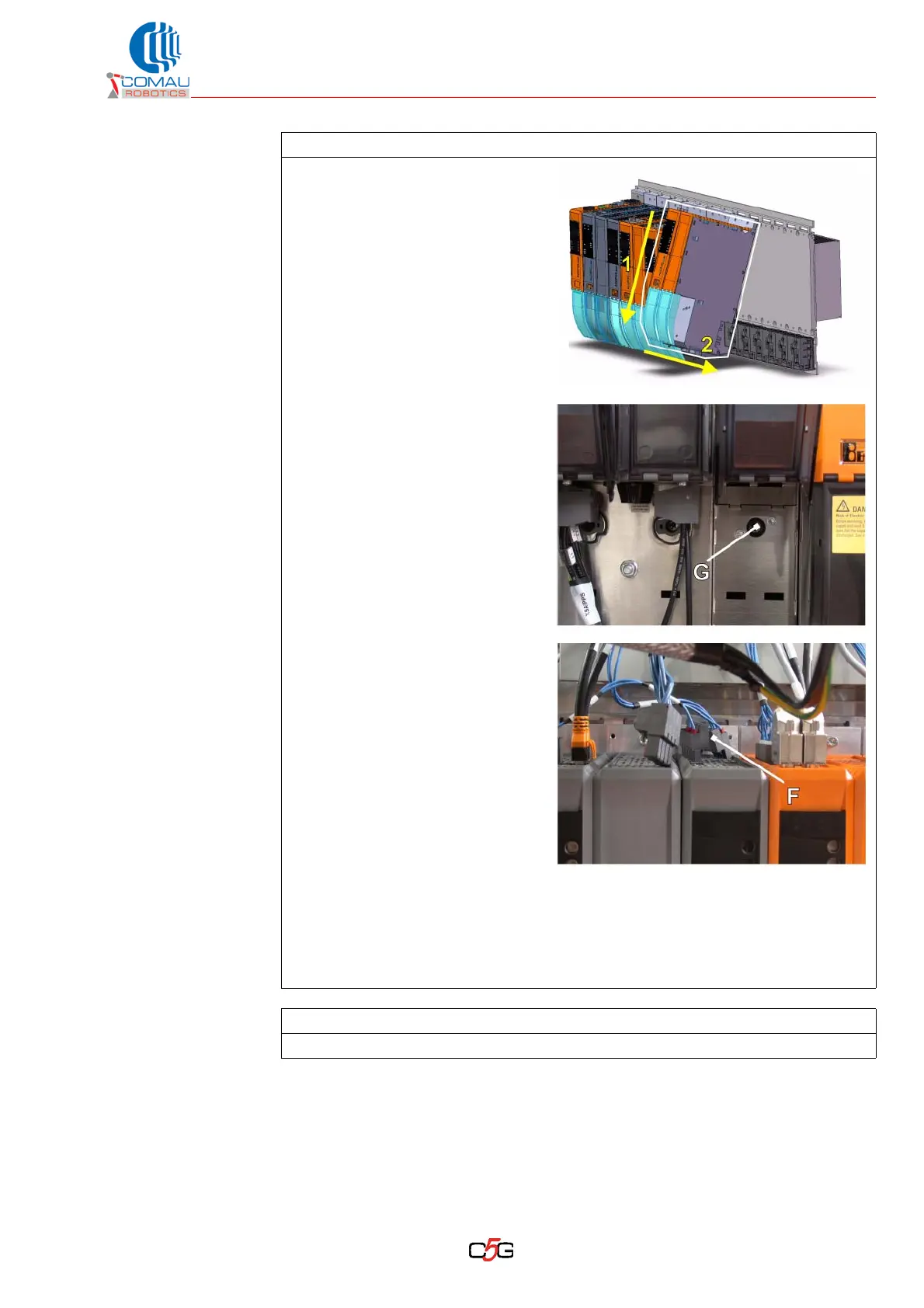

g. Mount the new module in the
slot hooking it first from the
upper part, then lower it while
pushing it against the
dissipator.
h. Tighten the Allen screw (G) by
5 Nm.
i. Tighten the Allen screw (F) by
5 Nm.
j. Place back all connectors (A).
k. If necessary, refer to the connectors and modules table included in the diagram
posted inside the Control Unit door.
l. Lower the lexan lower cover on the module.
Follow-up procedure
– Not required.
Operating procedures (Continua)
